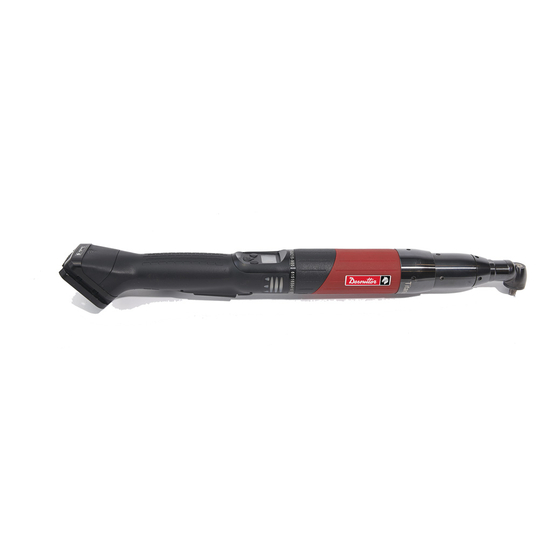

Desoutter EABC15-900 Product Instructions

Cordless angle nutrunner

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Model

EABC15-900

EABC26-560

EABC32-410

EABC45-330

EABC50-450

EABC60-370

EABC75-300

EABC95-240

EABC15-900-eLINK

EABC26-560-eLINK

EABC32-410-eLINK

EABC45-330-eLINK

EABC50-450-eLINK

EABC60-370-eLINK

EABC75-300-eLINK

EABC95-240-eLINK

Download the latest version of this document at

http://www.desouttertools.com/info/6159929440_EN

Read all safety warnings and instructions

Failure to follow the safety warnings and instructions may result in

electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference

Cordless Angle Nutrunner

Product Instructions

Part number

6151658410

6151658420

6151658430

6151658440

6151658450

6151658460

6151658470

6151658480

6151660500

6151660510

6151660520

6151660530

6151660540

6151660550

6151660560

6151660570

WARNING

Printed Matter No. 6159929440_EN

Issue No.

Date

07/2020

Page

1 / 28

Table of Contents

Need help?

Do you have a question about the EABC15-900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Desoutter EABC15-900

Page 1 Printed Matter No. 6159929440_EN Issue No. Date 07/2020 Page 1 / 28 Cordless Angle Nutrunner Product Instructions Model Part number EABC15-900 6151658410 EABC26-560 6151658420 EABC32-410 6151658430 EABC45-330 6151658440 EABC50-450 6151658450 EABC60-370 6151658460 EABC75-300 6151658470 EABC95-240 6151658480 EABC15-900-eLINK 6151660500 EABC26-560-eLINK 6151660510...
Page 2: Table Of Contents
Table of Contents Product Information .......................... 4 General Information......................... 4 Warranty.......................... 4 Website .......................... 4 Information about spare parts .................... 4 Dimensions (mm) ......................... 4 CAD files .......................... 6 Overview ............................ 6 General overview ......................... 6 Product description ...................... 7 Technical data........................ 7 Accessories.......................... 9 WI-FI settings ........................ 9 Default tool Ethernet configuration.................. 11 Installation............................ 12 Installation Instructions........................ 12 Inserting the battery pack.................... 12...
Page 3 What if the tool is locked ....................... 25 List of user infos related to the tools.................... 25 07/2020 3 / 28...
Page 4: Product Information
• The product warranty relies on the correct use, maintenance, and repair of the tool and its component parts. • Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Desoutter or their Certified Service Partners during the warranty period is not covered by the warranty.
Page 5 Product Information 45-330 50-450 60-370 75-300 95-240 Model 15-900 1/4" 26-560 3/8" 32-410 3/8" 45-330 3/8" 50-450 3/8" 60-370 1/2" 75-300 1/2" 95-240 1/2" EABC e-LINK Model ØA ØB 15-900 26-560 32-410 45-330 50-450 60-370 75-300 95-240 Model ØC 15-900 1/4"...
Page 6: Cad Files
EABC tools are wireless angle-head nutrunners. e-LINK models can be equipped with a barcode reader or a tracker. They are hand-held by the operator and powered by a Desoutter battery pack. On delivery, the tool display is protected by a password.
Page 7: Product Description
Product Information Product description Output drive Reporting LEDs Trigger Battery footprint Display Programming buttons Reverse button Communication module eLINK module Front light Technical data Voltage (V) 36 V Output drive Model Type EABx 15-900 Sq. 1/4" EABx 26-560 Sq. 3/8" EABx 32-410 Sq.
Page 8 Product Information Model Type EABx 95-240 Sq. 1/2" EABx stands for EAB/EABA/EABC. Torque range (Nm) Model Min. / Nominal / Max. EABx 15-900 5 / 13 / 15 EABx 26-560 5 / 24 / 26 EABx 32-410 7 / 30 / 32 EABx 45-330 9 / 40 / 45 EABx 50-450...
Page 9: Accessories
Battery pack 18 V 2.5 Ah 6158132660 Battery pack 36 V 2.5 Ah 6158132670 Battery pack charger 6158132700 Optional accessories eDOCK 6158119760 WI-FI settings Item Desoutter default parameter Other possible values Network name (SSID) Desoutter_1 String of 255 characters 07/2020 9 / 28...
Page 10 Product Information Item Desoutter default parameter Other possible values Security type WPA/WPA2 PSK Open Shared secret LEAP PEAP EAP/TLS Encryption type AES/CCMP none WEP64 WEP168 TKIP Security key mydesoutter_1 String of 255 characters Regulatory domain Worldwide ETSI (Europe) FCC (America)
Page 11: Default Tool Ethernet Configuration
North America Europe Japan Worldwide U-NII-1 U-NII-2 U-NII-2 Ext U-NII-3 Default tool Ethernet configuration Item Desoutter default parameter Other possible values Allocation method for IP address Static Keep original IP address DHCP IP address 192.168.5.221 Refer to local settings Subnet mask 255.255.255.0...
Page 12: Installation
Installation Installation Installation Instructions Inserting the battery pack Insert the battery pack in front or behind the tool until a locking sound can be clearly heard. There is no ON/OFF switch: the tool is ready to operate as soon as a battery pack is mounted. When the tool is powered on, tool LEDs are blinking.
Page 13: Operation
Operation Operation Configuration Instructions How to configure the tool P 0 0 2 To o l L o c k e d Icons and buttons The password is enabled. The password is disabled. Press the button "Validate/Run reverse". Press the right button. Press the left button.
Page 14 Operation How to disable the passwords On delivery, passwords are enabled (1 by default). Pset and Maintenance passwords are used to protect settings against hazardous changes. A red padlock is displayed on the top line of the main screen. Press this button during 2 seconds. Press this button to reach Configuration.
Page 15 Operation • Nm • ft.lb • in.lb • kg.m • kg.cm • oz.in • dNm On tool delivery, the torque unit is set to "Nm" by default. Go to CVI CONFIG to change the torque unit. Click this icon to update the product. How to set up the reverse mode On tool delivery, the "Reverse"...
Page 16: How To Change Network Parameters
Operation Tick Standalone. Click Write to tool. Click File > Exit to quit. How to set up parameters Plug the eDOCK to the tool and connect it to the USB port of the computer where CVI CONFIG is installed. Launch CVI CONFIG. Go to the tree view area.
Page 17: How To Set Up Psets And Assembly Processes
Operation Check that IP address, subnet mask and port number of the controller/hub are compatible. Click this icon to write the new parameters into the tool. Via Easy Pairing When the pairing is done to CONNECT via RFID, WI-FI settings are directly written to the tool. Network settings must have been done previously by using CVI CONFIG.
Page 18 Operation Icon status Description Pset 2 is the next Pset to run. The tool is ready to start. There is no Pset selected. The tool is locked. Select a Pset. Pset 4 is selected. The tool is locked. The tool may be expecting an external order. How to select the Assembly Process to run Go to CVI CONFIG.
Page 19 Operation LED color Description Action to do Yellow Incomplete rundown Tighten again. Yellow and red (orange) Reject report Loosen and tighten again. Above max. limits Remove and replace the fastener. How to have the batch count on the tool display Go to the system/tightening unit/tool settings.
Page 20 Operation Run reverse button Press this button. Red and green LEDs are blinking alternatively. Apply the tool to the fastener and press the trigger. How to smooth the tool stop The "Ergostop" function must be disabled for tightening tests or certification on tightening benches. Ergostop allows a smoother tool stop to reduce the torque reaction on the operator.
Page 21: Service
Service Service Tool information from tool display Go to "Maintenance/Tool" menu to get the following information: Total counter Number of tightenings since the manufacturing of the tool. Battery The current voltage value is displayed. The "Low battery" message is displayed when lower than 32 At 31 V, the tool stops.
Page 22: Instructions For Transducerized Tools
Service Right hand thread When reassembling: Apply the recommended glue. Tighten to the required torque. Lubricate with the required grease or oil. Do not apply too much grease on gears or bearings; a thin coat shall be sufficient. Instructions for transducerized tools •...
Page 23: Calibration Via Tool Display
This function is set in the "Maintenance" menu. Enter the Maintenance password in the "Configuration" menu. Insert a torque transducer in line with the tool and connect it to any measuring unit from the Desoutter range. Go to "Maintenance/Calibration". Select the number of tightenings required to execute the calibration and press OK.
Page 24: Motor Align
It is mandatory to calibrate the tool equipped with the fixed accessory before use. Upgrading tool firmware Click this icon. Click Upgrade tool firmware. Contact your Desoutter representative to get the last firmware version. Follow the instructions on screen. 24 / 28 07/2020...
Page 25: Troubleshooting
Try first to wake up the tool. LEDs are turned on. The tool is not able Replace the battery pack. to start. Contact your Desoutter representative to get more information and support. List of user infos related to the tools Number Description...
Page 26 2- Check the tool cable is not damaged. W212 Result not stored 1- It is not possible to store the tightening result in the system. 2- Contact your Desoutter representative for support. W216 Current high 1- Maximum current exceeded. 2- Contact your Desoutter representative for support.
Page 27 2- Replace the battery pack or your configuration. E223 Drive init error 1- Software failure. 2- Restart the system. 3- If the problem occurs again, contact your Desoutter representative for support. E227 Motor stalled 1- Motor stalled (could be missing phase, wrong motor tune or power electronics failure) 2- Try once again.
Page 28 Original instructions Founded in 1914 and headquartered in France, Desoutter Industrial Tools is a global leader in electric and pneumatic assembly tools serving a wide range of assembly and manufacturing operations, including Aerospace, Automotive, Light and Heavy Vehicles, Off-Road, General Industry.
