Desoutter EPB Series Manual

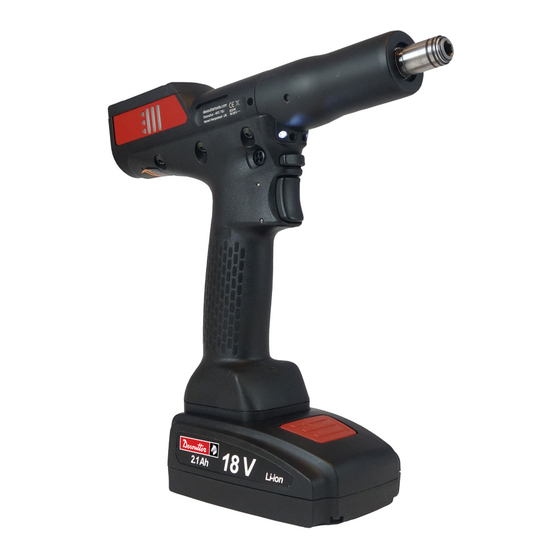

Stand-alone battery nutrunner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EPB/EPBA stand-alone battery nutrunner
Model
EPB8-1800-10S
EPB8-1800-4Q
EPB14-900-10S
EPB14-900-4Q
EPB17-700-10S
EPB17-700-4Q
EPBA8-1800-10S
EPBA8-1800-4Q
EPBA14-900-10S
EPBA14-900-4Q
EPBA17-700-10S
EPBA17-700-4Q
WARNING
Read all safety warnings (including the ones of the separately provided safety
instructions n° 6159930690) and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
AVERTISSEMENT
Lire l'ensemble des mises en garde de sécurité (y compris celles sur la notice de
sécurité n° 6159930690 fournie à part) ainsi que l'ensemble des consignes. Le non-
respect des mises en garde et des consignes peut entraîner un choc électrique, un
incendie ou des blessures graves.
Conserver l'ensemble des mises en garde et consignes pour pouvoir les consulter
ultérieurement.
ADVERTENCIA
Lea todas las advertencias de seguridad (incluyendo las contenidas en las
instrucciones de seguridad n° 6159930690 suministradas por separado) y las
instrucciones. El incumplimiento de las instrucciones y advertencias de seguridad
puede producir descargas eléctricas, incendios y/o lesiones personales graves.
Guarde todas las instrucciones y advertencias para futuras consultas.
WARNUNG
Alle Sicherheitshinweise (einschließlich der separat bereitgestellten
Sicherheitsvorschriften Nr. 6159930690) und alle Anweisungen lesen. Eine
Nichtbeachtung der Hinweise und Anweisungen kann zu Stromschlägen, Bränden
und/oder schweren Personenschäden führen.
Bewahren Sie alle Warnhinweise und Anweisungen zur künftigen Verwendung auf.
AVVERTENZA
Leggere tutti gli avvisi di sicurezza (inclusi quelli indicati sulle istruzioni di sicurezza
n. 6159930690 fornite separatamente) e tutte le indicazioni di sicurezza. Il mancato
rispetto degli avvisi e delle istruzioni può provocare scosse elettriche, incendi e/o
gravi lesioni.
Conservare tutti gli avvisi e le istruzioni per consultazioni future.
Part number
Series
6151659030
C
6151658990
C
6151659770
C
6151659780
C
6151659010
B
6151659050
B
6151659710
C
6151659720
C
6151659730
C
6151659740
C
6151659750
B
6151659760
B
WARNING
Part no
6159920260
Issue no 05
Date
04/2015
Page
1 / 76
24
26
28
30
32
www.desouttertools.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Desoutter EPB Series

Summary of Contents for Desoutter EPB Series

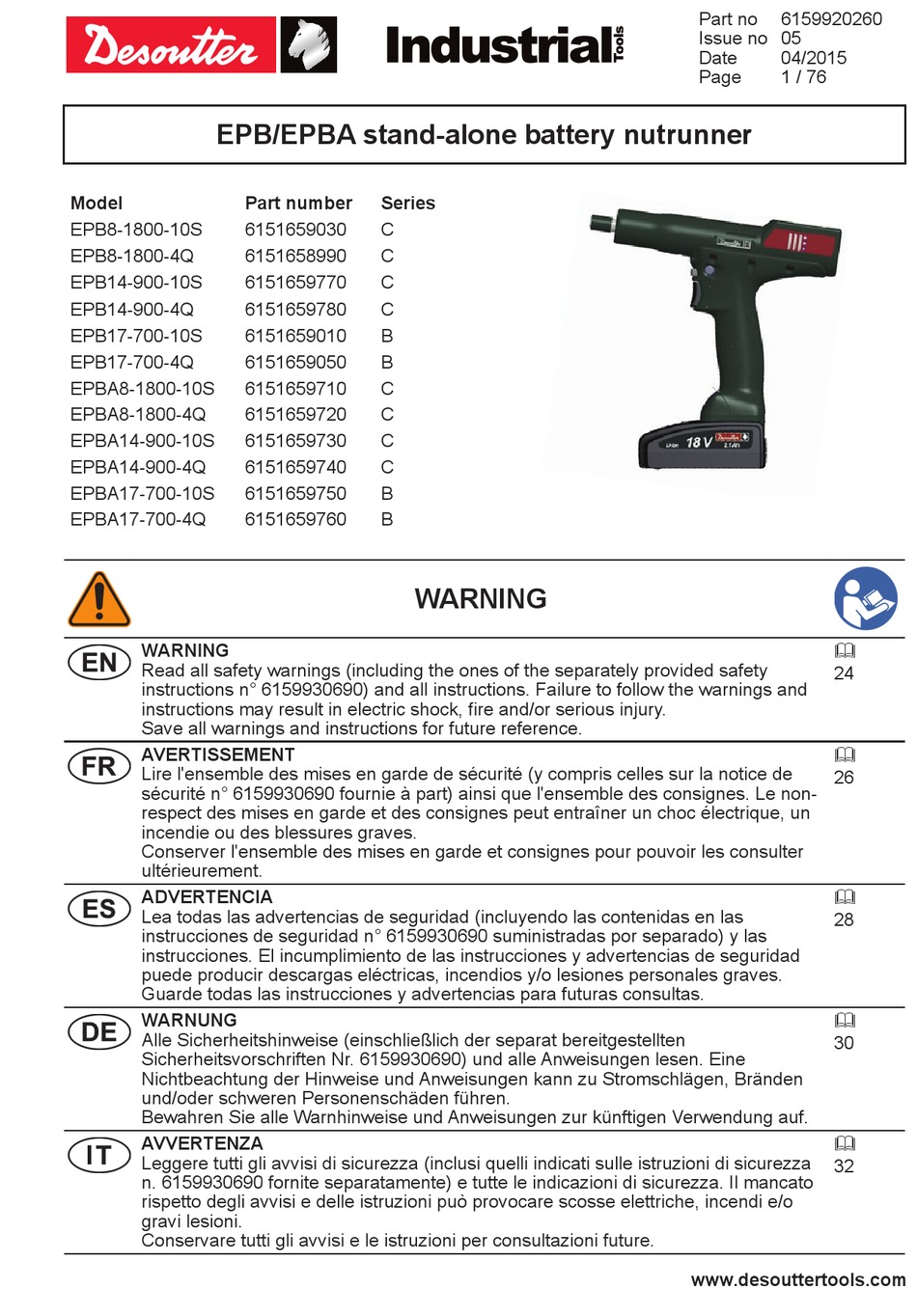

  • Page 1 Part no 6159920260 Issue no 05 Date 04/2015 Page 1 / 76 EPB/EPBA stand-alone battery nutrunner Model Part number Series EPB8-1800-10S 6151659030 EPB8-1800-4Q 6151658990 EPB14-900-10S 6151659770 EPB14-900-4Q 6151659780 EPB17-700-10S 6151659010 EPB17-700-4Q 6151659050 EPBA8-1800-10S 6151659710 EPBA8-1800-4Q 6151659720 EPBA14-900-10S 6151659730 EPBA14-900-4Q 6151659740 EPBA17-700-10S 6151659750 EPBA17-700-4Q...
  • Page 2 6159920260_05_ ALERTA  Leia todas as instruções e avisos de segurança (inclusive as que são fornecidas separadamente, n° 6159930690). A falha em seguir os avisos e instruções pode resultar em choque elétrico, incêndio e/ou lesão grave. Guarde todos os alertas e instruções para referência futura. VAROITUS ...
  • Page 3 6159920260_05_ IDENTIFICATION Year XXBXXXXX Serial no.: Series Product number Tool model Tool part number Manufacturing Tool speed date TECHNICAL DATA Torque Rotational max. (18V 2.1Ah minimum) speed Weight Voltage Model Part number Ouput Min. Nominal Max. battery battery EPB8-1800-10S 6151659030 Sq.
  • Page 4 6159920260_05_ DIMENSIONING Model Part number All models 8.94 1.26 8.11 1.50 Software and documentation available at: http://resource-center.desouttertools.com Find more information and your Desoutter contacts on: www.desouttertools.com 04/2015 5 / 76...

  • Page 5: Tool Description

    6159920260_05_ TOOL DESCRIPTION SCREEN AND BUTTONS LEDS COLOR CODE 6 / 76 04/2015...
  • Page 6 6159920260_05_ ACCESSORIES INCLUDED PROTECTIVE COVER Part number: 6152110220 OPTIONAL ACCESSORIES SIDE HANDLE Assy by Hand Part number: 6153970160 04/2015 7 / 76...

  • Page 7: General View

    6159920260_05_ GENERAL VIEW Loctite 243 +/- 15% 50 Nm 0.8 Nm 3 mm³ 0.35 Nm 15 Nm Assy by Hand 8 / 76 04/2015...
  • Page 8 6159920260_05_ GENERAL VIEW Loctite 243 +/- 15% Assy by Hand 2.5 Nm 9 mm³ 4 Nm 6 mm³ 0.8 Nm 0.8 Nm 04/2015 9 / 76...

  • Page 9: Item Description

    6159920260_05_ Gearbox kits - 4Q Item Description Part number Wear Gearbox EPB8 kit 6153984945 Gearbox EPB14 kit 6153988495 Gearbox EPB17 kit 6153984965 Gear ring 6154760980 Insertion ring kit 6153986220 Insertion ring Snap ring 10 / 76 04/2015...
  • Page 10 6159920260_05_ Item Description Part number Wear Housing front kit 6153986230 Housing front Spacer 30.6X25.5X3.95 O-ring Gearbox service kit 6153986240 Bearing Circlip Circlip O-ring 25X1 Satellite protection ring Output stage kit 6153986250 Output shaft R4 Bearing roller Output stage kit 6153986260 Output shaft R5 Needle roller A51 Output planet kit...
  • Page 11 6159920260_05_ Gearbox kit - 10S Item Description Part number Wear Gearbox EPB8 kit 6153984935 Gearbox EPB14 kit 6153988485 Gearbox EPB17 kit 6153984955 Gear ring 6154760980 Insertion ring kit 6153986220 Insertion ring Snap ring 12 / 76 04/2015...
  • Page 12 6159920260_05_ Item Description Part number Wear Housing fro nt kit 6153986230 Housing front Spacer 30.6X25.5X3.95 O-ring Gearbox service kit 6153986240 Bearing Circlip Circlip O-ring 25X1 Satellite protection ring Output stage kit 6153986290 Output shaft 3/8 R4 Bearing roller Output stage kit 6153986300 Output shaft 3/8 R5 Needle roller...
  • Page 13 6159920260_05_ Display kit Item Description Part number Wear Display kit 6153984435 1 1 1 1 1 1 1 1 1 1 1 1 Display and buttons module - 1 1 1 1 1 1 1 1 1 1 1 1 Screw 4 4 4 4 4 4 4 4 4 4 4 4 B1 Housing display kit...
  • Page 14 6159920260_05_ Cover plate kit Item Description Part number Wear Cover plate kit 6153986330 1 1 1 1 1 1 1 1 1 1 1 1 Guide light 2 2 2 2 2 2 2 2 2 2 2 2 Cover plate 2 2 2 2 2 2 2 2 2 2 2 2 Front LED PCB kit Item...
  • Page 15 6159920260_05_ Reverse button kit Item Description Part number Wear Reverse button kit 6153986350 1 1 1 1 1 1 1 1 1 1 1 1 Spacer reverse 1 1 1 1 1 1 1 1 1 1 1 1 Washer 1 1 1 1 1 1 1 1 1 1 1 1 Reverse female magnet 1 1 1 1 1 1 1 1 1 1 1 1...

  • Page 16: Connector Kit

    6159920260_05_ Connector kit Item Description Part number Wear Connector kit 6153986360 1 1 1 1 1 1 1 1 1 1 1 1 Cover 1 1 1 1 1 1 1 1 1 1 1 1 Housing 1 1 1 1 1 1 1 1 1 1 1 1 Screw TORX M3 2 2 2 2 2 2 2 2 2 2 2 2 Footprint kit...

  • Page 17: Handle Kit

    6159920260_05_ Handle kit Item Description Part number Wear Handle kit 6153986380 1 1 1 1 1 1 1 1 1 1 1 1 Handle magnet assy 1 1 1 1 1 1 1 1 1 1 1 1 Warning label 1 1 1 1 1 1 1 1 1 1 1 1 Screw HEX M4 6 6 6 6 6 6 6 6 6 6 6 6...
  • Page 18 6159920260_05_ PCB main to display cable kit Item Description Part number Wear PCB main to display 6159175790 1 1 1 1 1 1 1 1 1 1 1 1 cable kit Cable 1 1 1 1 1 1 1 1 1 1 1 1 Cable tie 1 1 1 1 1 1 1 1 1 1 1 1 Speaker kit...
  • Page 19 6159920260_05_ PCB main kit Item Description Part number Wear EPB PCB tool module kit 6153987210 1 1 1 1 1 1 PCB main & cover assy 1 1 1 1 1 1 Cable tie 1 1 1 1 1 1 O-ring 2 2 2 2 2 2 Firmware...
  • Page 20 6159920260_05_ Transducer kit Item Description Part number Wear Transducer kit 6155961815 Transducer Transducer kit 6155680225 1 1 1 1 1 1 1 1 Transducer 1 1 1 1 1 1 1 1 Motor coupling sleeve kit Item Description Part number Wear Motor coupling sleeve kit 6153977265 Motor coupling sleeve kit 6153977275...
  • Page 21 6159920260_05_ Rear nut kit Item Description Part number Wear Rear nut kit 6156701015 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 O-ring 1 1 1 1 1 1 1 1 1 1 1 1 Motor kit Item Description...

  • Page 22: Cover Kit

    6159920260_05_ Cover kit Item Description Part number Wear Cover kit 6152110185 1 1 1 1 1 1 1 1 1 1 1 1 Cover 1 1 1 1 1 1 1 1 1 1 1 1 Screw 2 2 2 2 2 2 2 2 2 2 2 2 04/2015 23 / 76...

  • Page 23: Statement Of Use

    6. Battery footprint well upon the exposure time and the physical 7. Reverse button condition of the user. We, Desoutter, cannot be held liable for the SCREEN AND BUTTONS consequences of using the declared values, instead of values reflecting the actual exposure, 1.

  • Page 24: Installation

    OPERATING MODE vibration and in the full cancellation of the When the tool is powered on, the Desoutter logo manufacturer’s liability. is displayed and the LEDs are blinking. ● Wait for a few seconds while the software is According to Directive 2012/19/ being initialized.
  • Page 25 (Fr) DECLARATION DE CONFORMITE (2) We : (3) Technical file available from EU headquarter. (Fr) Nous (Fr) Dossier technique disponible auprès du siège social Desoutter Ltd Nicolas Lebreton, R&D Manager Zodiac – Unit 4 Boundary Way 38 rue Bobby Sands – BP 10273 Hemel Hempstead 44818 Saint Herblain –...
