Valid from Serial No. 23A0000100S to 24A9999999S
Model
EIDS2-2080-4Q
EIDS7-2080-4Q
EIDS12-1120-4Q
EIDS17-830-4Q
EIDS25-540-10S
Download the latest version of this document at
www.desouttertools.com/info/6159990730
To reduce risk of injury, everyone using, installing, repairing, main-
taining, changing accessories on, or working near this tool MUST
read and understand these instructions before performing any such
task.
DO NOT DISCARD - GIVE TO USER

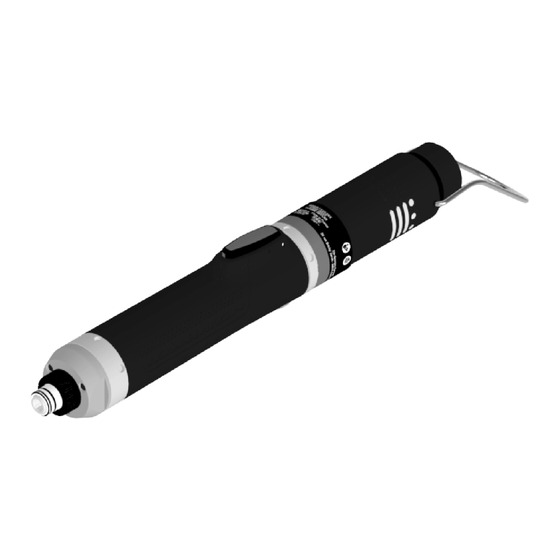

Electric screwdriver
Safety Information
Part number
6151663320
6151663330
6151663340
6151663350
6151663360
WARNING
Printed Matter No. 6159990730
Issue No.
01
Date
01/2024
Page
1 / 12
Advertisement
Table of Contents
Related Manuals for Desoutter EIDS2-2080-4Q
Summary of Contents for Desoutter EIDS2-2080-4Q
- Page 1 Issue No. Date 01/2024 Page 1 / 12 Electric screwdriver Safety Information Valid from Serial No. 23A0000100S to 24A9999999S Model Part number EIDS2-2080-4Q 6151663320 EIDS7-2080-4Q 6151663330 EIDS12-1120-4Q 6151663340 EIDS17-830-4Q 6151663350 EIDS25-540-10S 6151663360 Download the latest version of this document at www.desouttertools.com/info/6159990730...
- Page 2 Schema 1 ØA ØB Model EIDS2-2080-4Q EIDS7-2080-4Q EIDS12-1120-4Q EIDS17-830-4Q EIDS25-540-10S Length (mm) Length (inch) 11.7 11.7 11.7 11.7 Length [Lc] (mm) 30.3 30.3 30.3 30.3 30.3 Length [Lc] (inch) Height (mm) Height (inch) Height [C-C] (mm) 28.6 28.6 28.6 28.6 28.6...
- Page 3 Schema 3 Schema 4 6159990730 / v.01 3 / 12...
- Page 4 Table of Contents Technical Data .................... 5 Technical data ..................... 5 Voltage ..................... 5 Power consumption ................ 5 Output drive .................. 5 Torque range (Nm) ................ 5 Rated speed (rpm) ................ 5 Storage and use conditions.............. 5 Declarations ....................... 5 Liability...................... 5 Noise and Vibration Declaration Statement.......... 5 WEEE ...................... 6 Information Regarding Article 33 in REACH.......... 6 Regional Requirements ................ 6 Safety ........................ 6 Intended Use .................... 6...
-
Page 5: Technical Data
Power consumption sult. Examples of such events include but are not limited to: Model • initial installation of the tooling system EIDS2-2080-4Q • change of part batch, bolt, screw batch, tool, software, EIDS7-2080-4Q configuration or environment EIDS12-1120-4Q •... - Page 6 List. Indoor use only. In accordance with the above this is to inform you that certain This product must be only used with Desoutter authorized ca- electrical and mechanical components in the product may bles. contain lead metal. This is in compliance with current sub-...
-
Page 7: Safety Information
Clean parts with a damp cloth. Only use water, no cleansers Tool cables containing solvents should be used. Length (m) Length (ft) Part number Contact your Desoutter service technician for cleaning advice as per current recommendations and for your particular tool. 8.20 6159176010 16.0 6159176020 Reversing the rotation 32.8... -
Page 8: Signs And Stickers
Safety Information • Do not let familiarity gained from frequent use of Electrical safety tools allow you to become complacent and ignore tool • Power tool plugs must match the outlet. Never modify safety principles. A careless action can cause severe in- the plug in any way. -
Page 9: Useful Information
Safety Information Useful Information Website Information concerning our Products, Accessories, Spare Parts and Published Matters can be found on the Desoutter website. Please visit: www.desouttertools.com. Information about installation manuals Detailed operating instructions, installation and upgrade man- uals are available at https://www.desouttertools.com/resource-... - Page 12 Original instructions Founded in 1914 and headquartered in France, Desoutter Industrial Tools is a global leader in electric and pneumatic assembly tools serving a wide range of assembly and manufacturing operations, including Aerospace, Automotive, Light and Heavy Vehicles, Off-Road, General Industry.
