Setra Systems MicroCal User Manual page 45

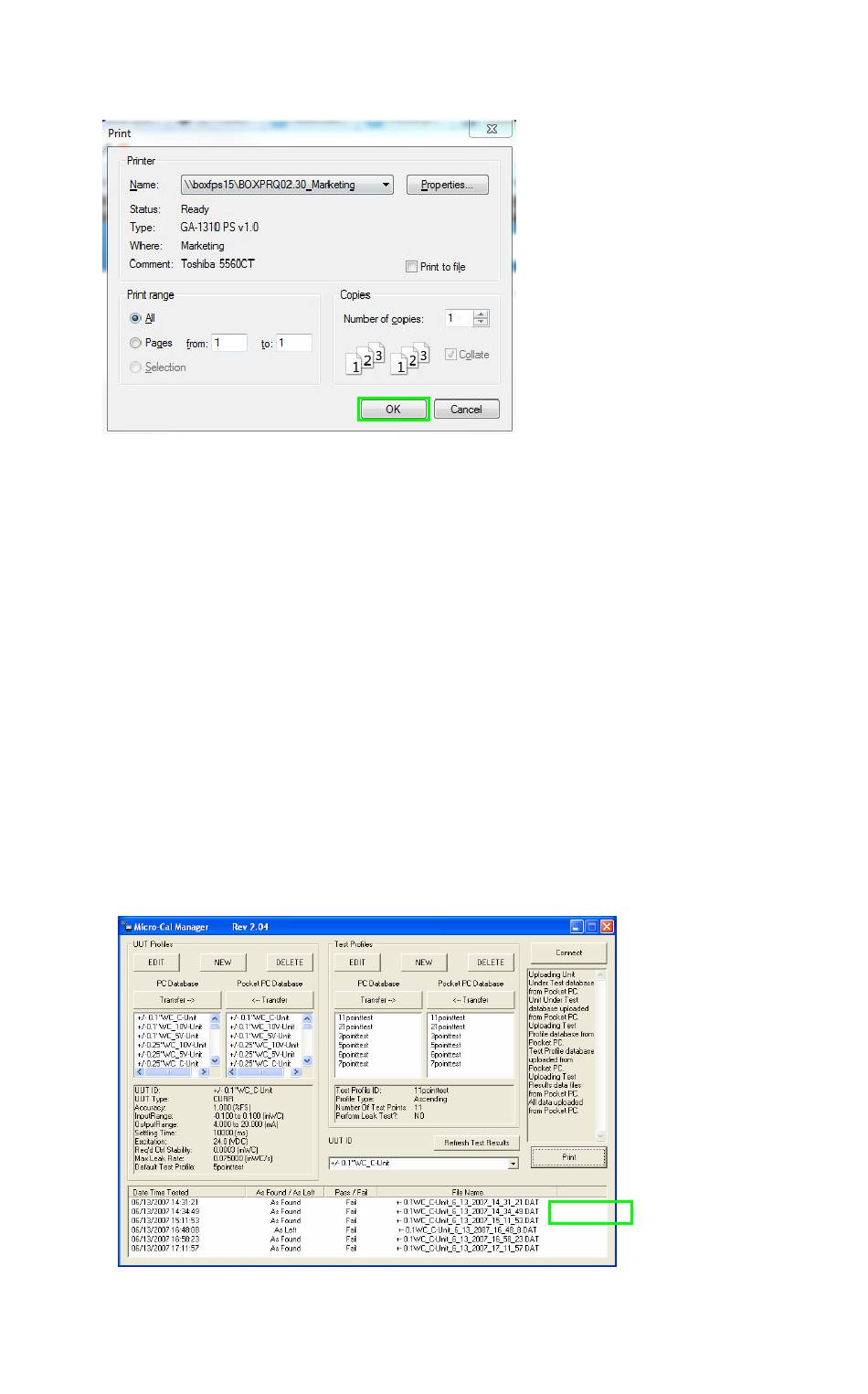

This will bring up a printer selection dialog. Select printer from here and press 'OK'
button. (See Diagram 38)
Diagram 38
To print an As Left/As Found pair, the test results must be selected
manually:
1. Select 'As Found' file then, while holding CTRL key, select 'As Left' file.
2. Press 'Print' button. (See Diagram 39)
Before data can be sent to the printer, the 2 selected files must be verified as a valid pair. Data
is validated as follows:
1. Only 2 files being requested for print operation.
2. Only one As Found and one As Left file.
3. As Left data file' s date/time stamp comes after that of As Found data file.
4. UUT Profiles & Test Profiles for each test result' s data file match.
5. As Left data file date/time stamp is within 24 hrs after that of As Found file.
Screen Shot with tests listed.
45
Diagram 39
