AUTO-DETECT DEFAULT SETTINGS PAGE
Used for Setra Expert System defaults for use with Model 269.
DEFAULT TEST PROFILE: ID of default test profile to be used when automatically setting
up an AUTO-DETECT UUT.
SETTLING TIME: Settling time to be used when automatically setting up an AUTO-DE-
TECT UUT.
CONTROL STABILITY: Required control stability to be used when automatically setting up
an AUTO-DETECT UUT.
Max. Leak Rate: Maximum leak rate to be used when automatically setting up an
AUTO-DETECT UUT.
RE-CAL ACCURACY: Re-cal accuracy to be used when automatically setting up an
AUTO-DETECT UUT.
Note: This value is used to determine if the MicroCal should adjust the unit,
despite a passing As Found test.
DEFAULT ACCURACY: Accuracy to be used when automatically setting up an AUTO-DE-
TECT UUT.
Note: This value is used to program all AUTO-DETECT units with the same Pass/Fail
specification if one is not already specified.
USE DEFAULTS FOR AUTO-DETECT UUT'S: Checking this box allows the software to
automatically program an AUTO-DETECT UUT profile using the values stored on this
page.
Note: Not checking this box will cause the software to prompt the operator to enter these
values during the initial setup.
AUTOMATICALLY RECALIBRATE: Checking this box allows the software to automati-
cally recalibrate a unit if its highest error is outside the re-cal accuracy and/or pass/fail
accuracy.
Note: Not checking this box will cause the software to prompt the operator to OK/
CANCEL recalibration.

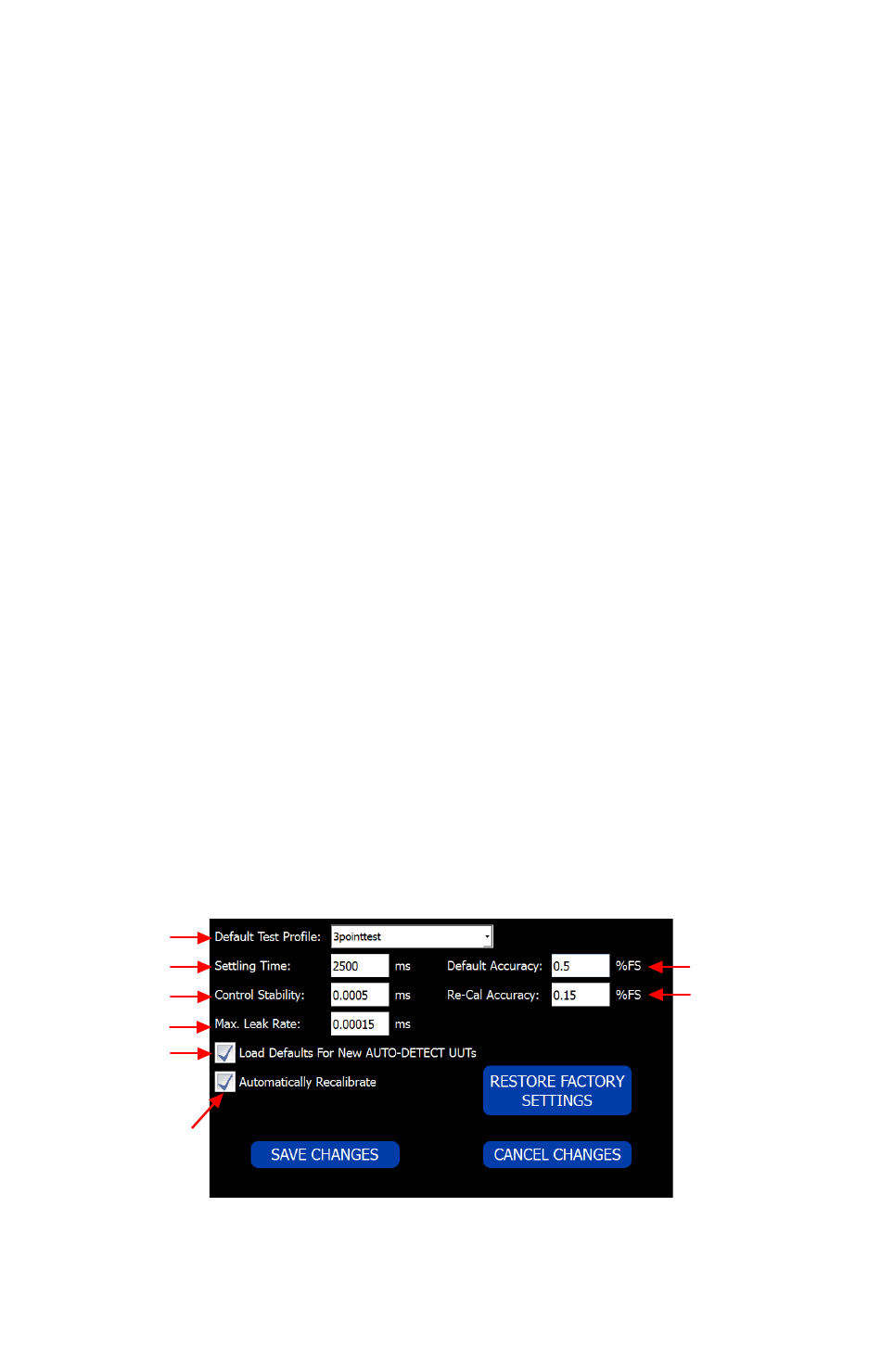

Default Profile ID
Default Accuracy
Settling Time Input Input
Required Control
Re-Cal. Accuracy
Stability Input
Input
Maximum Leak Rate Input
Use Defauts For
AUTO-DETECT
UUT's Check Box
Automatically Recalibrate
Check Box
