6.33 RUN TEST: DITHER CONTROL PAGE (Manual Pressure Incrementing)

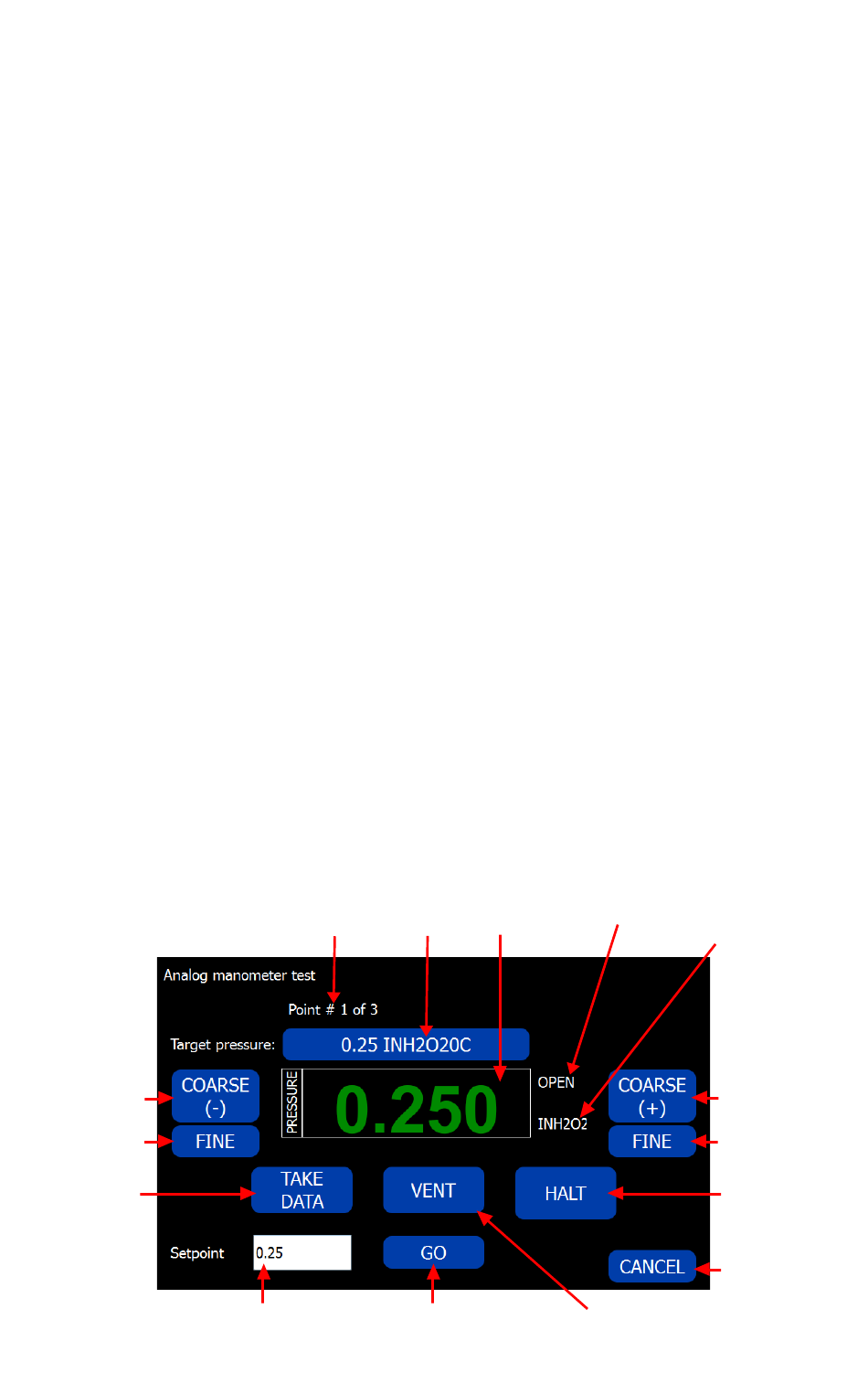

Screen Instructions (Diagram 12):
Test Point Indicator: Displays present test point number.
Target Pressure: Displays present test point target pressure.
Eng Units Display: Displays pressure units.
Pressure Display Window: Displays present pressure during test.
OPEN/CLOSE Indicator: Available only with P-Switch, indicates open/closed status of
switch.
Take Data Button: Forces data collection for Dial Gauge. Tells software that the UUT is
indicating the present target pressure.
Target Pressure Button: Set pressure target to original target defined by test profile for
present test point.
Vent Button: Stops the test in progress and vents MicroCal pressure ports to atmosphere.
Halt: Pauses pressure control. Leaves system closed to allow for quick re-acquisition of
target pressure.
Set Point Window: Displays present set point for the MicroCal pressure controller.
Updates when test point number is changed, or when +/- dither controls are used. Also,
allows user entry.
GO Button: Updates pressure target within MicroCal to that displayed in the set point
window. Starts pressure control.
- FINE Button: Decreases pressure set point by 0.1% of UUT span.
+ FINE Button: Increases pressure set point by 0.1% of UUT span.
- COARSE: Decreases pressure set point by 1% of UUT span.
+ COARSE: Increases pressure set point by 1% of UUT span.
Cancel Button: Stops test in progress and erases any data taken. Leaves unit in vented
state.
OPEN/CLOSED
Pressure
Indicator
Diagram 12 Display
Test Point Target
(P-Switch Only)
Window
Indicator Pressure
Eng. Units
Display
- COURSE Button + COURSE Button
- FINE Button + FINE Button
Take Data Button
Halt Button
Cancel Button
Set Point Window GO Button
Vent Button
