5.0 CALIBRATOR SETUP
5.1 USER INTERFACE PANEL
The user interface panel includes the pressure and electrical connections to the unit
under test. (See Diagram 4)
5.2 BATTERY CHARGING
The MicroCal is assembled, calibrated and tested at the factory. The battery, as received,
will be in a partially charged state. Before operation please be sure to fully charge the
battery to get maximum portable use of the device.
TO CHARGE THE BATTERY:
• Connect the AC power adapter (AC adapter is shipped in Accessory Box, see Diagram
3) to AC supply connector on back of unit or use optional desktop charger (869974-G)
• Initial battery charging will take approximately 2-4 hours.

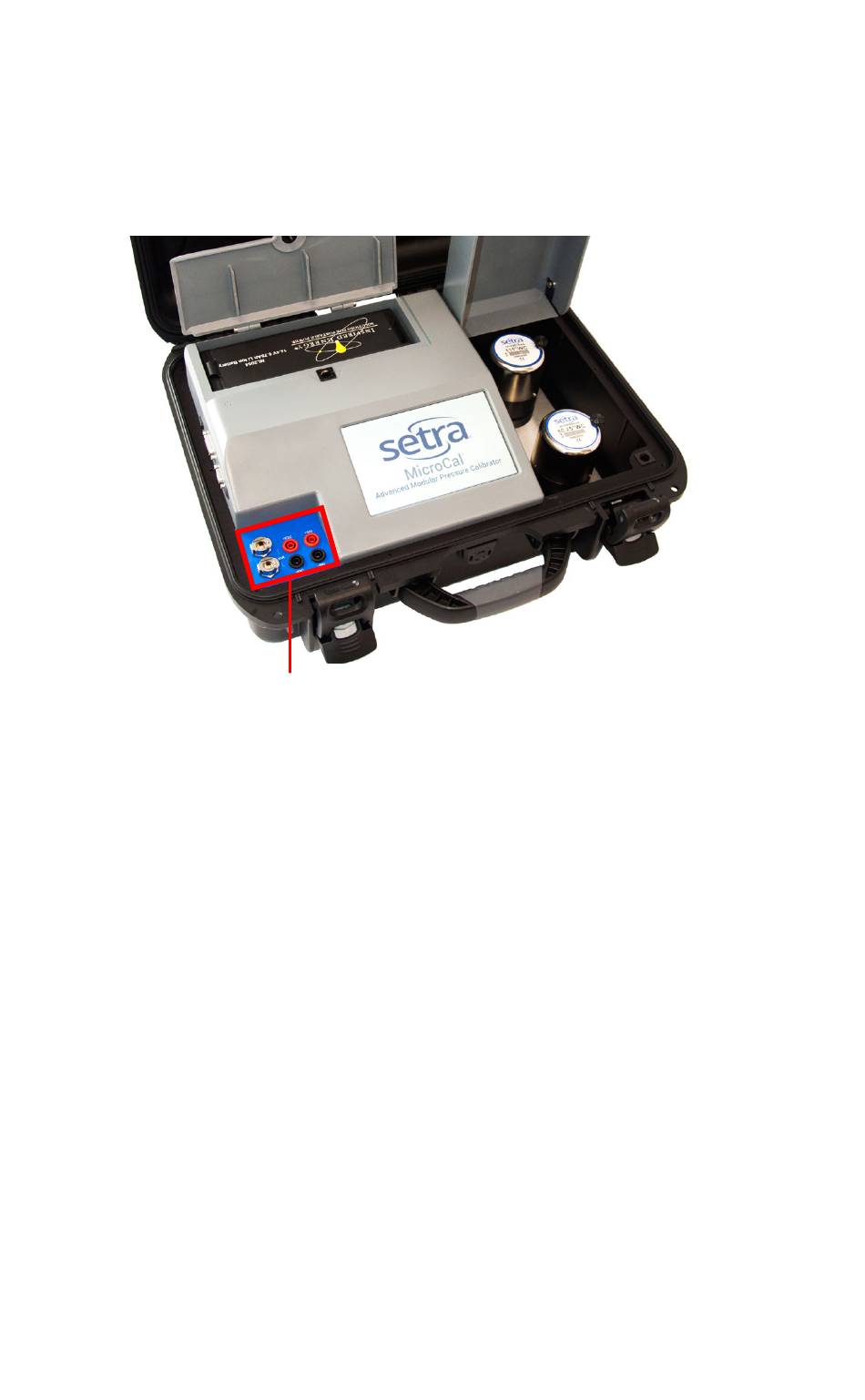

User Interface Panel
11
Diagram 4
