9.2 GRAPHICAL USER INTERFACE SETUP

The interface is divided into sections corresponding to the pages on the MicroCal
software.
DATA SETS
UUT (Unit Under Test) Profiles - These define a transducer so the MicroCal knows what
it's working with. (See Diagram 26 - Portion outlined in red)
Test Profiles - Determines how a test is performed. (See Diagram 26 - Portion outlined
in blue)
Test Results - Actual data files created when a test is recorded on the PC. (See Diagram
26 - Portion outlined in green)
Profile Selection - With each profile set, there are two list windows for existing profiles.
One is labeled 'PC DataBase,' the other 'MicroCal Database.' (See Diagram 27)
39

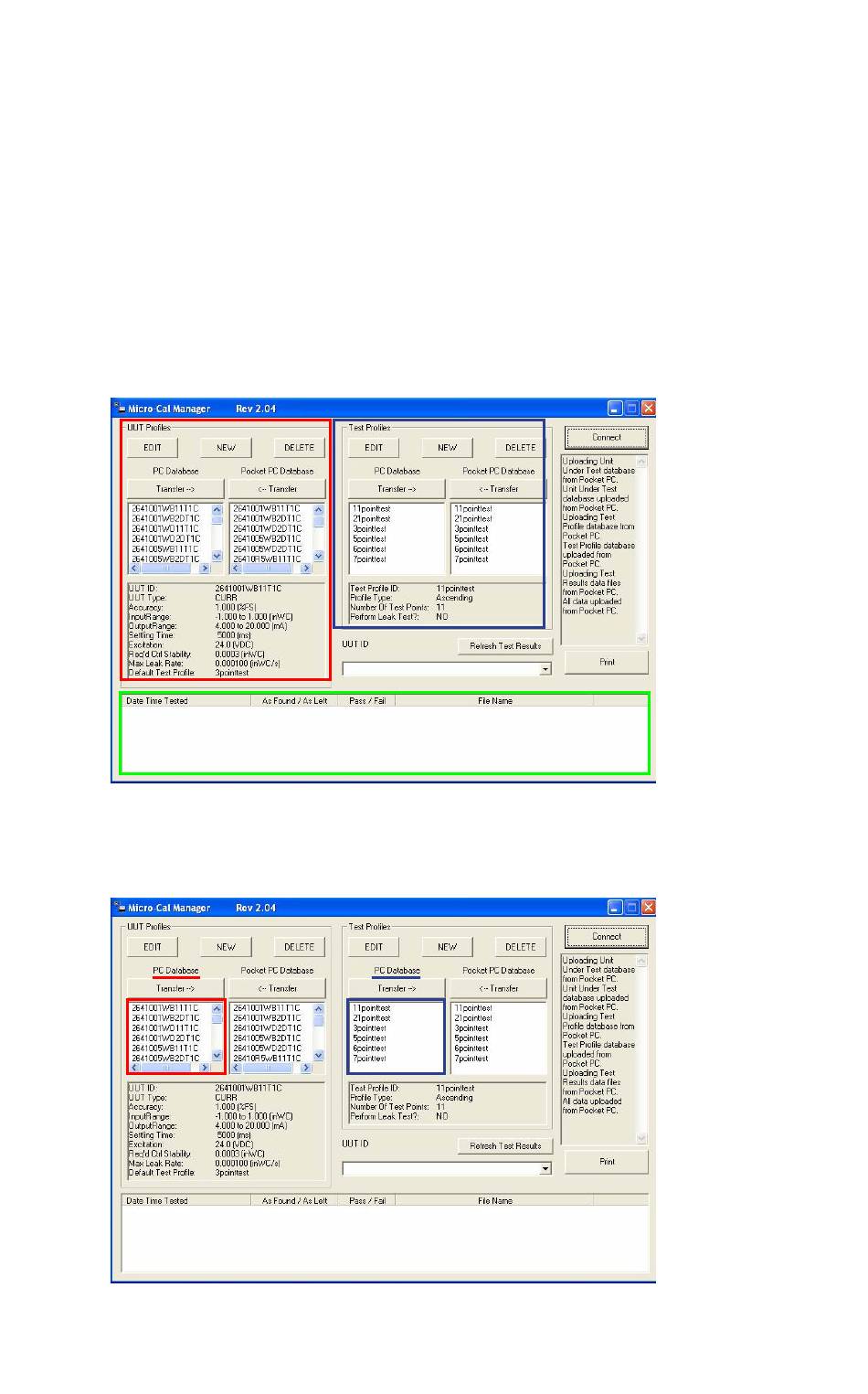

Diagram 26
Diagram 27
