6.4 TEST SETUP: GENERAL

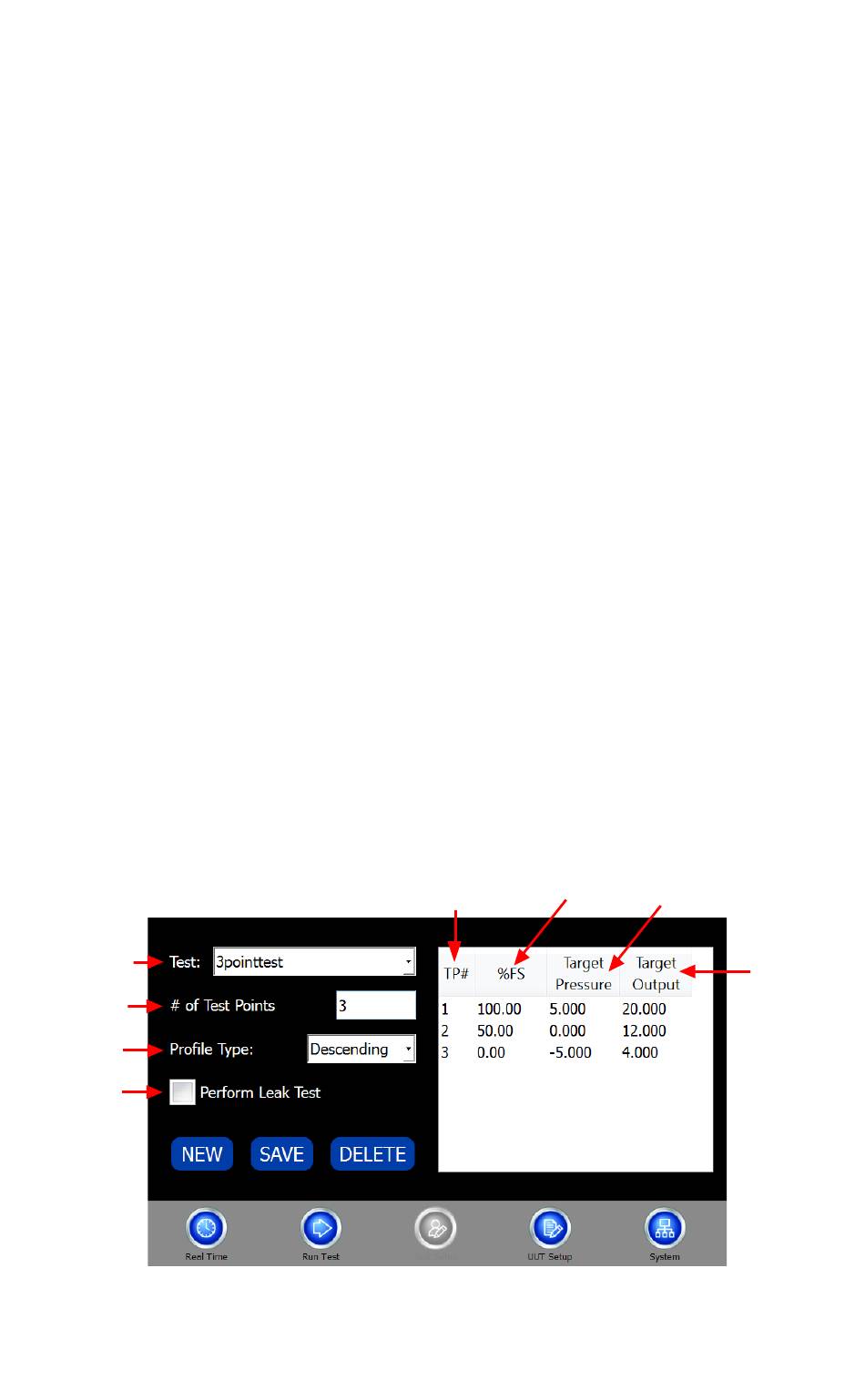

Setting up Test Profiles Database (Diagram 13):
1. Profiles are pressure settings used during testing.
2. Program has capability of creating additional test profiles besides the default test profiles
that are installed.
3. If a new profile setup is required tap the TEST SETUP tab.
4. Select NEW button
5. Type new TEST ID in box.
6. Select TEST ID to copy, (if desired) from drop down list, and press 'OK' .
7. Once you've entered your new TEST ID, select the number of data points box, highlight the
number and change it.
8. Go to PROFILE TYPE drop down window, press down arrow and select from the list of
Ascending, Descending, Both, or Custom.
Note: When using both, the number of data points MUST be odd, it cannot be even.
9. If leak test is required, check PERFORM LEAK TEST box.
10. To save, press SAVE button.
Note: Save will be 'grayed out' when data has been saved.
11. To delete a profile, select TEST PROFILE from list, and push DELETE button.
12. Ascending, Descending, and Both will set up a profile with evenly spaced points in the di-
rection implied by the type. For custom point spacing, see the Custom Profile Editor Page.
Profile ID
Number of
Test Points
Profile
Type
Perform
Leak Test
Diagram 13
Test
%FS Target
Point
22
Target
Pressure
Target
Output
