User Manual
EPD Device
EPD-023 Module
Solution
Wireless ePaper Display Solution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPD-023 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech EPD-023

Summary of Contents for Advantech EPD-023

  • Page 1 User Manual EPD Device EPD-023 Module Solution Wireless ePaper Display Solution...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 4 (1). This module limit can be used to install in the list of host combinations below. Product Host model Module Model Antenna type Difference of name End Product EPD-023B2 Wireless EPD-023 Chip antenna antenna type ePaper display screen EPD023 Control size Board EPD-053R2 Wireless...
  • Page 5 LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: M82-EPD-023-053 ". If the labelling area is larger than the palm of the hand, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part...
  • Page 6 Technical Supports and Assistance Visit the Advantech website at http://Supports.advantech.com where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical Supports if you need additional assistance. Please have the...
  • Page 7 DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 8 Equipment L'équipement est tombé et a été endommagé. Equipment L'équipement présente des signes évidents de rupture. AVERTISSEMENT: Cet ensemble d'instructions est donné conformément à la norme CEI 704-1. Advantech décline toute responsabilité quant à l'exactitude des déclara- tions contenues dans le.

  • Page 9: Table Of Contents

    4.2.3 ePaper manager setup on ARK..........17 4.2.4 WISE-3610Z Setup and Connection ARK with ePaper Manager33 4.2.5 EPD-023,053 Setup and Connection to ARK with ePaper Manager Hands-on EPD Device on ePaper Manager ...........36 4.3.1 ePaper Manager Login ...............36 4.3.2 Add Group & Device into ePaper Manager.........37 4.3.3...
  • Page 10 WISE-EC EPD Design-in Service ..95 The Acquisition of Information ..............96 5.1.1 Concept ..................96 5.1.2 Design..................97 5.1.3 Integration................... 98 5.1.4 Production................... 98 Contact Information................. 99 Global Service Policy................99 5.3.1 Warranty Policy................99 5.3.2 Repair Process................. 100 EPD-023 User Manual...

  • Page 11: Chapter 1 Product Overview

    Chapter Product Overview...

  • Page 12: Introduction

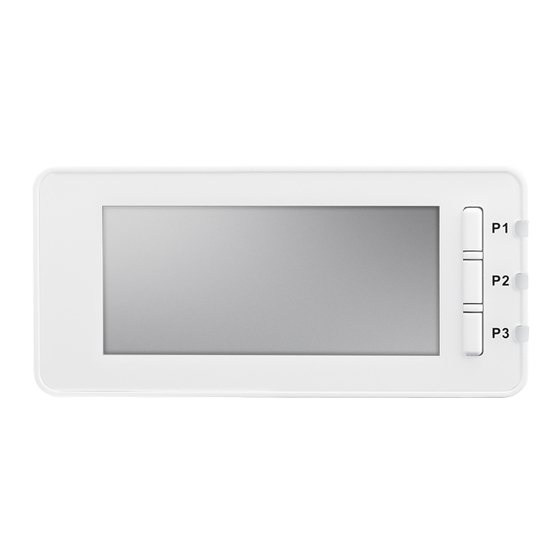

    Introduction EPD-023 is an ePaper device which Supportss ultra low power 2.4GHz RF wireless integrated with a EPD with an ARM Cortex-M3 processor. The device is designed for hospital, pharmacy, factory, warehouse and retail applications. With optimization on power consumption and device management, low data rate applica- tions can achieve years of battery life and thousand of device connections.

  • Page 13: System Implementation

    The Router (built-in WISE-3610Z) can extend wireless range of the Gateway. The EPD device is a device with ePaper, EPD controller and wireless connectiv- ity. Advantech provides a total solution for development to select the different architec- ture according t requirements.
  • Page 14 EPD-023 is the end node of the system. Developers can apply Advantech WISE- 3610Z /3240 to connect to ePaper manager which is installed in Embed- ded Computer /ARK2250L. EPD-023 User Manual...

  • Page 15: Chapter 2 Epd-023 Network Specification

    Chapter EPD-023 Network Specification...

  • Page 16: System Architecture

    System Architecture Figure 2.1 EPD-023 Network Topology 2.1.1 System Environment Device1 Version ARK 2250L/ePaper manager WIN7, WIN10 (2019,Q3) 64 bit, V1.0.0 WISE Gateway: 3610Z OpenWRT V1.0.0 WISE Router: WISE3240 OpenWRT V1.0.0 EPD Device CC2650 TI RTOS V1.0.0 System Specification One single network can be built by WISE-3610Z or WISE-3240.

  • Page 17: Epaper Manager

    023 to transfer images from the gateway to the EPD device (under a typical 25 degree environment.) Supports multi-image storage. Full size image: EPD-023: 20 pages in total. The first 3 pages are mapped to the 3 buttons. The other 17 pages can be controlled from the ePaper man- ager directly.

  • Page 18: System Network Specification

    1 pcs EPD device takes 6 secs to join the network. b. 400 pcs EPD device join network in 30 minutes by 1 host WISE-1840 on WISE-3610Z Data transfer performance from Gateway Update 400pcs EPD-023 in 1 hours 2 way communication Communication with encrypted AES128...

  • Page 19: Registration

    (3) EPD device can auto join the network after the whitelist has been properly setup in ePaper manager and Gateway. Note! End users need to be aware which 2.4Ghz wi-fi channels have been used to avoid to using the same channels. EPD-023 User Manual...

  • Page 20: Secure Key Mechanism

    Secure Key Mechanism Advantech EPD-023 asks users to change the secure key when data exchanges between devices. Users can setup a new secure key from ePaper manager and the gateway will start passing the new key to connected devices. As long as the key has been changed, the device can not operate in the original system which has a different secure key setting.

  • Page 21: Chapter 3 Hardware Specification

    Chapter Hardware Specification...
  • Page 22 3. H/W SPECIFICATION This section provide board level PCBA design in #3.1 and #3.2 and the system level reference design in #3.2. EPD-023,053 PCBA with following spec. Panel Size : 79.0(H)×36.7(V) ×1.15(D) 5.6 Panel Size : 125.4 (H) × 99.5 (V) × 1.15 (D) mm, PCBA: 89 x 36.8 x 3 mm...
  • Page 23 Figure 3-3 Table 3-2 Power connector (CON7) PIN_NAME +VBATT 3.1.3 EPD FPC connector (CON1) Figure 3-4 Figure 3-5 Table 3-1-3 EPD FPC connector (CON1) PIN_NAME VCOM PREVGL PREVGH FMSDO +IOVDD...
  • Page 24 +IOVDD EPD_SDA SPI0_CLK SPI0_CS1# EPD_DC_SEL EPD_RST_N EPD_BUSY BUS_SEL TSDA TSCL RESE MFCSB 3.1.4 Debug FFC connector (CON10) Figure 3-6 Figure 3-7 Table 3-1-4 Debug FFC connector (CON10) PIN_NAME...
  • Page 25 ZB_UART0_TX ZB_UART0_RX JTAG_TDI JTAG_TDO JTAG_TCK JTAG_TMS N_RESET BOOT_CFG +DCVIN 3.1.5 Switch button (SW1) Figure 3-8 Figure 3-9 Table 3-1-5 Switch button (SW1) PIN_NAME SW1_IN SW1_IN +VDD +VDD 3.1.6 Switch button (SW2) Figure 3-10 Figure 3-11 Table 3-1-6 Switch button (SW2)
  • Page 26 PIN_NAME SW2_IN SW2_IN +VDD +VDD 3.1.7 Switch button (SW3) Figure 3-12 Figure 3-13 Table 3-1-7 Switch button (SW3) PIN_NAME SW3_IN SW3_IN +VDD +VDD 3.2 Module & PANEL OUTLINE AND DIMENSION Module Figure 3-14 EPD-023...

  • Page 27: Device Led Button Behavior

    Device LED Button Behavior 3.2.1 EPD-023 button behaviors: item Status Action Result Press button for 0.5 sec and SW1 (P1) no press Refresh EPD to Page 1 release button Press button for 0.5 sec and SW2(P2) no press Refresh EPD to Page 2 release button Press button for 0.5 sec and...

  • Page 28: Chapter 4 Epd-023 In Epaper Manager

    Chapter EPD-023 in ePaper Manager...

  • Page 29: Epd-023 With Epaper Manager Solution

    EPD-023 with ePaper Manager Solution Previously, we looked at EPD-023 as an end device. To build up a solution, we need a gateway to connect to our CMS: ePaper Manager provides a complete solution to help you import device data, design templates and manage devices easily. This user manual will help you to build a total solution system.

  • Page 30: Preparation

    Preparation 4.2.1 Hardware Component List Advantech Embedded Computer: ARK-2250L Advantech IoT Gateway: WISE-3610Z & Advantech EPD devices. 4.2.2 Software Component List Windows 7 professional version for ARK2250L Windows firewall needs to be setup for ePaper manager service AMQP: 5672 AMQP/SSL: 5671...
  • Page 31 EPD-023 User Manual...
  • Page 32 Windows hotfix of KB2999266 is required to run this software. Please download it from Microsoft website and execute. (https://www.microsoft.com/zh- TW/download/ confirmation.aspx?id=49093). Microsoft Visual C++ 2015 Redistributable Update 3 (https://www.microsoft.com/en-us/download/details.aspx?id=53840) Please click the next button if there si no need to change the default installation path. EPD-023 User Manual...
  • Page 33 Please check your public IP or domain name and fill it in the HTTP port number field. Please change the port number if needed. EPD-023 User Manual...
  • Page 34 Please fill in the password and confirm it for the PostgreSQL database. EPD-023 User Manual...
  • Page 35 Please fill in the password and confirm it for the MongoDB database. Click the install button to start installation. EPD-023 User Manual...
  • Page 36 Please allow access to the installation of erl.exe. EPD-023 User Manual...
  • Page 37 Allow to access the installation of epmd.exe. Click the Finish button to exit the Setup Wizard. You will get a register notification from our sales package. You will need to enable the key after installation of ePaper manager. EPD-023 User Manual...
  • Page 38 EPD-023 User Manual...
  • Page 39 Before you start transmitting an image to EPD or Firmware upgrade. You need to setup an FTP server. ARK2250L should have an FTP server installed. Click the startup icon to launch the Filezilla Server. Start the FTP Server. Add user account. EPD-023 User Manual...
  • Page 40 EPD-023 User Manual...
  • Page 41 Add a password for the user. use the symbol in password) Add Shared folders and set the property of the directories and files. Add the FTP Server to OTA Storage. You should make sure that the Shared folders are available. EPD-023 User Manual...
  • Page 42 Open Windows firewall setting and click allow a program or feature through Win- dows firewall. EPD-023 User Manual...
  • Page 43 Make sure to allow FileZilla Server and FileZilla Server Interface to pass through the Windows firewall. EPD-023 User Manual...
  • Page 44 How to configure your FTP server on ePaper manager Click the Storage button to add an FTP storage for OTA and image delivery. Click Add (+) button on the left-upper corner. Select the FTP option. Finish the configuration form and click Confirm. EPD-023 User Manual...
  • Page 45 Domain: [Your Server IP] Port: 21 Account Name: [Your FTP account] Password: [Your FTP password] Root Path: [Your root path] You will see an item in the Storage Management table. Open the FTP port of the firewall in the OS. EPD-023 User Manual...
  • Page 46 Open WISE-3610Z management web page: Open a web browser (Chrome is recommended) and enter the IP Address http://192.168.1.1 or http://advan- tech.local/ Login: The default username and password are root and ePaper. Click the Login button to open the web configuration page. EPD-023 User Manual...
  • Page 47 Setup Networking Connection Ethernet WAN Backhaul Connection: Connect Ethernet cable to an exiting backhaul router and ISP cable modem or Internet service provider xDSL / FTTx modem. Select WAN for NorthBond backhaul connection and choose Protocol > DHCP Client EPD-023 User Manual...

  • Page 48: Epd-023,053 Setup And Connection To Ark With Epaper Manager

    Setup the ePaper management server IP as below. 4.2.5 EPD-023,053 Setup and Connection to ARK with ePaper Manager DeviceList setup: Install ePaper Add Gateway to Add Router to Add Gateway & Manager ePaper manager Gateway Router EPD Controller for DeviceList setup:...

  • Page 49: Hands-On Epd Device On Epaper Manager

    Target Item data contains unique ID such as the key e.g. PN (part number) Target Item ID as the key e.g. PN (part number) EPD device screen setup via the EPD image template 4.3.1 ePaper Manager Login EPD-023 User Manual...

  • Page 50: Add Group & Device Into Epaper Manager

    Mac address of Data import and EPD device EPD power-on and EPD device Import template managment join network online into white List EPD controller EPD System Template & data Associate the automacatelly binding device and data operate Add Group EPD-023 User Manual...
