Bausch Datacom DinBox RTU M4 Reference Manual page 24

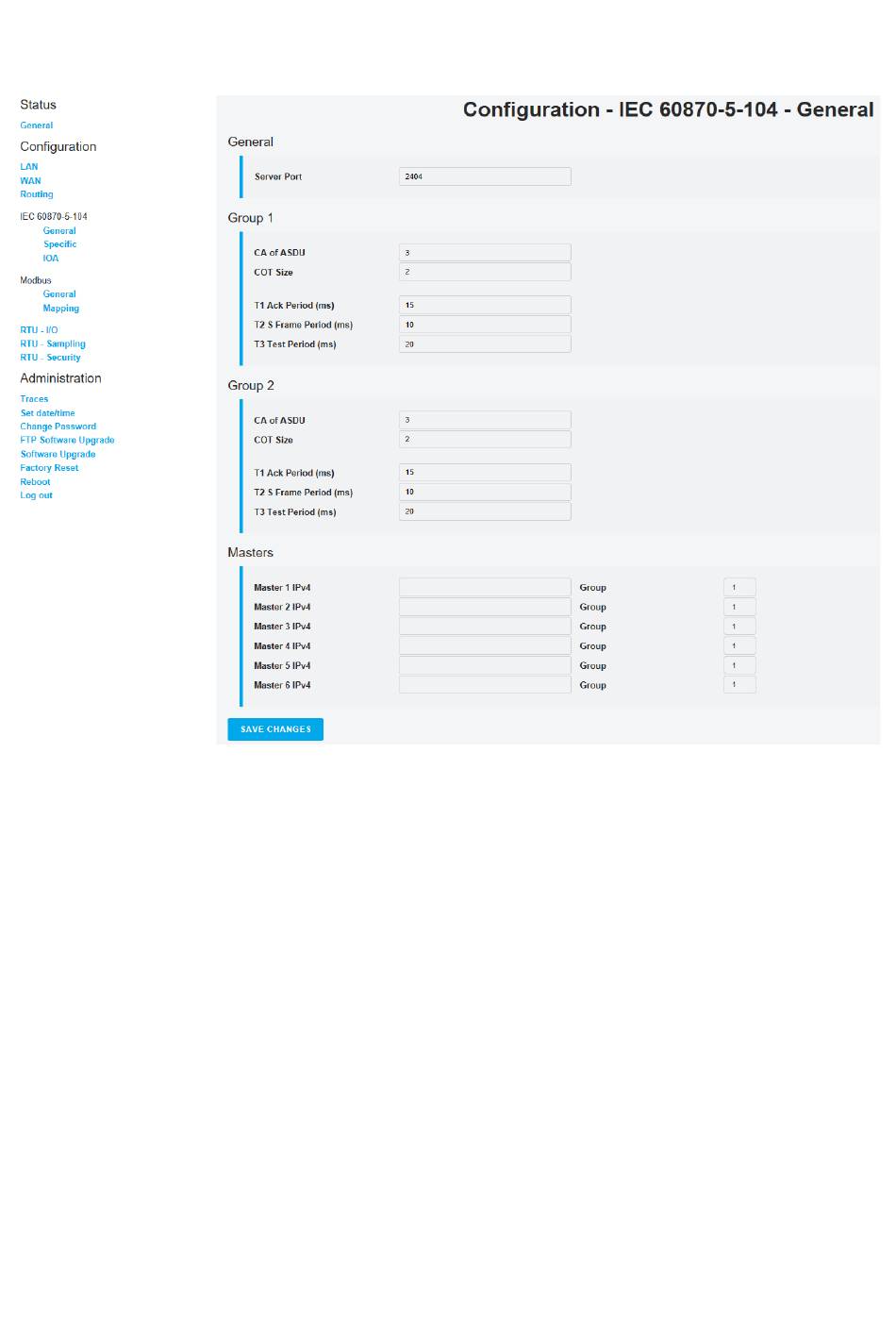

IEC104 - General
Configuration of the general IEC60870-5-104 parameters.
General
Server Port
•
Group 1 and 2 configuration
It's possible to create 2 groups of IEC60870-5-104 masters, each with it's
own basic parameters.
• CA of ASDU
COT Size
•
• T1 Ack Period (ms)
• T2 S-Frame Period (ms)
• T3 Test Period (ms)
Port 2404 is standard used for IEC60870-5-104
communication.
Defines the Common Address of ASDU.
Defines the Cause od Transmission size.
Defines the timeout in which sent
messages should be acknowledged.
Defines the timeout to acknowledge
received messages (T2 < T1).
Defines the timeout for the test frames.
