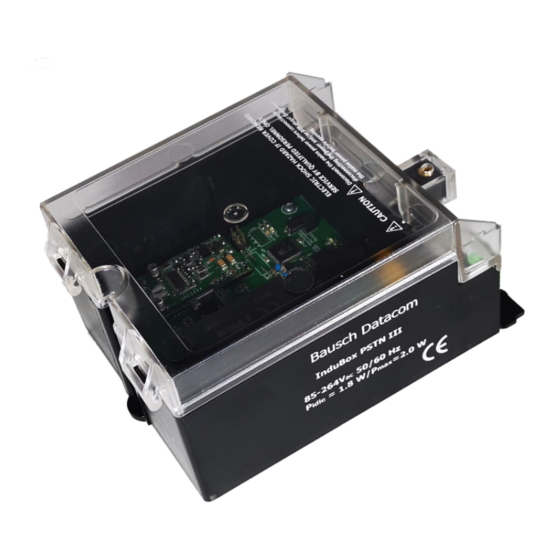

- Page 1 Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c Installation & Configuration manual InduBox PSTN III...
- Page 2 Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c 2013 / 04 / 02 InduBox PSTN III V1.0c E...
- Page 3 Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c ! CAUTION ! ELECTRIC SHOCK HAZARD IF COVER REMOVED SERVICE BY QUALIFIED PERSONEL ONLY Document History Date Version Auteur 13/06/12 V1.0 Preliminary Filip Lavaerts Creation / V1.0 InduBox PSTN III hardware 24/08/12 V1.0a...
-
Page 4: Table Of Contents
Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c Table of Contents Introduction Block Diagram Specifications 3.1 Housing and Connectors 3.2 Environmental conditions 3.3 Power Supply Specifications 3.4 PSTN Module Specifications Ports and Connectors 4.1 Mains Power Connection 4.2 Non isolated DTE interface 4.3 Isolated DTE Interfaces... - Page 5 Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c Serial flow as used in this manual : Data Data Communication Terminal Equipment Equipment Modem InduBox PSTN III Communication Application device 2013 / 04 / 02 InduBox PSTN III V1.0c E...
-
Page 6: Introduction
Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c Introduction This manual is the reference when setting up the InduBox PSTN III modem for your application. Because of the nature of this product and it's field of application, some degree of technical background knowledge regarding the application and data- communication is assumed. -
Page 7: Block Diagram
The most important units are briefly described. AC/DC power supply The mains supply (ac) must be connected to the InduBox PSTN III modem via a 2 pin terminal block with screw contacts. Make sure the voltage supplied to the modem is in the range of the InduBox PSTN III input voltage (see specifications for details on voltage range). - Page 8 Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c Configuration Interface The InduBox PSTN III modem has one complete (TxD, RxD, DCD, DTR, RTS, CTS, RI and GND) RS-232 interface. This RS-232 interface is not isolated and must be used to configure and/or update the modem module.
-
Page 9: Specifications
Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c Specifications Housing and Connectors • Housing: Bausch InduBox housing bottom enclosure and seal-able connector cover ABS with self-extinguishing V0 additive transparent cover polycarbonate + self-extinguishing V1 dimensions with connector cover: 180 x 108 x 71 mm dimensions without connector cover: 145 x 108 x 71 mm •... -
Page 10: Ports And Connectors
Mains Power Connection Always disconnect the mains power before connecting or disconnecting the power plug. Make sure the voltage supplied to the modem is in the range of the InduBox PSTN III input voltage (see specifications for details on voltage range). -
Page 11: Non Isolated Dte Interface
Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c Non isolated DTE Interface Only devices which are conform with the safety regulations can be connected to the DTE port! This interface must be used to configure and upload firmware to the PSTN modem module. -
Page 12: Isolated Dte Interfaces
DTE port! The isolated interfaces are galvanically separated from the main functions of the InduBox PSTN III ; RxD and TxD are separated via an OptoCoupler, a second 5 Vdc power supply is created via an aditional DC/DC convertor. - Page 13 This interface is full duplex and can be used on all possible baudrates up to 115200 bps. This interface uses only RxD and TxD. DTR and RTS are not used, thus inactive. Be sure to disable those signals in the configuration of the InduBox PSTN III ; at&k0 no RTS/CTS flow control at&d0...
- Page 14 Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c 4.3.2 Isolated RS-485 interface • RS-485 Hardware Configuration RS-485 Interface RJ-45 8 contacts 1 ………. 8 LINE Mains RS-232 N L1 RS-485 Level 5~25 Vdc in OR +5V' out (JP4) V.11...
- Page 15 This interface is half duplex and can be used from 300 to 115200 bps. This interface uses only RxD and TxD. DTR and RTS are not used, thus inactive. Be sure to disable those signals in the configuration of the InduBox PSTN III ; at&k0 no RTS/CTS flow control at&d0...
-
Page 16: Led Indicators
Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c LED Indicators There are 9 LED’s implemented onto the InduBox PSTN III modem printed circuit. Power Supply Socket Modem Module 5V’ RS-232 MAINS PWR green Power ON indicator OFF : no voltage present... -
Page 17: Jumper Settings
Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c 6. Jumper Settings The InduBox PSTN III modem has 5 jumpers. The functions of the jumpers will be described in the paragraphs below. Power Supply Socket Modem Module RS-232 MAINS... -
Page 18: Watchdog Functionality
Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c Watchdog Functionality To prevent a “total lock-up” of the InduBox PSTN III a long term watchdog is implemented. This function is created with a separate microcontroller. The microcontroller itself is guarded with it’s own internal watchdog (+/- 1 second refresh / green WD LED flash). -
Page 19: At Command Interface
More information about the commands to, and the responses from the InduBox PSTN III modem, are described in the SMD2404-15-34-57-93_MANUAL280205 manual. This manual can be found onto the CD-ROM delivered with the InduBox PSTN III modem. 2013 / 04 / 02... -
Page 20: Ec-Declaration Of Conformity
Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c EC-Declaration of conformity standard CE + TST25-3 (additional extended immunity tests) EN61000-3-2 Electromagnetic compatibility, part 3, section 2 Limits for harmonic current emissions. EN61000-3-3 Electromagnetic compatibility, part 3, section 3 Limitations of voltage fluctuation and flicker. - Page 21 Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c 1000 At (ampere turns) – 1A on 1000 turns EN61000-4-8 Electromagnetic compatibility, part 4, section 8 Power frequency magnetic field immunity test. CISPR24 levels EN61000-4-11 Electromagnetic compatibility, part 4, section 11 Voltage dips, short interruptions and voltage variations immunity test.
- Page 22 Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c 2013 / 04 / 02 InduBox PSTN III V1.0c E...
- Page 23 Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c 2013 / 04 / 02 InduBox PSTN III V1.0c E...
- Page 24 Bausch Datacom – InduBox PSTN III – Reference Manual V1.0c 2013 / 04 / 02 InduBox PSTN III V1.0c E...
