Kübler C100 Manual

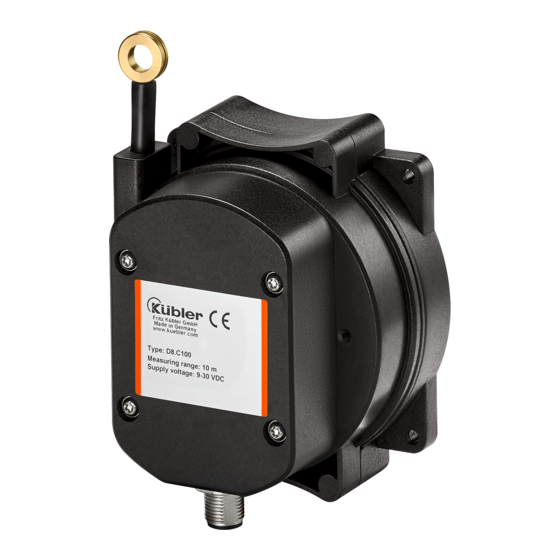

Draw wire system
Hide thumbs Also See for C100:
Table of Contents

Advertisement

Quick Links

Download this manual
R67042.0002 (4)
Manual
Draw wire system C100 / D125

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kübler C100

Summary of Contents for Kübler C100

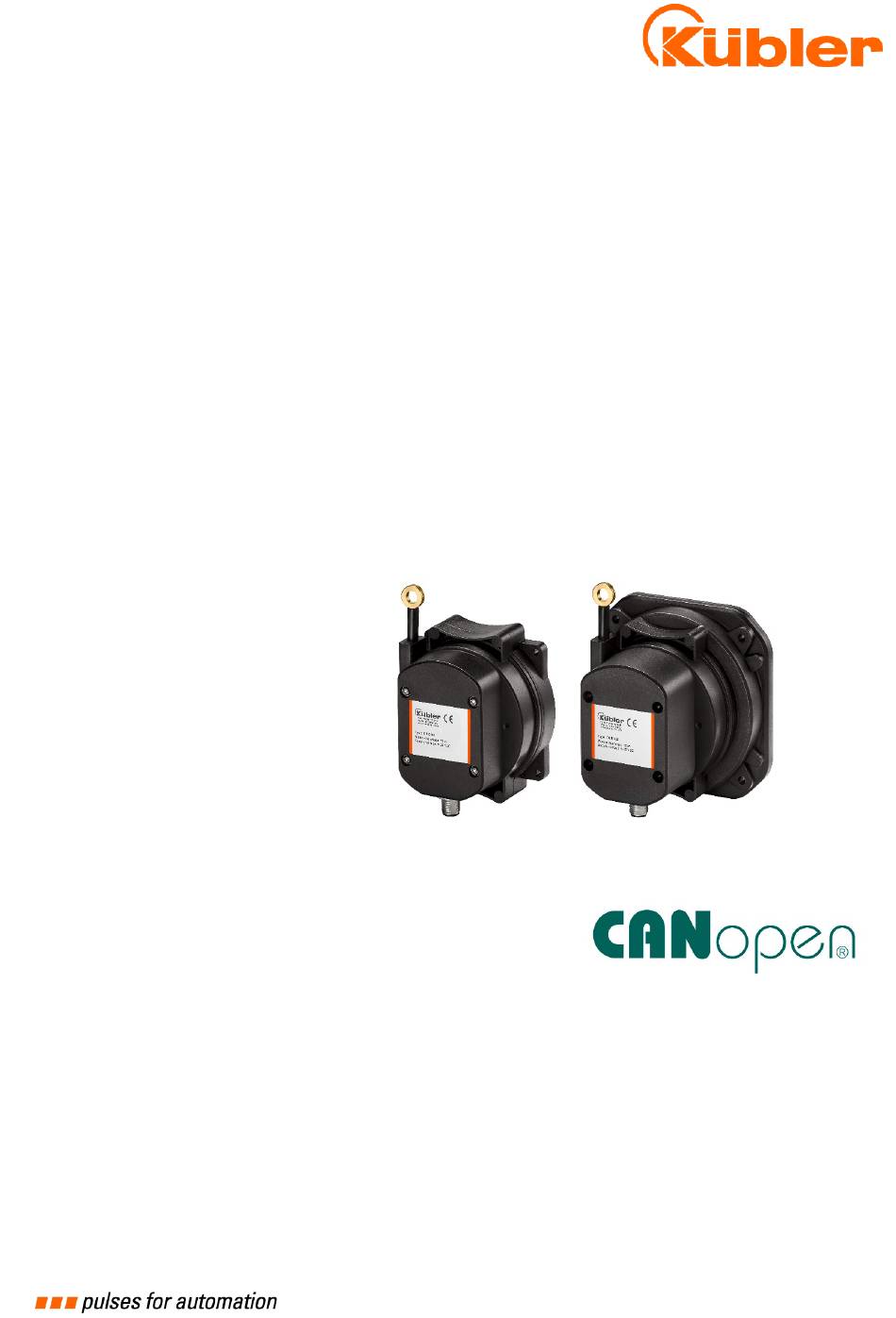

  • Page 1 R67042.0002 (4) Manual Draw wire system C100 / D125...
  • Page 2 Phone +49 7720 3903-952 +49 7720 21564 support@kuebler.com Document no. R67042.0002 (4) Document title Manual, Draw wire system C100 / D125 Language version English (EN) - German is the original version Document version 29.10.2018, Index 4 Copyright © 2018, Kübler Group, Fritz Kübler GmbH...

  • Page 3: Table Of Contents

    Table of Contents 1. CAN connections ........................ 4 2. Short information about the CAN commands ..............5 2.1 PDO output C100 ......................... 5 2.2 PDO output D125 ......................... 5 2.3 Factory setting ........................5 2.4 Network Management Services .................... 5 2.4.1 Start remote mode .....................

  • Page 4: Can Connections

    1 CAN connections CAN connections M12 Connector Description CAN-GND +9…30 VDC Supply voltage GND (0V) CAN_H CAN_L Pinout 1) CAN-GND 2) +V 3) 0V 4) CAN-H 5) CAN-L R67042.0002 (4) EN - 4...

  • Page 5: Short Information About The Can Commands

    2 Short information about the CAN commands Short information about the CAN commands PDO output C100 COB-ID 0x180 + ID 0xAA 0xAA 0xBB 0xBB (LSB) (MSB) (LSB) (MSB) 0x280 + ID 0xZ1 0xZ1 0xZ2 0xZ2 (LSB) (MSB) (LSB) (MSB) PDO output D125...

  • Page 6: 2.4.2 Reset Node

    2 Short information about the CAN commands 2.4.2 Reset Node COB-ID 0x000 0x81 Operating state: Preoperational mode Baud rate SDO change COB-ID 0x600 + ID 0x2F 0x00 0x30 0x00 0x00 0x00 0x00 Baud rate 1 Mbit/s 500 kbit/s 250 kbit/s 125 kbit/s 100 kbit/s 50 kbit/s...

  • Page 7: Version With Inclinometer

    3 Version with inclinometer Version with inclinometer Setting and resetting the 0° point COB-ID Setting 0x600 + ID 0x2B 0x13 0x60 0x00 0x01 0x00 0x00 0x00 Resetting 0x600 + ID 0x2B 0x13 0x60 0x00 0x00 0x00 0x00 0x00 Direction change, inclinometer 1 COB-ID 0x600 + ID 0x2F...

  • Page 8: Reading The Firmware Version

    3 Version with inclinometer Reading the firmware version COB-ID 0x600 + ID 0x41 0x0A 0x10 0x00 0x03 0x00 0x00 0x00 Switching between 180° and 360° (default 360°) COB-ID 0x600 + ID 0x2F 0x27 0x61 0x00 0x01 0x00 0x00 0x00 ±180° 360°...
  • Page 9 Kübler Group Fritz Kübler GmbH Schubertstr. 47 78054 Villingen-Schwenningen Germany Phone: +49 7720 3903-0 Fax: +49 7720 21564 info@kuebler.com www.kuebler.com...

This manual is also suitable for:

D125
