Summary of Contents for Digital Projection Titan 800 3D series

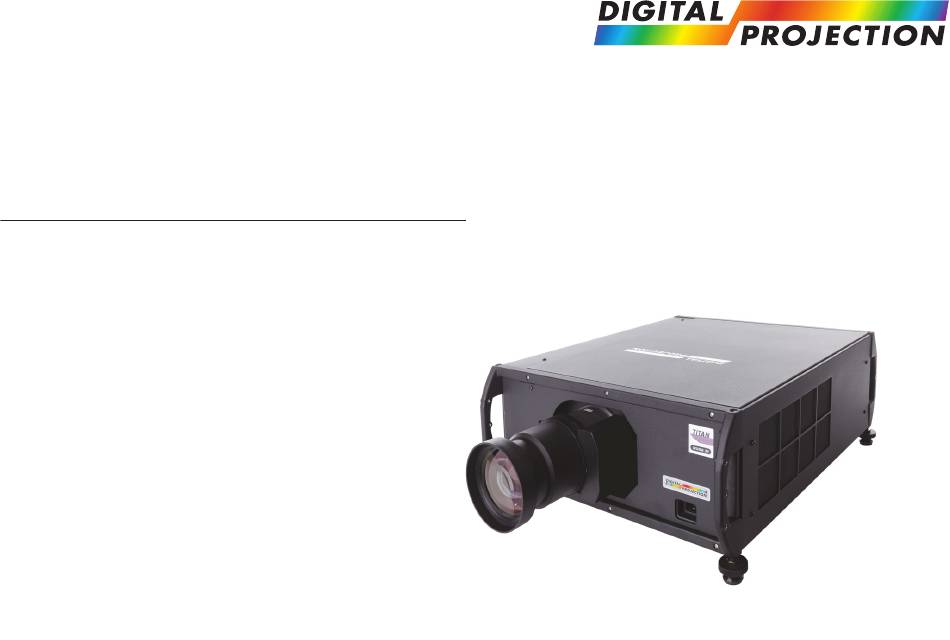

- Page 1 USER GUIDES INSTALLATION AND QUICK-START GUIDE CONNECTION GUIDE OPERATING GUIDE Titan 800 3D series High Brightness Digital Video Projector Rev A June 2012 113-083A...
- Page 2 Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice. Projectors built prior to this revision of the Operating Guide may therefore not include all the features described.
- Page 3 INSTALLATION AND QUICK-START GUIDE Titan 800 3D series High Brightness Digital Video Projector Rev A June 2012...
-
Page 4: Table Of Contents
Digital Projection CONTENTS Installation and Quick-Start Guide Titan 800 3D series CONTENTS What’s in the Box? ................Inst_1 Getting to Know the Projector ............Inst_2 Front and rear views ................Inst_2 Remote control ..................Inst_2 Control panel indicators ...............Inst_3 Connection panel indicators ..............Inst_3 Positioning the Screen and Projector ........Inst_4... -
Page 5: What's In The Box
Digital Projection WHAT'S IN THE BOX? Installation and Quick-Start Guide Titan 800 3D series What’s in the Box? Notes Make sure your box contains everything listed. If any pieces are missing, contact your dealer. You should save the original box and packing materials, in case you ever need to ship your Projector. -
Page 6: Getting To Know The Projector
Digital Projection GETTING TO KNOW THE PROJECTOR Installation and Quick-Start Guide Titan 800 3D series Getting to Know the Projector Notes Front and rear views Remote control The projector uses the standard Digital Projection infra-red remote control. Transmit indicator Only the controls shown highlighted are used on this projector. -
Page 7: Control Panel Indicators
Digital Projection GETTING TO KNOW THE PROJECTOR Installation and Quick-Start Guide Titan 800 3D series Control panel indicators Notes Shutter Power The indicators on the control panel are as follows: Power off = NO POWER green = normal RUNNING mode... -
Page 8: Positioning The Screen And Projector
Digital Projection POSITIONING THE SCREEN AND PROJECTOR Installation and Quick-Start Guide Titan 800 3D series Positioning the Screen and Projector Notes Always allow the projector • Install the screen, ensuring that it is in the best position for viewing by your audience. -
Page 9: Fitting The Lens
Digital Projection FITTING THE LENS Installation and Quick-Start Guide Titan 800 3D series Fitting the Lens Notes • Turn the lens release lever clockwise so Always allow the lamp to cool for that it is pointing upwards, to open the 5 minutes before: lock fully. -
Page 10: Operating The Projector
Digital Projection OPERATING THE PROJECTOR Installation and Quick-Start Guide Titan 800 3D series Operating the Projector Notes Switching the Projector On • Connect the power cable between the mains supply and the projector. Switch on at the switch next to the power connector. -
Page 11: Adjusting The Lens And Image
Digital Projection OPERATING THE PROJECTOR Installation and Quick-Start Guide Titan 800 3D series Adjusting the Lens and Image Notes Zoom When any of the three Lens adjustment keys is pressed, the blue • Press followed by to adjust the size of the image on the screen. - Page 12 CONNECTION GUIDE Titan 800 3D series High Brightness Digital Video Projector Rev A June 2012...
- Page 13 Digital Projection CONTENTS Connection Guide Titan 800 3D series CONTENTS Signal Inputs and Outputs Control Connections ............Conn_1 ............... Conn_5 Rear Connection Panel ..............Conn_1 Update Port ..................Conn_5 Conn_1 (input 1) ..................Service Port ..................Conn_5 HDMI Conn_1 (input 2), (input 3) ...............
-
Page 14: Signal Inputs And Outputs
Digital Projection SIGNAL INPUTS AND OUTPUTS Connection Guide Titan 800 3D series Signal Inputs and Outputs Notes Rear Connection Panel For a complete listing of pin configurations for all signal and VGA (input 1) control connectors, see Wiring • Auto Setup... -
Page 15: Side Connection Panel
Digital Projection SIGNAL INPUTS AND OUTPUTS Connection Guide Titan 800 3D series Side Connection Panel Notes DVI (input 9) • Single or Dual Link DVI-D input, or For a complete listing of pin • configurations for all signal and For Twin-Link DVI, Input 9 (DVI) is the Main input, Input 10 (DVI/HDMI) is the Sub input. -
Page 16: 3D Connections
Digital Projection SIGNAL INPUTS AND OUTPUTS Connection Guide Titan 800 3D series 3D Connections Notes 3D sources up to 60Hz requiring frame doubling and left/right interleaving • Connect to any of the Inputs on the Rear Connection Panel. For a complete listing of pin •... -
Page 17: Supported Signal Input Modes
Digital Projection SUPPORTED SIGNAL INPUT MODES Connection Guide Titan 800 3D series Supported Signal Input Modes Notes Signal Resolution Refresh Total Horizontal Rate number Frequency ( Hz ) of lines (kHz) SDTV 480i 720 x 480 15.73 ü ü ü... -
Page 18: Control Connections
Digital Projection CONTROL CONNECTIONS Connection Guide Titan 800 3D series Control Connections Notes Update Port For a complete listing of pin • The Update Port is used to download via LAN, firmware updates issued from time to time configurations for all signal and by Digital Projection. -
Page 19: Wiring Details
Digital Projection WIRING DETAILS Connection Guide Titan 800 3D series Wiring Details Notes Signal inputs and outputs Component input For full details of all input settings, see the Global Settings/Input 4 x 75 ohm BNC Configuration menu, and the RGsB... -
Page 20: Dvi-I Input
Digital Projection WIRING DETAILS Connection Guide Titan 800 3D series DVI-I input Notes 24 way D-type connector TMDS Data 2- TMDS Data 2+ For full details of all input settings, TMDS Data 2 Shield see the Global Settings/Input unused Configuration menu, and the... -
Page 21: Hdmi Input
Digital Projection WIRING DETAILS Connection Guide Titan 800 3D series HDMI input Notes 19 way type A connector TMDS Data 2+ TMDS Data 2 Shield For full details of all input settings, TMDS Data 2- see the Global Settings/Input TMDS Data 1+... -
Page 22: S-Video Input
Digital Projection WIRING DETAILS Connection Guide Titan 800 3D series S-Video input Notes 4 pin mini-DIN Y Ground C Ground For full details of all input settings, Luminance (Y) see the Global Settings/Input pin view of female connector Chrominance (C) -
Page 23: Control Connections
Digital Projection WIRING DETAILS Connection Guide Titan 800 3D series Control connections Notes Sleeve Wired Remote control connection 3.5mm mini jack Note that plugging in the remote control cable will disable the infra- Power red. Ring Signal Ring Sleeve Ground... -
Page 24: Lan Connection
Digital Projection WIRING DETAILS Connection Guide Titan 800 3D series LAN connection Notes TCP Port number 10001 Only one remote connection (RS232 or LAN) should be used at any one 10BaseT Unshielded Twisted Pair cable time. The standard wire colours as as follows:... - Page 25 OPERATING GUIDE Titan 800 3D series High Brightness Digital Video Projector Rev A June 2012...
- Page 26 Digital Projection CONTENTS Operating Guide Titan 800 3D series CONTENTS Using the Menus ..................Op_1 Edge Blend menu ................. Op_17 Menus and sub-menus ................Op_1 PIP menu ....................Op_19 Drop-down lists ..................Op_2 3D menu ....................Op_20 Sliders ..................... Op_3 Lamps menu ..................
-
Page 27: Using The Menus
Digital Projection Operating Guide Titan 800 3D series Using the Menus Notes Use the buttons on the projector control panel or on the remote control, to access the menu system. Some menu items may not be • available due to settings in other To open or close the on-screen display (OSD), press menus. -
Page 28: Drop-Down Lists
Digital Projection USING THE MENUS Operating Guide Titan 800 3D series Drop-down lists Notes To use a drop-down list, press , select an item using , then press again or press to exit without changing. Some menu items may not be available due to settings in other menus. -
Page 29: Sliders
Digital Projection USING THE MENUS Operating Guide Titan 800 3D series Sliders Notes To use a slider, press to adjust it. Some menu items may not be available due to settings in other menus. These will be grayed out on the actual menu. -
Page 30: Editing Fields
Digital Projection USING THE MENUS Operating Guide Titan 800 3D series Editing fields Notes Some features require a text or numeric field to be edited. Some menu items may not be • To edit a field, first select it using , then press available due to settings in other menus. -
Page 31: A Tour Of The Menus
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series A Tour of the Menus Notes See also Using the Menus earlier in this guide and Menu Map later in Main Menu this guide. Main Menu •... -
Page 32: Lens Menu
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Lens menu Notes Zoom Main Menu To move the lens in or out: Lens Select Zoom In Zoom Out , then press When the image is the desired size, select... -
Page 33: Lens Presets
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Lens Presets Notes This menu allows you to save up to five custom lens presets, which you can recall later. Main Menu Lens Lens Presets Rev A June 2012... -
Page 34: Image Menu
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Image menu Notes • Brightness, Contrast, Gamma, Hue and Saturation Set the slider or select from the drop-down list as required, to improve the quality of the image. -
Page 35: Color Menu
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Color menu Notes Gamut Main Menu gives you the brightest possible image. Peak Color Choose HDTV for high definition standards and SDTV for standard definition standards. A value between... -
Page 36: Geometry Menu
Examples further in this section. • Warp Map Using an external Digital Projection computer application, up to eight customised warp maps can be created and uploaded to the projector. If Warp is selected, and any warp maps have been uploaded, you can select from the drop-down list. -
Page 37: Size & Position
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Size & Position Notes • Enable • to choose: Setting Main Menu Geometry , in which case these settings will be applied to all signals on all inputs. -
Page 38: Aspect Ratios Explained
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Aspect Ratios Explained Notes The appearance of a projected image on the screen depends on a combination of the following: • The DMD resolution: DMD, or digital micromirror •... -
Page 39: Aspect Ratio Examples For Dmd Resolution Sx+ (Sxga+)
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Aspect Ratio Examples for DMD Resolution SX+ (SXGA+) Notes Unused screen area Unused screen area Unused screen area Unused screen area Source: 4:3, Aspect Ratio: Source /... -
Page 40: Aspect Ratio Examples For Dmd Resolution 1080P
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Aspect Ratio Examples for DMD Resolution 1080p Notes Cropped out part of the image Cropped out part of the image Source: 4:3, Aspect Ratio: Source Source: 4:3, Aspect Ratio: Fill Display, Anamorphic Source: 4:3, Aspect Ratio: Fill &... -
Page 41: Aspect Ratio Examples For Dmd Resolution Wuxga
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Aspect Ratio Examples for DMD Resolution WUXGA Notes Cropped out part of the image Cropped out part of the image Source: 4:3, Aspect Ratio: Source Source: 4:3, Aspect Ratio: Fill Display Source: 4:3, Aspect Ratio: Fill &... -
Page 42: Aspect Ratio Example: Theaterscope
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Aspect Ratio Example: TheaterScope Notes setting is used in combination with an anamorphic lens to restore 2.35:1 images packed into a 16:9 frame. Such images TheaterScope are projected with black lines at the top and bottom of the 16:9 screen to make up for the difference in aspect ratios. -
Page 43: Edge Blend Menu
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Edge Blend menu Notes When several projectors are used to create a large tiled image, the edges need to be blended to avoid the overlaps appearing brighter than the rest of the image. - Page 44 Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Blend Width Notes • Use this to set the width of the blended regions. To apply the settings in these menus, use the command at the bottom of each page.
-
Page 45: Pip Menu
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series PIP menu Notes Two images can be combined, in three different ways using this feature. The PIP menu is available only when Setup > System > Configuration... -
Page 46: 3D Menu
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series 3D menu Notes • 3D Enable as required. • Use the to reduce flicker when the incoming 3D video signal has a low frame Main Menu Frame Rate Multiplier rate. -
Page 47: Lamps Menu
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Lamps menu Notes to choose between . In the Operation Lamp 1 + Lamp 2 Lamp 1 Lamp 2 Auto 1 Auto 1 mode, the lamp usage will be spread evenly over the two lamps, over time. -
Page 48: Setup Menu
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Setup menu Notes • Orientation Depending on how the projector is mounted, select the appropriate setting from the drop-down list. Main Menu Setup • Latency Affects interlaced sources only. For fastest response, the... -
Page 49: Input Configuration
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Input Configuration Notes This menu allows adjustment of various technical parameters specific to each of the signal inputs, regardless of which input is being used. Main Menu •... -
Page 50: Network
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Network Notes The fields at the bottom of the menu show the current settings. • DHCP if the IP Address is to be assigned by a DHCP server, or if it is to be set here. -
Page 51: On Screen Display
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series On Screen Display Notes • Select a display Language from the drop-down list. • The menus will disappear if no buttons are pressed within the selected from the drop-down... -
Page 52: System
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series System Notes • Configuration : switch between Edge Blend The other settings in this menu are provided mainly to allow control from the Web Configuration Utility. Main Menu •... -
Page 53: Information Menu
Digital Projection A TOUR OF THE MENUS Operating Guide Titan 800 3D series Information menu Notes This menu gives information about lamp operating times, software and hardware configuration, input source and network settings. Please note that the values shown in the menus on this page are examples and may differ significantly on your OSD. -
Page 54: Menu Map
Digital Projection MENU MAP Operating Guide Titan 800 3D series Menu Map Notes Main Menu Sub Menus Some of the information in this menu map is summarised. See the Input Selection actual menu on the projector for full CVBS 1, CVBS 2, S-Video, Component, VGA, 3G-SDI, DVI, HDMI, Test Pattern, Main/DVI, Sub/HDMI, Dual Pipe detail. -
Page 55: Image
Digital Projection MENU MAP Operating Guide Titan 800 3D series Main Menu Sub Menus Notes Image Some of the information in this Brightness (slider, value range -50 — 0 — 50) menu map is summarised. See the Contrast (slider, value range -50 — 0 — 50) actual menu on the projector for full Gamma 1.0 , 1.8, 2.0, 2.2, 2.4, 2.6, 2.8... -
Page 56: Geometry
Digital Projection MENU MAP Operating Guide Titan 800 3D series Main Menu Sub Menus Notes Geometry Some of the information in this Aspect Ratio Source, Fill Display, Fill & Crop, Anamorphic, TheaterScope menu map is summarised. See the H Position (slider, value range -50 — 0 — 50) actual menu on the projector for full V Position (slider, value range -50 —... -
Page 57: Edge Blend
Digital Projection MENU MAP Operating Guide Titan 800 3D series Main Menu Sub Menus Notes Edge Blend Some of the information in this Array Width (slider, value range 1 — 4) menu map is summarised. See the Array Height (slider, value range 1 — 4) actual menu on the projector for full Array H Position (slider, value range 0 —... -
Page 58: Op_32
Digital Projection MENU MAP Operating Guide Titan 800 3D series Main Menu Sub Menus Notes Some of the information in this Option Off, PIP, PAP, POP menu map is summarised. See the Input CVBS 1, CVBS 2, S-Video, Component, VGA, 3D-SDI, DVI, HDMI... -
Page 59: Setup
Digital Projection MENU MAP Operating Guide Titan 800 3D series Main Menu Sub Menus Notes Setup Orientation Desktop Front, Desktop Rear, Ceiling Front, Ceiling Rear Some of the information in this menu map is summarised. See the Latency Lowest, Best Video... -
Page 60: Web Configuration Utility
Digital Projection WEB CONFIGURATION UTILITY Operating Guide Titan 800 3D series Web Configuration Utility Notes The LAN IP Address of the projector can be set by using the Network submenu, which can be found in the Setup menu. For full details of how to use the... - Page 61 Digital Projection WEB CONFIGURATION UTILITY Operating Guide Titan 800 3D series Examples - continued from previous page Notes • Sliders are represented by similar sliders, as in the Array Width Array Height sliders shown here. For full details of how to use the •...
-
Page 62: Uploading Custom Test Patterns
Digital Projection WEB CONFIGURATION UTILITY Operating Guide Titan 800 3D series Uploading custom test patterns Notes Using the Web Configuration Utility, you can upload up to four custom test patterns. To upload a custom test pattern: The file you wish to upload needs... -
Page 63: Using The Discovery Tool To View Your Network
Digital Projection WEB CONFIGURATION UTILITY Operating Guide Titan 800 3D series Using the Discovery Tool to view your network Notes The Discovery Tool allows you to view the IP addresses of all projectors in your network. The tool opens the following page in your browser:...
