Getting Ready

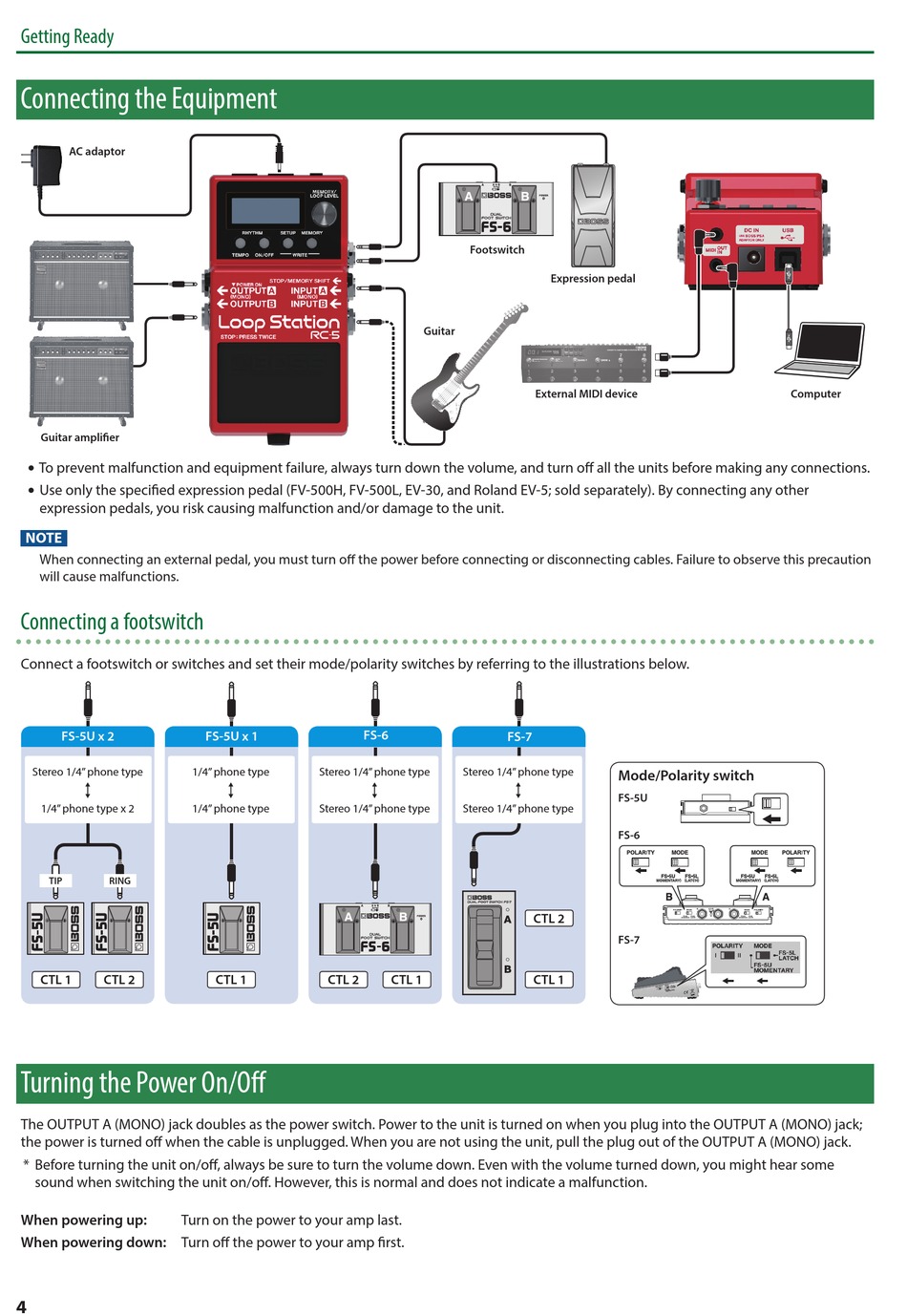

Connecting the Equipment

AC adaptor
Guitar amplifier
5 To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
5 Use only the specified expression pedal (FV-500H, FV-500L, EV-30, and Roland EV-5; sold separately). By connecting any other
expression pedals, you risk causing malfunction and/or damage to the unit.
NOTE
When connecting an external pedal, you must turn off the power before connecting or disconnecting cables. Failure to observe this precaution
will cause malfunctions.
Connecting a footswitch
Connect a footswitch or switches and set their mode/polarity switches by referring to the illustrations below.
FS-5U x 2
Stereo 1/4" phone type
1/4" phone type x 2
TIP RING
CTL 1 CTL 2

Turning the Power On/Off

The OUTPUT A (MONO) jack doubles as the power switch. Power to the unit is turned on when you plug into the OUTPUT A (MONO) jack;
the power is turned off when the cable is unplugged. When you are not using the unit, pull the plug out of the OUTPUT A (MONO) jack.
* Before turning the unit on/off, always be sure to turn the volume down. Even with the volume turned down, you might hear some
sound when switching the unit on/off. However, this is normal and does not indicate a malfunction.
When powering up: Turn on the power to your amp last.
When powering down: Turn off the power to your amp first.
4
FS-5U x 1
1/4" phone type Stereo 1/4" phone type
1/4" phone type Stereo 1/4" phone type
CTL 1 CTL 2
Footswitch
Guitar
FS-6
FS-7
Stereo 1/4" phone type
Stereo 1/4" phone type
CTL 2
CTL 1 CTL 1
Expression pedal
External MIDI device
Mode/Polarity switch
FS-5U
FS-6
FS-7
Computer
