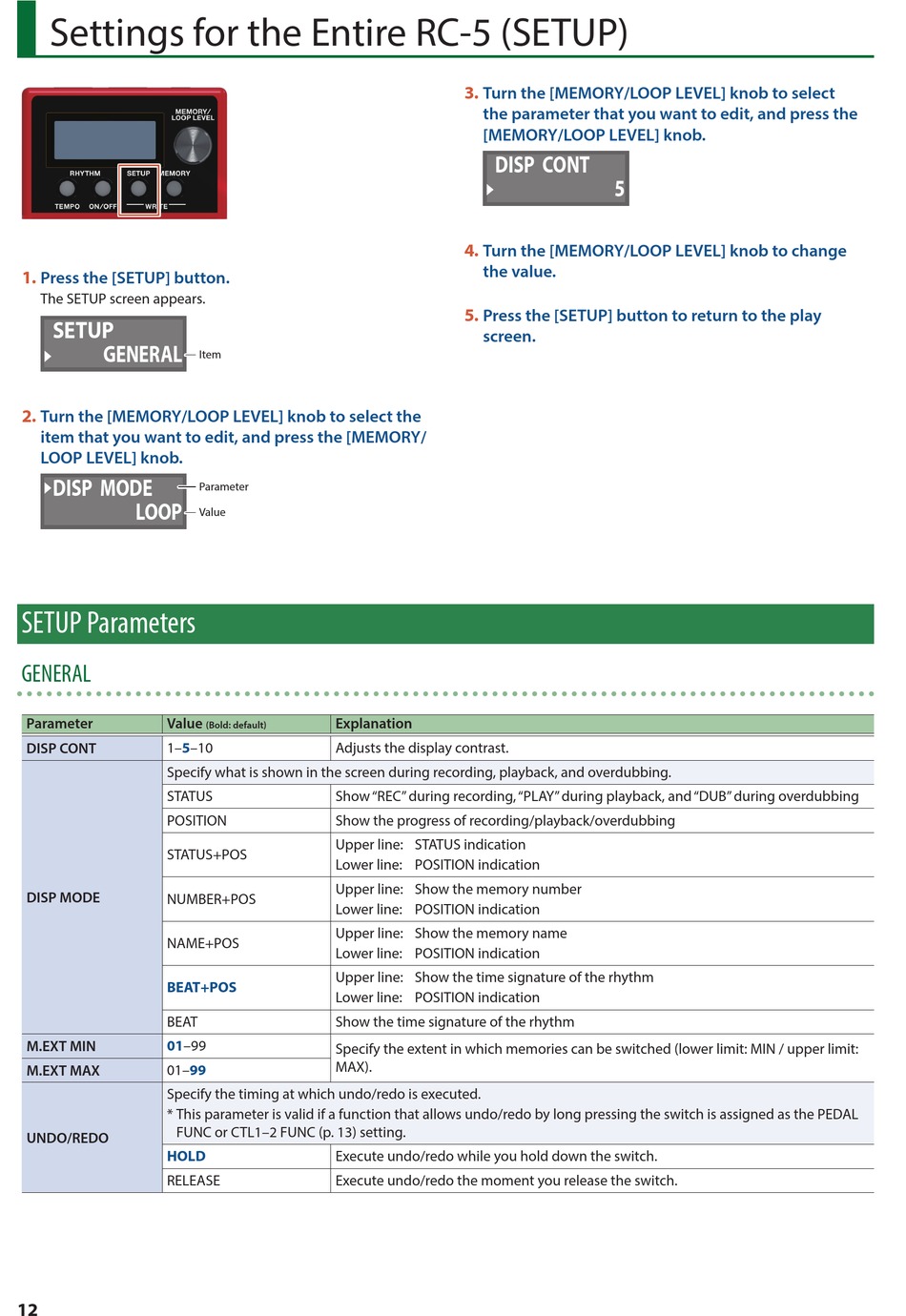

Settings for the Entire RC-5 (SETUP)

1 .
Press the [SETUP] button.
The SETUP screen appears.
SETUP
J
GENERAL
2 .
Turn the [MEMORY/LOOP LEVEL] knob to select the
item that you want to edit, and press the [MEMORY/
LOOP LEVEL] knob.
J
DISP MODE
LOOP

SETUP Parameters

GENERAL
Parameter Value
DISP CONT 1–5–10
Specify what is shown in the screen during recording, playback, and overdubbing.
STATUS
POSITION
STATUS+POS
DISP MODE
NUMBER+POS
NAME+POS
BEAT+POS
BEAT
01–99
M.EXT MIN
M.EXT MAX 01–99
Specify the timing at which undo/redo is executed.
* This parameter is valid if a function that allows undo/redo by long pressing the switch is assigned as the PEDAL
FUNC or CTL1–2 FUNC (p. 13) setting.
UNDO/REDO
HOLD
RELEASE
12
Item
Parameter
Value
Explanation
(Bold: default)
Adjusts the display contrast.
Show "REC" during recording, "PLAY" during playback, and "DUB" during overdubbing
Show the progress of recording/playback/overdubbing
Upper line: STATUS indication
Lower line: POSITION indication
Upper line: Show the memory number
Lower line: POSITION indication
Upper line: Show the memory name
Lower line: POSITION indication
Upper line: Show the time signature of the rhythm
Lower line: POSITION indication
Show the time signature of the rhythm
Specify the extent in which memories can be switched (lower limit: MIN / upper limit:
MAX).
Execute undo/redo while you hold down the switch.
Execute undo/redo the moment you release the switch.
3 .
Turn the [MEMORY/LOOP LEVEL] knob to select
the parameter that you want to edit, and press the
[MEMORY/LOOP LEVEL] knob.
DISP CONT
J
5
4 .
Turn the [MEMORY/LOOP LEVEL] knob to change
the value.
5 .
Press the [SETUP] button to return to the play
screen.
