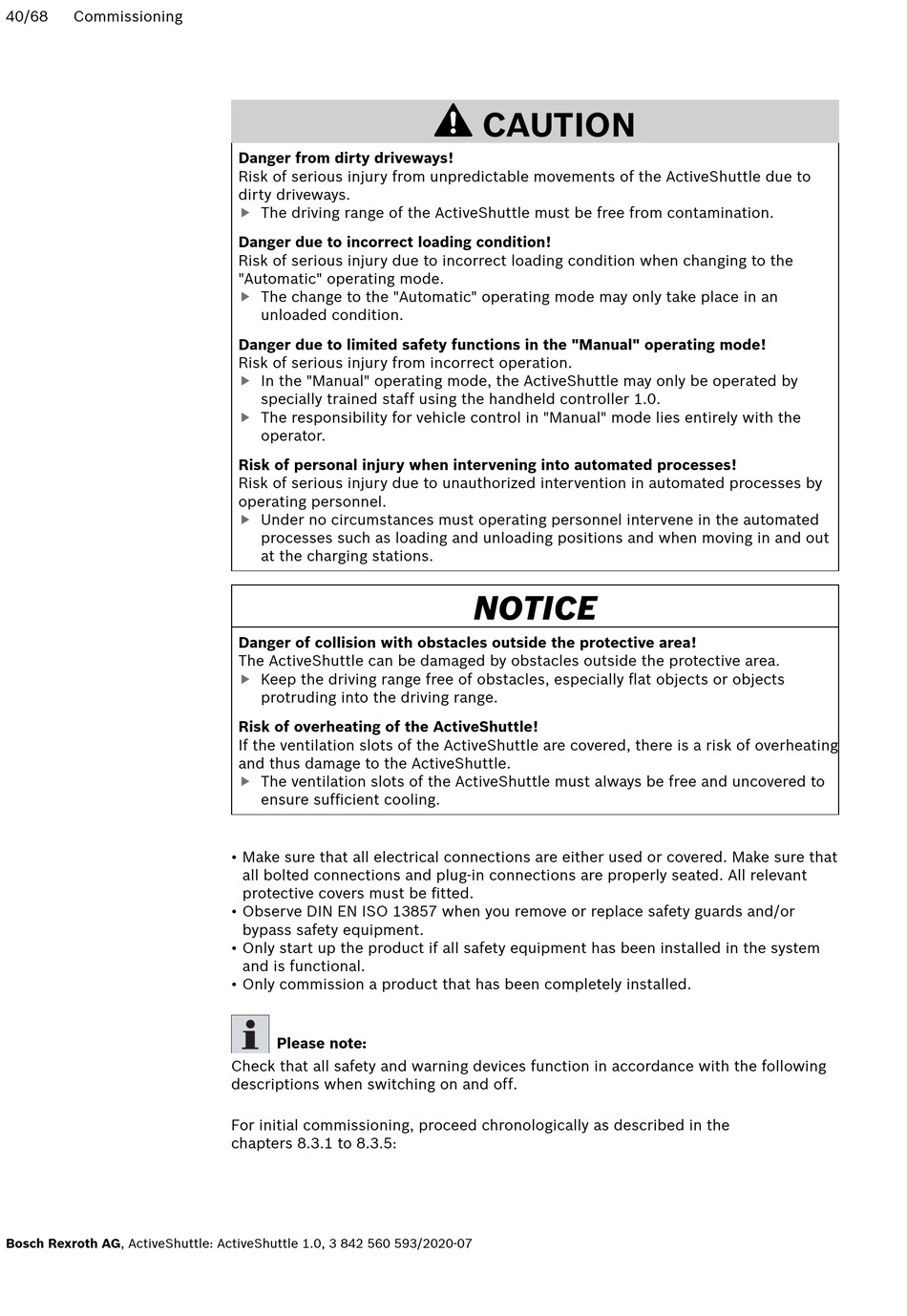

40/68
Commissioning
Bosch Rexroth AG, ActiveShuttle: ActiveShuttle 1.0, 3 842 560 593/2020-07
Danger from dirty driveways!
Risk of serious injury from unpredictable movements of the ActiveShuttle due to
dirty driveways.
The driving range of the ActiveShuttle must be free from contamination.
Danger due to incorrect loading condition!
Risk of serious injury due to incorrect loading condition when changing to the
"Automatic" operating mode.
The change to the "Automatic" operating mode may only take place in an
unloaded condition.
Danger due to limited safety functions in the "Manual" operating mode!
Risk of serious injury from incorrect operation.
In the "Manual" operating mode, the ActiveShuttle may only be operated by
specially trained staff using the handheld controller 1.0.
The responsibility for vehicle control in "Manual" mode lies entirely with the
operator.
Risk of personal injury when intervening into automated processes!
Risk of serious injury due to unauthorized intervention in automated processes by
operating personnel.
Under no circumstances must operating personnel intervene in the automated
processes such as loading and unloading positions and when moving in and out
at the charging stations.
Danger of collision with obstacles outside the protective area!
The ActiveShuttle can be damaged by obstacles outside the protective area.
Keep the driving range free of obstacles, especially fl at objects or objects
protruding into the driving range.
Risk of overheating of the ActiveShuttle!
If the ventilation slots of the ActiveShuttle are covered, there is a risk of overheating
and thus damage to the ActiveShuttle.
The ventilation slots of the ActiveShuttle must always be free and uncovered to
ensure suffi cient cooling.
• Make sure that all electrical connections are either used or covered. Make sure that
all bolted connections and plug-in connections are properly seated. All relevant
protective covers must be fi tted.
• Observe DIN EN ISO 13857 when you remove or replace safety guards and/or
bypass safety equipment.
• Only start up the product if all safety equipment has been installed in the system
and is functional.
• Only commission a product that has been completely installed.
Please note:
Check that all safety and warning devices function in accordance with the following
descriptions when switching on and off.
For initial commissioning, proceed chronologically as described in the
chapters 8.3.1 to 8.3.5:
CAUTION
NOTICE
