26/68 About this product
Warning device
Bluespot
(G)
Warning signal lamps
(F)
Battery charge indicator
(R)
ON/OFF button
(N)
Bosch Rexroth AG, ActiveShuttle: ActiveShuttle 1.0, 3 842 560 593/2020-07
5.3.1

Signaling

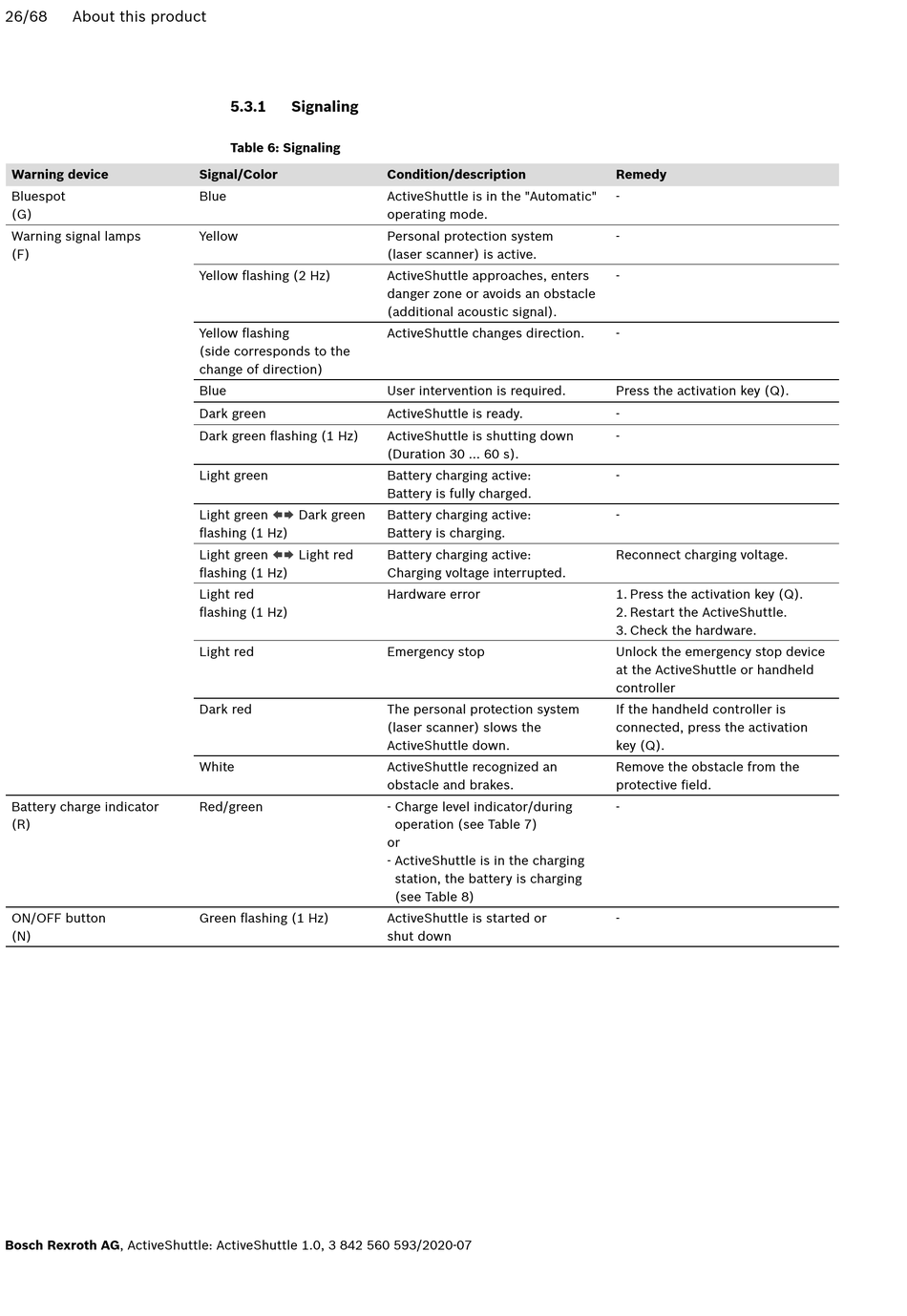

Table 6: Signaling
Signal/Color
Blue
Yellow
Yellow fl ashing (2 Hz)
Yellow fl ashing
(side corresponds to the
change of direction)
Blue
Dark green
Dark green fl ashing (1 Hz)
Light green

Light green Dark green
fl ashing (1 Hz)

Light green Light red
fl ashing (1 Hz)
Light red
fl ashing (1 Hz)
Light red
Dark red
White
Red/green
Green fl ashing (1 Hz)
Condition/description
ActiveShuttle is in the "Automatic"
operating mode.
Personal protection system
(laser scanner) is active.
ActiveShuttle approaches, enters
danger zone or avoids an obstacle
(additional acoustic signal).
ActiveShuttle changes direction.
User intervention is required.
ActiveShuttle is ready.
ActiveShuttle is shutting down
(Duration 30 ... 60 s).
Battery charging active:
Battery is fully charged.
Battery charging active:
Battery is charging.
Battery charging active:
Charging voltage interrupted.
Hardware error
Emergency stop
The personal protection system
(laser scanner) slows the
ActiveShuttle down.
ActiveShuttle recognized an
obstacle and brakes.
- Charge level indicator/during
operation (see Table 7)
or
- ActiveShuttle is in the charging
station, the battery is charging
(see Table 8)
ActiveShuttle is started or
shut down
Remedy
-
-
-
-
Press the activation key (Q).
-
-
-
-
Reconnect charging voltage.
1. Press the activation key (Q).
2. Restart the ActiveShuttle.
3. Check the hardware.
Unlock the emergency stop device
at the ActiveShuttle or handheld
controller
If the handheld controller is
connected, press the activation
key (Q).
Remove the obstacle from the
protective fi eld.
-
-
