ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Connectors Labeling

The connectors' label, affixed to the controller, shows the location of all connectors available with
requested configuration.

Power Connections

Power connections are made to a two-terminal connector labeled POWER on Figure 6. The controller will
operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention.
14
Find Quality Products Online at:
Do not connect any equipment other than Precision
Digital's expansion modules, cables, or controllers to
the RJ45 M-LINK connector. Otherwise damage will
Warning!
occur to the equipment and the controller.

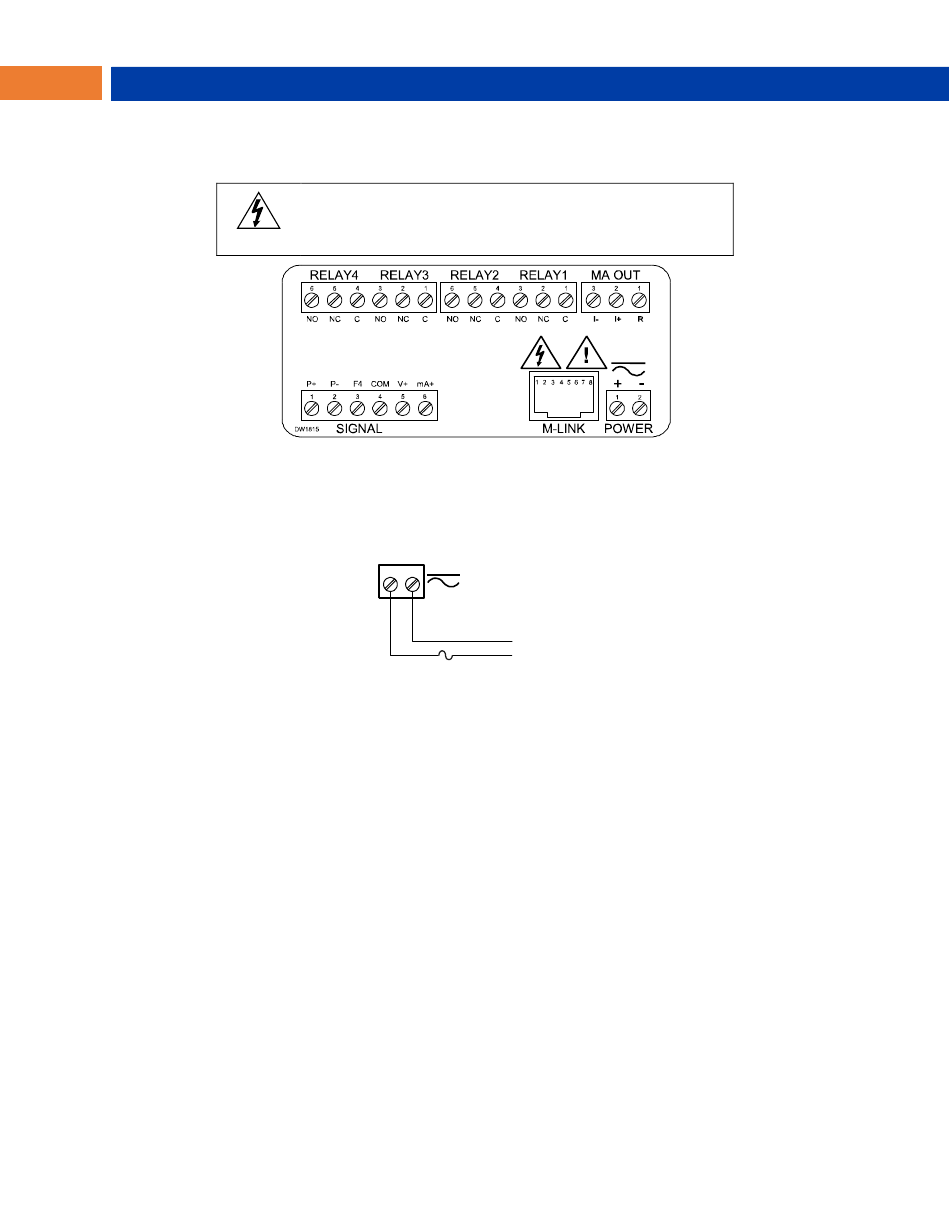

Figure 3: Connector Labeling for Fully Loaded PD8-6210

POWER
+
Required External Fuse:
5 A max, 250 V Slow Blow

Figure 4: Power Connections
