RLD-H10P Refrigerant Leak Detector
The RLD-H10P is a professional grade leak detector
for use by refrigeration and air conditioning
technicians. This detector senses all CFC, HCFC, and
HFC refrigerants and blends, such as R12, R502, R22,
R404a, R507, and R134a among others. The
RLD-H10P is self-powered with a rechargeable
battery. A full line of accessories and maintenance kits
is also available, including replacement sensors,
tune-up kits, probe extensions, battery chargers, and
leak vial bottles.
Positive Ion Emission
Heated Diode Sensor
Rechargeable Battery
High Quality Air Pump
Auto Balance Circuit
Visual and Audible Signal
Exceeds SAE J1627
Moving Probe Specification
External Calibration Source
© 1996 Johnson Controls, Inc.
Part No. 24-7929-12, Rev. A
Code No. LIT-125604
Features and Benefits
Provides the most sensitivity available today, while
still detecting all halogenated refrigerant gases
Enhances portability--no external power required
Supplies constant air flow to sensor so it responds
quickly to leaks; also helps sensor recover quickly
after exposure to refrigerant so leak can be verified
Compensates for background refrigerant levels
Facilitates sensing in noisy equipment rooms with
°
360
visibility and piercing tone;
Frequency of noise/light indicates magnitude of leak
Minimizes call-backs because the leak is found the
first time, is verifiable, and the fix can be confirmed
Indicates when the sensor is working properly and
serves as a reference point to judge leak size
FANs 125, 121
Product/Technical Bulletin RLD-H10P

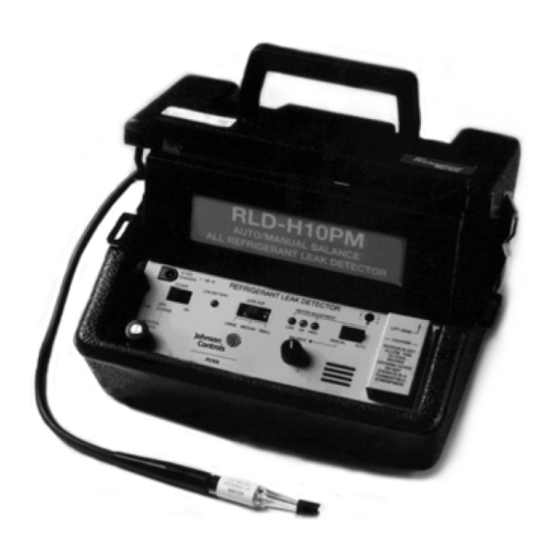

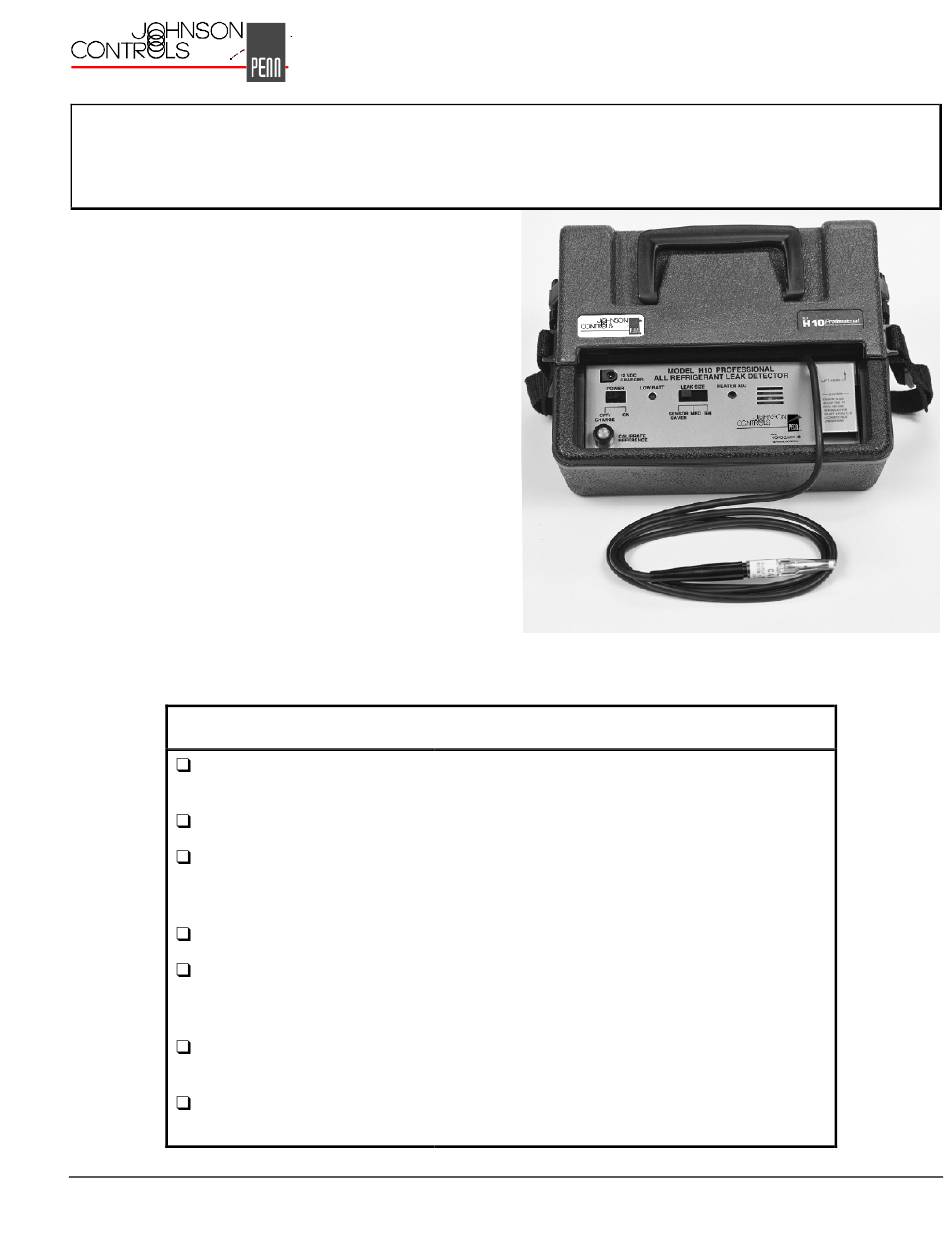

Figure 1: RLD-H10P Leak Detector
Issue Date 0396
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls PENN RLD-H10P
Summary of Contents for Johnson Controls PENN RLD-H10P
- Page 1 External Calibration Source Indicates when the sensor is working properly and serves as a reference point to judge leak size © 1996 Johnson Controls, Inc. Part No. 24-7929-12, Rev. A Code No. LIT-125604...
- Page 2 pplication Overview ccessories Growing concern over the effects of certain refrigerants on the atmosphere has generated a strong motive to eliminate system leaks and to develop safer refrigerants. With the RLD-H10P, you can be confident that your instrument will provide the Figure 3: RLD-H10-100--14 in.
- Page 3 peration alibration and Verification The leak vial may be used as often as necessary to assure proper operation of the RLD-H10P, and to WARNING: Personal Injury Hazard. assist in determining the size of the leak. When using Do not use the RLD-H10P in the small leak range position, a leak of HFC causing an explosive or combustive an audible signal equal to that produced by the...
- Page 4 harging the Batteries ips for Finding Leaks • The RLD-H10P will run continuously for approximately Use the black rubber probe tip whenever possible 1.5 hours on a fully charged battery. When the battery and hold the probe approximately 1/4 in. above the light is lit, the unit should be recharged.
-
Page 5: Replacing The Sensor
aintenance Replacing the Filter and Airflow Indicator Replacing the Sensor To protect the air pump from damage due to foreign The sensor is a plug-in unit that is thrown away when particles and moisture, replace the filter as it becomes expended. - Page 6 1/16th of a turn clockwise. (See Figure 8.) Allow a minute for the sensor to heat, then recheck. Audio normal; lamp does Burned-out or damaged Return unit to your Johnson Controls/PENN representative. not flash probe lamp Responds continuously in Filter is clogged Replace the filter (RLD-H10-602R).
- Page 7 Units under warranty will be shipped to priority of shipment with which it was received. Johnson Controls/PENN for repairs. The repairs will be completed within 24 hours after receipt by the repair center, and the unit will be returned to your Johnson Controls/PENN representative at the same priority of shipment with which it was received.
- Page 8 The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.
