- Page 1 USER MANUAL OAKWORKS ® Libra www.oakworks.com · 717.235.6807...
- Page 2 OAKWORKS , Inc. tial damages in connection with or ® arising out of the furnishing, per- formance, or use of this document OAKWORKS is a registered and the program material which it ® trademark of OAKWORKS , Inc. describes. ®...
-
Page 3: Table Of Contents
Product Use Description ....................1 Important Safety Instructions Symbol Identification ................... 1 Safety Instructions .................... 1-2 Product Description & Photo Clodagh Libra ...................... 3 Installation Facility Plumbing Instructions ................4-5 Facility Electrical Instructions ................6 Grounding ......................6 Directions for Use Control Operations .................... -
Page 4: Product Use Description
P R O D U C T U S E D E S C R I P T I O N The Clodagh Libra is a powered positioning table used to support the client during spa treatment, massage, pedicure and manicure procedures. It is intended to be operated by a healthcare profes- sional in a spa environment. - Page 5 Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use. 4. Keep the cord away from heated surfaces.
-
Page 6: Clodagh Libra

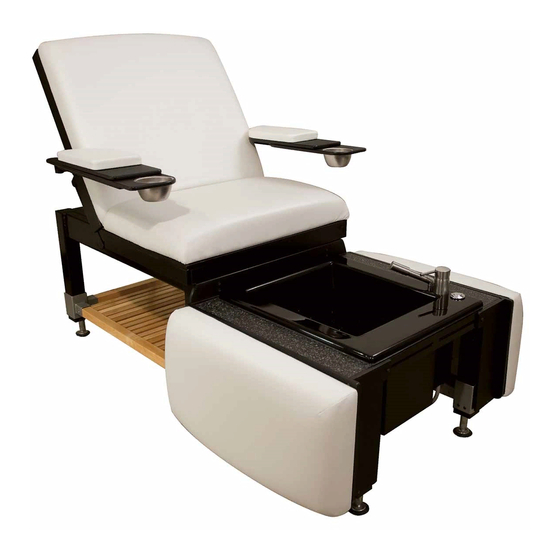

PRODUCT DESCRIPTION Clodagh Libra Electronic Backrest Manicure Arm Rests (2) (optional) Electronic Seat Pedi Foot Bath Hydraulic Lift Columns (4) Storage Shelf Manual Leg Removable Rests (2) Foot Rest STANDARD SPECIFICATIONS Motion 1 Powered 25” - 33” (64-84cm.) Height Range Patient Capacity 500 lbs. -
Page 7: Installation
INSTALLATION The table comes completely assembled and ready to use. Plug the cord into a functioning GFCI outlet that is rated for the table. Arrange the power cord and foot switch so that they will not create a tripping hazard. Place the controls in a safe location where they are convenient and accessible. - Page 8 INSTALLATION The table comes equipped with a faucet that has flexible 3/8” compression lines with female ends. The customer supplied flexible line will need to have male 3/8” compression to be connected to the faucet supply line. Male/Female fitting connection Table - Female 3/8”...
-
Page 9: Facility Electrical Instructions
INSTALLATION F A C I L I T Y E L E C T R I C A L I N S T R U C T I O N S CAUTION When installed in the United States, the electrical wiring of this table must meet the requirements of the National Electric Code (NEC) and any applicable state or local codes. -
Page 10: Directions For Use
DIRECTIONS FOR USE C O N T R O L O P E R A T I O N S The Foot Control and Optional Hand Control operate all functions of the table with the touch of a but- ton. Follow the directions below to access these functions. Seat Back Back Height up... -
Page 11: Moving The Table
DIRECTIONS FOR USE M O V I N G T H E T A B L E CAUTION Before moving the table, disconnect the power cord from the power outlet. The table weighs as much as 342 lbs. (155 kg.) Never lift the table by grasping the table top. You could damage the table and the electronics that run the tabletop. -
Page 12: Leg Rest Use
DIRECTIONS FOR USE L E G R E S T U S E CAUTION • Maximum Leg Rest load weight: 125 lbs. (57 kg.) CLOSING THE LEG REST: OPENING THE LEG REST: With both hands, gently lift the leg rest and With both hands, gently lift the leg rest slightly push towards the center of the table. -
Page 13: Storage Shelf Use
H Y D R A U L I C D A I L Y C Y C L I N G The Clodagh Libra uses hydraulics and hydraulic fluids to adjust the table height. Maintaining the quiet operation of your table requires that you fully cycle your table (up & down) twice per day. Cycling of the table will maintain the lubrication within the hydraulic cylinders for continued smooth and quiet operation. -
Page 14: Foot Bath Use
DIRECTIONS FOR USE F O O T B A T H U S E CAUTION Risk of accidental injury. Exercise care when entering or exiting of the foot bath. Invalid or disabled persons should not use the hydro foot bath without trained supervision. Risk of scalding: Water temperatures in excess of 104º... - Page 15 DIRECTIONS FOR USE CLEANING THE FOOT BATH: To maintain your pedicure sink and its pipeless jets at maximum level of hygiene, thoroughly clean the tub shell and jets after each use with a nonabrasive antibacterial cleaner, rinse thoroughly and dry completely. NEVER use abrasive cleaners on any part of the appliance. DISASSEMBLY &...
-
Page 16: Quicklock Face Rest
DIRECTIONS FOR USE Q U I C K L O C K F A C E R E S T (A C C E S S O R Y O P T I O N) • QuickLock Face Rest Weight Limit - 25 lbs (11.3 kg) CAUTION •... -
Page 17: Adjustable Arm Rest Installation And Adjustment
DIRECTIONS FOR USE ADJUSTABLE SIDE ARM RESTS (ACCESSORY OPTION) CAUTION • Do not use the arm rest for client support during the mounting or dismounting of the chair. • The arm rest is not designed to support the client’s weight. TO INSTALL THE ARM RESTS: The Arm Rests adjust automatically as the back rest moves to remain parallel to the floor. -
Page 18: Boiance Shelf Support
DIRECTIONS FOR USE BOIANCE SHELF SUPPORT: (ACCESSORY OPTION) • Boiance Shelf Support Weight Limit - 25 lbs (11.3 kg) CAUTION • Do not put excessive weight or pressure on the Boiance Shelf Support. • Excessive pressure can cause premature failure of Boiance Shelf Support. USING THE BOIANCE SHELF SUPPORT: The shelf and bracket used together allow you to create the perfect place for clients’... -
Page 19: Cleaning & Disinfection
Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disin- fecting an OAKWORKS ® table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. OAKWORKS ® recommends that the table be positioned in the flat position during the cleaning process. -
Page 20: Inspections & Maintenance
• Clean unusual buildup of dirt on the table and/or parts of the table not normally cleaned on a regular basis. • Check for tears or cracks in the upholstery. W A R R A N T Y View complete warranty details at www.oakworks.com... -
Page 21: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER M O D E L & S E R I A L N U M B E R S The model number and serial number are located under the leg rest section of the table. Model Number 16796025 LAPSEB312577ACTTZZPBST... -
Page 22: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Weight 342 lbs. (155 kg.) Lifting Capacity 500 lbs. (227 kg.) ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa ELECTRICAL SPECIFICATIONS... - Page 23 THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 24: Contact Information
USER MANUAL OAKWORKS ® Libra C O N T A C T I N F O R M A T I O N: OAKWORKS Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.oakworks.com Part No.: MMMNST0020-EN / SPA-RA-PM-48...
