- Page 1 Virg o I N S T R U C T I O N M A N U A L ™ www.oakworks.com · 717.235.6807...
- Page 2 Notice The information contained in this document is subject to change without notice and should not be construed as a commitment by Oakworks®, Inc. Oakworks®, Inc. assumes no responsibility for Printed in U.S.A. any errors that may appear in this document nor does it make expressed or implied warranty of All rights are reserved.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Symbol Identification ..................pg 2 Warnings & Safety Instructions ..............pg 3 Grounding Instructions .................. pg 5 Product Description & Table Specs ............. pg 6 Assembly & Installation .................. pg 7 Installation & Leveling Instructions ............... pg 8 Directions for Use Adjusting Height................ -
Page 4: Symbol Identification
SYMBOL IDENTIFICATION WARNINGS SYMBOL IDENTIFICATION This symbol, when used in this manual and on product labels, represents a caution. Be sure to read and comply with all precautions and warnings. This symbol, when used in documentation on this product, indicates danger and warns against an electrical shock hazard. -
Page 5: Warnings & Safety Instructions
SAFETY INSTRUCTIONS WARNINGS & CAUTIONS Improper use of this device can cause injury. Be sure to read all operating instructions prior to use to prevent injury to operator or client. WARNING Electrical Shock Hazard. To reduce the risk of electric shock, always disconnect the table from the electrical outlet before moving the table or doing any maintenance or troubleshooting procedures. - Page 6 WARNINGS & SAFETY INSTRUCTIONS WARNINGS WARNINGS & SAFETY INSTRUCTIONS WARNING Close supervision is necessary when this furnishing is used by, or near, children, invalids or disabled persons. DO NOT leave children alone or allow them to operate the controls. Keep controls out of reach of children. DO NOT allow children to crawl under the table. CAUTION Be certain that the table is completely lowered prior to discharging an ambulatory patient.
-
Page 7: Grounding Instructions
GROUNDING INSTRUCTIONS GROUNDING INSTRUCTIONS (ELECTRIC MODEL ONLY) This product must be grounded. If it should malfunction or breakdown, IMPORTANT grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be CAUTION plugged into an appropriate outlet that is properly installed and grounded in... -
Page 8: Product Description & Table Specs

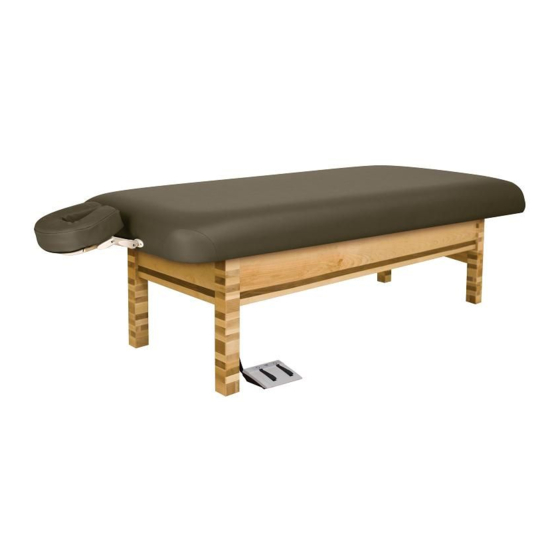

PRODUCT DESCRIPTION PRODUCT DESCRIPTION Flat top Shown with additional accessories; Maple base with QuickLock™ custom inlay stripe Face Rest with Boiance™ Crescent Butcher block leg design Foot Control Spring leg design with Backrest Top TABLE SPECIFICATIONS • Height Range: 24” - 34” (61-86 cm) • Width: 29” or 31” (74 cm or 79 cm) • Length: 73” (185 cm) -
Page 9: Assembly & Installation
INSTALLATION ASSEMBLY & INSTALLATION INSTALLATION PARTS INCLUDED: 1 - Table 4 - Main Legs 1 - Wrench 8 - Washers 8 - Nylock (depending on Nuts style specified) step 1 step 2 step 3 Locate the pack of legs & Finish removing all packing Place the leg bolt through hardware and set aside. -
Page 10: Installation & Leveling Instructions
INSTALLATION INSTALLATION Plug the cord into a functioning outlet that is rated for the table. (Electric models only) Arrange the power cord and foot switch (electric model only) so that they will not create a tripping hazard. Place the controls in a safe location where they are convenient and accessible. Keep the controls out of the way of all table mechanisms. -
Page 11: Directions For Use
DIRECTIONS FOR USE ADJUSTING HEIGHT OF THE TABLE The o Virgo™ comes complete with a foot control or manual hand crank ® akworks that operates the height with ease. Height Control - Electric Model Operate the foot control as shown below to raise or lower the height of the table. When operating the table’s controls, be sure to observe all cautions and warnings as given in the manual. -
Page 12: Quicklock™ Face Rest & Head Rest
DIRECTIONS FOR USE QUICKLOCK™ FACE REST & HEAD REST QUICKLOCK™ FACE REST: Be sure to use either the face rest or head rest for all treatments that require your client Be sure to read all to lay flat. Double articulating action provides nearly limitless positioning options with cautions, warnings the QuickLock™... -
Page 13: Moving Your Table
DIRECTIONS FOR USE MOVING THE VIRGO™ CAUTION The table weighs as much Grasp as 200 lbs. DO NOT lift or at base corner move the unit without using at low height range proper safety procedures or equipment. DO NOT turn the table on its side for any The Virgo™... -
Page 14: Care & Cleaning
CARE & CLEANING UPHOLSTERY CLEAN your upholstered items when needed using a mild solution of 4:1 diluted non-alcohol cleaner such as Formula 409 , Fantastik , or ® ® Be sure to read all Green Windex ® cautions, warnings and instructions given DISINFECT your fabric with Protex, MadaCide, MadaWipe, Accell in the manual to prevent TB, Virox... -
Page 15: Power Lead Plugs
PART IDENTIFICATION POWER LEAD PLUGS POWER LEAD PLUGS IMPORTANT Part #: Voltage (AC) Power Cord Plug akwork 7791 120v 60 Hz 3 prong grounded these parts are for North America identification only; they are not field serviceable items. 7791-03 220v 50 Hz Continental Plug; Europe/Italy 7791-04 220v 50 Hz Swiss plug; Switzerland 7791-02 220v 50 Hz... -
Page 16: Electrical Specifications & Accessory Part Numbers
SPECIFICATIONS ELECTRICAL SPECIFICATIONS North America Europe Japan/Korea Designed For: 100 VAC/20 amps Voltage/Current Service 120 VAC/20 amps 220 VAC/10 amps Current Draw 4.1 Amps 2.1 Amps 4.9 Amps 50/60 Hz Input Frequency 60 Hz 50 Hz 500 W Power Consumption 500 W 500 W 24 VDC Table Actuator Voltage... -
Page 17: Warranty Information
WARRANTY WARRANTY For full warranty details, please visit www.oakworks.com All warranties are limited to factory-provided replacement parts, factory repair or replacement, at the discretion of O ® akworks All warranties exclude damage caused by improper set-up, accident, abuse, misuse, neglect, use for other than intended purpose or reasonable wear such as tears in the upholstery. - Page 18 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 19 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 20: Contact Information
I N S T R U C T I O N M A N U A L CONTACT INFORMATION: Inc. ® akworks 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com Manual Part Number MMMNST0014-EN Revision: A Revision date: 04/24/2015 Edition 1, English Printed in USA...
