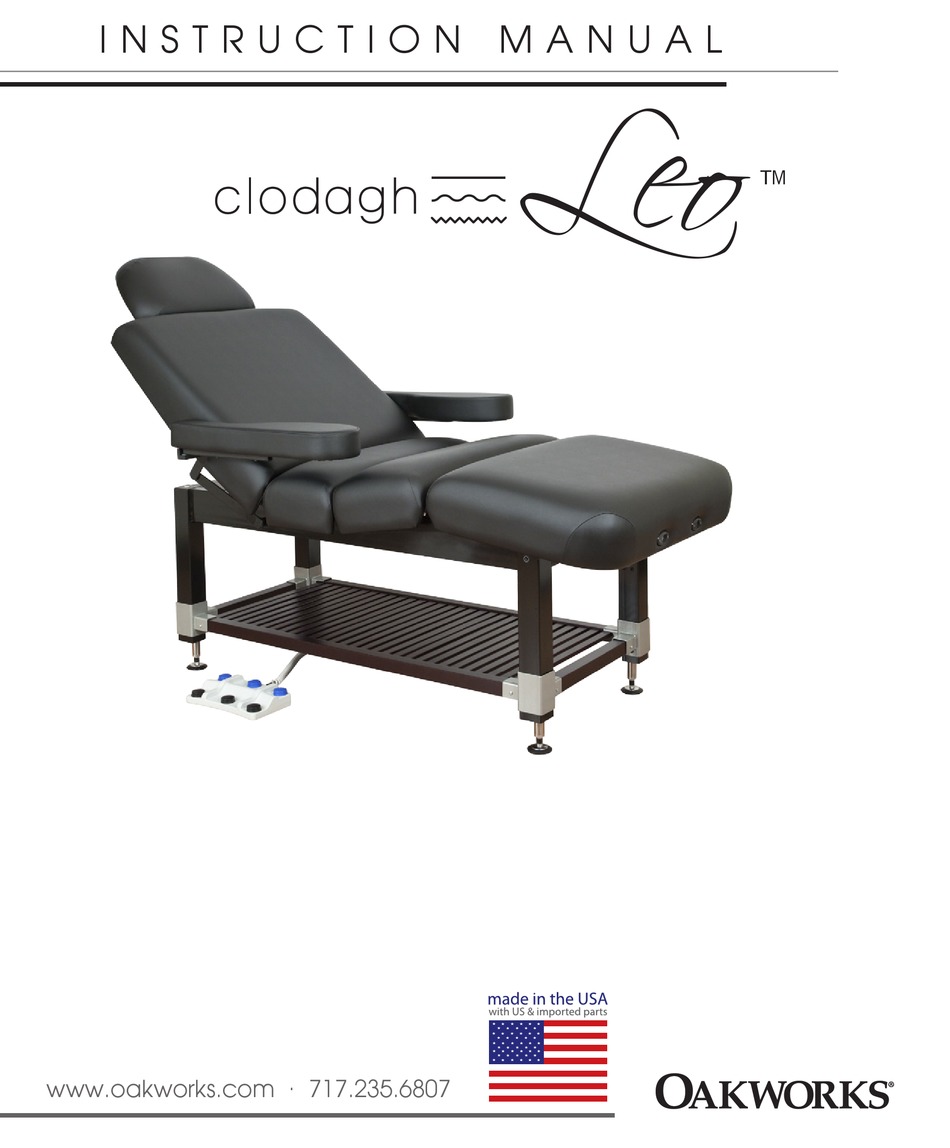

- Page 1 I N S T R U C T I O N M A N U A L ™ www.oakworks.com · 717.235.6807...
- Page 2 The information contained in this document is subject to change without notice and should not All rights are reserved. No be construed as a commitment by Oakworks®, Inc. part of this document may be Oakworks®, Inc. assumes no responsibility for...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Symbol Identification ....................2 Warnings & Safety Instructions ................3 Grounding Instructions .................... 5 Product Description & Table Specs ............... 6 Installation & Leveling Instructions ................. 7 Directions for Use Daily Cycling ..................8 Adjusting Height and Top .............. -
Page 4: Symbol Identification
SYMBOL IDENTIFICATION WARNINGS SYMBOL IDENTIFICATION This symbol, when used in this manual and on product labels, represents a caution. Be sure to read and comply with all precautions and warnings. This symbol, when used in documentation on this product, indicates danger and warns against an electrical shock hazard. -
Page 5: Warnings & Safety Instructions
WARNINGS & SAFETY INSTRUCTIONS READ AND SAVE THESE WARNINGS & SAFETY INSTRUCTIONS INSTRUCTIONS Improper use of this device can cause injury. Be sure to read all operating instructions prior to use to prevent injury to operator or client. Electrical Shock Hazard. To reduce the risk of electric shock, always disconnect the table from DANGER the electrical outlet before moving the table or doing any maintenance... - Page 6 WARNINGS & SAFETY INSTRUCTIONS READ AND SAVE THESE WARNINGS INSTRUCTIONS WARNINGS & SAFETY INSTRUCTIONS This product is equipped with an interior accessory outlet. The total WARNING electrical load of equipment plugged into this set of outlets is not to exceed 840 watts. Close supervision is necessary when this furnishing is used by, or near, children, invalids or disabled persons.
-
Page 7: Grounding Instructions
WARNINGS & SAFETY INSTRUCTIONS (CONTINUED) GROUNDING INSTRUCTIONS READ AND SAVE THESE WARNINGS & SAFETY INSTRUCTIONS INSTRUCTIONS To remove the accessories from the shelf: Turn the accessory controls CAUTION to the off position and then disconnect the unit from the interior power source by removing the plug from the outlet. -
Page 8: Product Description & Table Specs

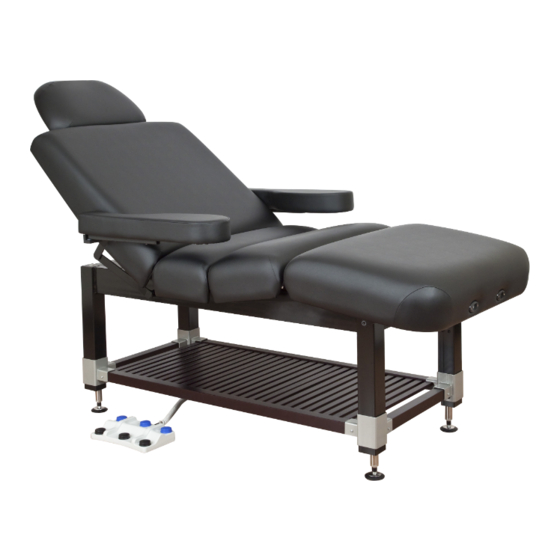

PRODUCT DESCRIPTION PRODUCT DESCRIPTION Universal Table Extender (optional accessory) Self Adjusting Removable Arm Rests (2) (optional) Powder Coated Steel Base Hydraulic Lift Accessory Columns (4) outlets (2) Foot Control (1) Storage shelf TABLE SPECIFICATIONS • Height Range: 25” - 35” (64-89 cm) • Width: 29” or 31” (74 cm or 79 cm) • Length: 72” (183 cm) • Lift Capacity:... -
Page 9: Installation & Leveling Instructions
INSTALLATION ASSEMBLY & INSTALLATION INSTALLATION INSTALLATION When operating the table’s The table comes completely assembled and ready to use. Plug the cord into controls be sure to observe a functioning outlet that is rated for the table. all cautions and warnings given in the manual to pre- Arrange the power cord and foot switch so that they will not create a tripping vent injury to both operator... -
Page 10: Directions For Use
DIRECTIONS FOR USE DIRECTIONS FOR USE DAILY CYCLING The o Leo™ uses hydraulics and hydraulic fluids to adjust the ® akworks table height. Maintaining the quiet operation of your table requires that CAUTION you fully cycle your table (up & down) twice per day. Cycling of the table will maintain the lubrication within the hydraulic cylinders for continued smooth and quiet operation. When not possible, we When operating the recommend that you cycle the table (up &... -
Page 11: Adjusting Height And Top
DIRECTIONS FOR USE ADJUSTING THE HEIGHT AND TOP When operating the table’s Press and hold the appropriate button until the position desired is controls be sure to observe achieved and then release. The arm rests will adjust automatically to all cautions and warnings provide the most in comfort and ergonomics while staying parallel given in the manual to pre- to the floor, no matter what the position. -
Page 12: Important Safety Note
DIRECTIONS FOR USE IMPORTANT SAFETY NOTE READ AND SAVE THESE The cabinet hood area under the backrest top is not designed for stor- age or as an area to hold accessories while with a client. DO NOT use INSTRUCTIONS this area for holding anything. Damage can occur to the table, especially when commands that are accessed by the foot control are activated. -
Page 13: Side Arm Rests
DIRECTIONS FOR USE ARM REST INSTALLATION AND ADJUSTMENT INSTRUCTIONS OPTIONAL ACCESSORY AVAILABLE ON SALON TOP ONLY CAUTION: Do not use the arm rest for customer weight support during the mounting or dismounting of the table. The arm rest is not designed to support the patient’s weight. -
Page 14: Quicklock Face Rest
DIRECTIONS FOR USE QUICKLOCK™ FACE REST & HEAD REST DIRECTIONS FOR USE QUICKLOCK™ FACE REST: Be sure to use either the face rest or head rest for all treatments that require your client Be sure to read all to lay flat. Double articulating action provides nearly limitless positioning options with cautions, warnings the QuickLock™... -
Page 15: Moving Your Table
DIRECTIONS FOR USE MOVING THE LEO™ DIRECTIONS FOR USE CAUTION Grasp at base The table weighs as much at low height range corner as 232 lbs. DO NOT lift or move the unit without using The Leo™ weighs approximately 232 lbs. (105 kg) You will need 4 people proper safety procedures working together if it is necessary to move the table. Never lift the table by or equipment. -
Page 16: Care & Cleaning
CARE & CLEANING UPHOLSTERY Be sure to read all In order to maintain your product’s quality and ensure the life of your upholstery, we cautions, warnings have tested several preventative steps you can take to protect the upholstery fabric on and instructions given your table and accessories. -
Page 17: Power Lead Plugs
SPECIFICATIONS PRODUCT POWER LEAD PLUGS IDENTIFICATION Part #: Voltage (AC) Power Cord Plug IMPORTANT 7791 120v 60 Hz 3 prong grounded North America these parts are for identification only; they are not field serviceable items. 220v 50 Hz Continental Plug; Europe/Italy 220v 50 Hz Swiss plug; Switzerland 220v 50 Hz British plug; United Kingdom 7791-06 220v 50 Hz... -
Page 18: Electrical Specifications
SPECIFICATIONS & WARRANTY SPECIFICATIONS ELECTRICAL SPECIFICATIONS North America Europe Japan/Korea Designed For: 100 VAC/3.5 amps Voltage/Current Service 120 VAC/2.9 amps 220 VAC/1.6 amps Input Frequency 60 Hz 50 Hz 50/60 Hz Power Consumption 24 VDC Table Actuator Voltage 24 VDC 24 VDC Electric Shock Protection Class I Equipment Class I Equipment... -
Page 19: Warranty Information
WARRANTY WARRANTY For full warranty details, please visit www.oakworks.com All warranties are limited to factory-provided replacement parts, factory repair or replacement, at the discretion of O ® akworks All warranties exclude damage caused by improper set-up, accident, abuse, misuse, neglect, use for other than intended purpose or reasonable wear such as tears in the upholstery. All warranties are invalidated by non-factory modifications and unauthorized repairs, which will immediately terminate all liability by O for the product or ®... -
Page 20: Contact Information
Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com European Compliance for CE Information: Emergo Europe Molenstraat 15 The Hague, 2513 BH Netherlands info@emergogroup.com Complies with: UL 962 CAN/CSA C22.2 No. 68-09 EN60335-1 3034177 EN60335-2-32 Part No.: MMMNST0029-EN Revision: A Revision Date: 04/24/2015 www.oakworks.com · 717.235.6807...
