USER MANUAL

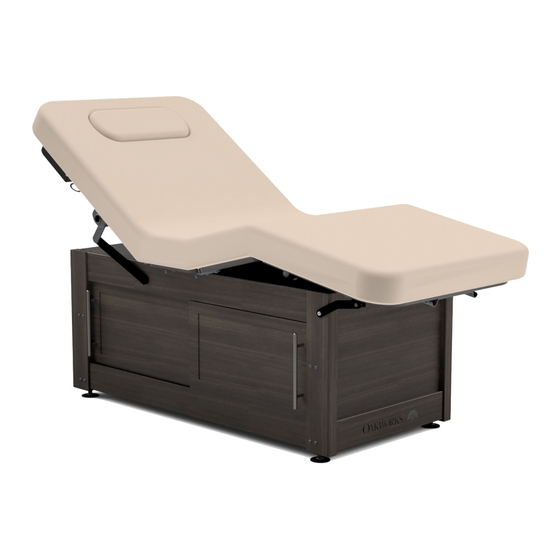

Clinician Premiere
4-Section Electric Salon Top
Shown with optional Adjustable
Breast Comfort System
www.OAKWORKS.com · 717.235.6807
1-Section Flat Top
Shown with optional Adjustable
Breast Comfort System
made in the USA
with US & imported parts

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Clinician Premiere Series and is the answer not in the manual?

Questions and answers

Summary of Contents for OAKWORKS Clinician Premiere Series

  • Page 1 USER MANUAL Clinician Premiere 4-Section Electric Salon Top Shown with optional Adjustable Breast Comfort System 1-Section Flat Top Shown with optional Adjustable Breast Comfort System made in the USA with US & imported parts www.OAKWORKS.com · 717.235.6807...
  • Page 2 OAKWORKS , Inc. tial damages in connection with or ® arising out of the furnishing, per- formance, or use of this document OAKWORKS is a registered and the program material which it ® trademark of OAKWORKS , Inc. describes. ®...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Product Use Description......................1 Important Safety Instructions Symbol Identification ..................... 1 Safety Instructions ...................... 1-2 Product Description & Photo 4-Section Electric Salon ....................3 1-Section Flat Top ......................4 Troubleshooting If the Table Will Not Change Height or Position ............5 If the Table is Making Noise During Height Adjustment ..........
  • Page 4: Product Use Description

    PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS PRODUCT USE DESCRIPTION The Oakworks Clinician Premiere offers a variety of positioning capabilities for massage therapists and spa professionals of all specialties. On these multifunctional professional tables the practitioner can perform numerous protocols with ease and comfort. The Clinician Premiere is especially effective when professional protocols require specific positioning for the client.
  • Page 5 2. Unplug from outlet before adding or removing parts. 3. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use at 717.235.6807.
  • Page 6: Product Description & Photo

    PRODUCT DESCRIPTION Clinician Premiere 4-Section Electric Salon Optional ABC Pad STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 26”-36” (66-91 cm.) Height Range Adjustable Breast Comfort (ABC) System Motion 2 Powered 0-70º Backrest Wood Finishes Motion 3 Powered 0-30º Foot Rest Integrated Heated Top Foot Control All powered motions Cabinet Door Material &...
  • Page 7: 1-Section Flat Top

    PRODUCT DESCRIPTION Clinician Premiere 1-Section Flat Top Optional ABC Pad STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 26”-36” (66-91 cm.) Height Range Adjustable Breast Comfort (ABC) System Foot Control All powered motions Wood Finishes Hand Control All powered motions Integrated Heated Top Table Voltage Options 120V/60Hz - 230V/50Hz Cabinet Door Material &...
  • Page 8: Troubleshooting

    TROUBLESHOOTING I F T H E T A B L E W I L L N O T C H A N G E H E I G H T O R P O S I T I O N Disconnect the power cord from the power outlet before doing any work on the CAUTION unit.
  • Page 9: Installation

    INSTALLATION All tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (see Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard and where the con- trols are located to your liking and are conveniently accessible.
  • Page 10: Storage Cabinet & In-Cabinet Outlet

    INSTALLATION S T O R A G E C A B I N E T & I N-C A B I N E T O U T L E T This product is equipped with an interior 120-volt 60Hz six plug accessory outlet. DANGER The total electrical load of equipment plugged into this set of outlets is not to exceed 7 amps or 840 watts.
  • Page 11: Directions For Use

    DIRECTIONS FOR USE HYDRAULIC DAILY CYCLING The Clinician Premiere uses hydraulics and hydraulic fluids to adjust the table height. Maintaining the quiet operation of your table requires that you fully cycle your table (up & down) twice per day. Cycling of the table will maintain the lubrication within the hydraulic cylinders for continued smooth and quiet operation.
  • Page 12: Foot Control Operations Flat Top Tables

    F O O T C O N T R O L O P E R A T I O N S - F L A T T O P T A B L E S The Oakworks Clinician Premiere Flat Top tables offer height positioning with electronic ease. Operate ®...
  • Page 13: Electric Salon Tables

    Do not sit on backrest or footrest sections. The hood area under the backrest top is not designed for storage. DO NOT use this area for holding anything. Damage can occur to the table. The Oakworks Clinician Premiere Electric Salon Tables offer height, backrest and footrest positioning ®...
  • Page 14: Adjustable Breast Comfort (Abc) Systems Only

    CAUTION ABC System. Only use as intended. For safety of your client, use a cloth sheet between the ABC System and your client. The Oakworks Adjustable Breast Comfort (ABC) System is designed to lower the pressure on breasts ® and pectoral muscles, allowing the client to relax and create a more comfortable position for their spine.
  • Page 15: Hand Control Operations Flat Top Tables

    H A N D C O N T R O L O P E R A T I O N S - F L A T T O P T A B L E S The Oakworks Clinician Premiere Flat Top tables offer height positioning with electronic ease. Operate ®...
  • Page 16: Electric Salon Tables

    Do not sit on backrest or footrest sections. The hood area under the backrest top is not designed for storage. DO NOT use this area for holding anything. Damage can occur to the table. The Oakworks Clinician Premiere Electric Salon Tables offer height, backrest, and footrest positioning ®...
  • Page 17: Adjustable Breast Comfort (Abc) Systems Only

    CAUTION ABC System. Only use as intended. For safety of your client, use a cloth sheet between the ABC System and your client. The Oakworks Adjustable Breast Comfort (ABC) System is designed to lower the pressure on breasts ® and pectoral muscles, allowing the client to relax and create a more comfortable position for their spine.
  • Page 18: Moving The Table

    DIRECTIONS FOR USE M O V I N G T H E T A B L E Before moving the table, disconnect the power cord from the power outlet. Secure the power cord and any hand or foot controls before moving. The table weighs as much CAUTION as 190 lbs.
  • Page 19: Adjustable Breast Comfort (Abc) System

    ABC System. Only use as intended. For safety of your client, use a cloth sheet between the ABC System and your client. The Oakworks Adjustable Breast Comfort (ABC) System is designed to lower the pressure on breasts and pectoral ®...
  • Page 20: Quicklock Face Rest

    DIRECTIONS FOR USE QuickLock F A C E R E S T: (A C C E S S O R Y O P T I O N) • Do not put excessive weight or pressure on the Face Rest. CAUTION •...
  • Page 21: Integrated Heated Top

    DIRECTIONS FOR USE I N T E G R A T E D H E A T E D T O P USING THE INTEGRATED HEATED TOP: The table comes with the option for a fully integrated heated top pad. Simply press the heating indicator located at the head end of the table to the desired heat level.
  • Page 22: Integrated Heated Top Troubleshooting

    DIRECTIONS FOR USE I N T E G R A T E D H E A T E D T O P T R O U B L E S H O O T I N G Possible causes- • Plug is not properly plugged in.
  • Page 23: Cleaning & Disinfection

    ® Green Windex ® The following disinfectants were tested by OAKWORKS ® and found to be acceptably compatible with all materials used in construction of our beds: Clorox Everest / Formula 409® Multi-Surface Cleaner (EPA Reg. No. 5813-73) Parker Labs: Protex™1 (EPA Reg. No. 6836-152) Madacide-FD (EPA Reg.
  • Page 24: Cleaning Process

    • Check table grounding. • Clean unusual buildup of dirt on the table and/or parts of the table not normally cleaned on a regular basis. • Check for tears or cracks in the upholstery. WARRANTY View complete warranty details at www.oakworks.com...
  • Page 25: Model Number & Serial Number

    MODEL NUMBER & SERIAL NUMBER M O D E L & S E R I A L N U M B E R S The model number and serial numbers are located on the underside of the foot section of the table top Model Number 16796025 CPSA4EF1T411USXXPW Ser#: PAD123456...
  • Page 26: Specifications

    SPECIFICATIONS ELECTRICAL SPECIFICATIONS Designed for: North America Europe Input Service 120 VAC/15 amp/60 Hz 220 VAC/10 amp/50/60 Hz Current Draw 5.0 amps 2.5 amps Voltage Output to Actua- 24 VDC 24 VDC tors Electric Shock Class 1 Equipment Class 1 Equipment Protection Tabletop Applied Part Type B Applied Part...
  • Page 27 THIS PAGE IS INTENTIONALLY LEFT BLANK...
  • Page 28: Contact Information

    USER MANUAL Clinician Premiere C O N T A C T I N F O R M A T I O N: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com 3034177 CONFORMS TO: UL STD 962 Certified to CAN/CSA STD C22.2 #68...
