Summary of Contents for OAKWORKS Clodagh Leo

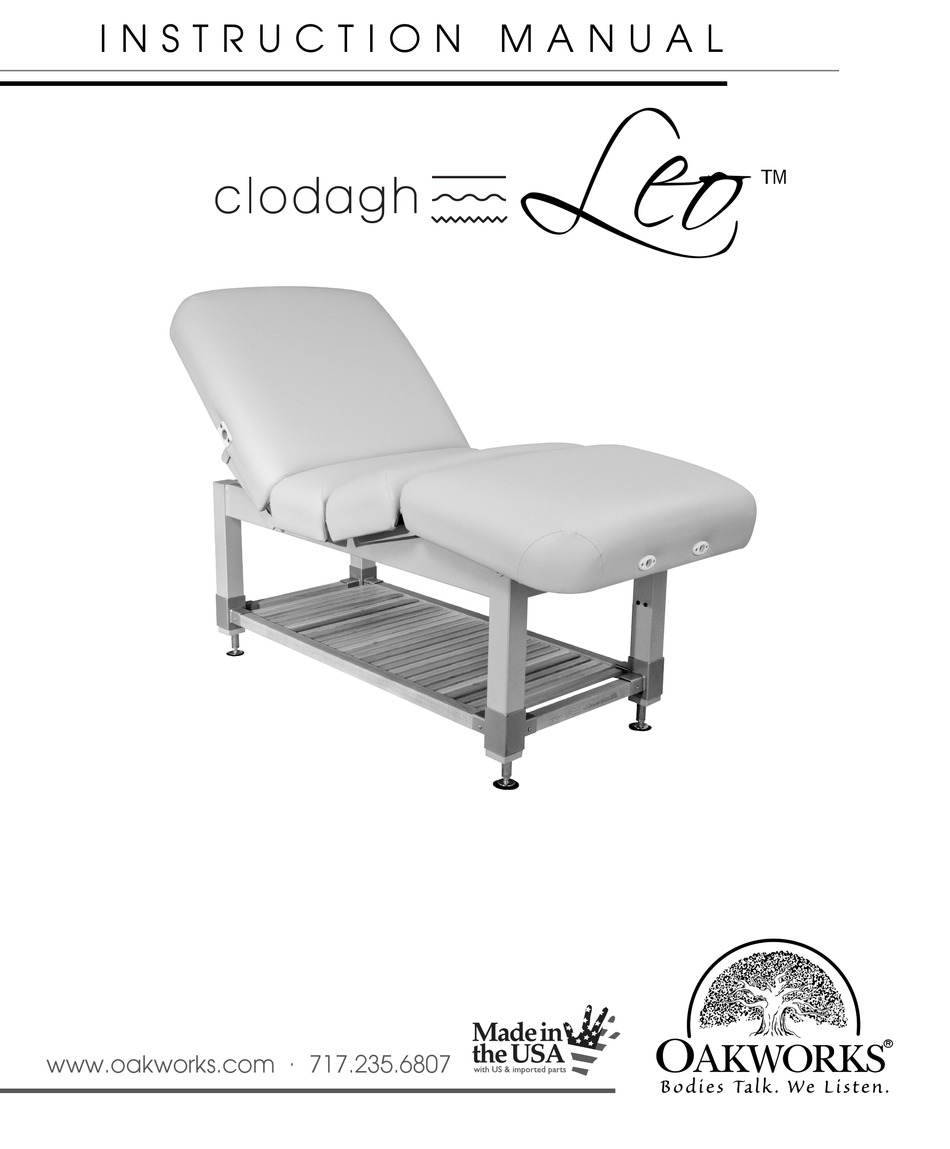

- Page 1 I N S T R U C T I O N M A N U A L ™ www.oakworks.com · 717.235.6807...
- Page 2 The information contained in this document is Printed in U.S.A. subject to change without notice and should not be construed as a commitment by Oakworks®, Inc. All rights are reserved. No Oakworks®, Inc. assumes no responsibility for part of this document may be...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Symbol Identification ..................pg 2 Warnings & Safety Instructions ..............pg 3 Grounding Instructions .................. pg 5 Product Description & Table Specs ............. pg 6 Installation & Leveling Instructions ............... pg 7 Directions for Use Adjusting Height................ -
Page 4: Symbol Identification
SYMBOL IDENTIFICATION WARNINGS SYMBOL IDENTIFICATION This symbol, when used in this manual and on product labels, represents a caution. Be sure to read and comply with all precautions and warnings. This symbol, when used in documentation on this product, indicates danger and warns against an electrical shock hazard. -
Page 5: Warnings & Safety Instructions
WARNINGS & SAFETY INSTRUCTIONS WARNINGS & SAFETY INSTRUCTIONS Improper use of this device can cause injury. Be sure to read all operating instructions prior to use to prevent injury to operator or client. Electrical Shock Hazard. To reduce the risk of electric shock, always disconnect the table from DANGER the electrical outlet before moving the table or doing any maintenance or troubleshooting procedures. - Page 6 WARNINGS & SAFETY INSTRUCTIONS WARNINGS WARNINGS & SAFETY INSTRUCTIONS This product is equipped with an interior accessory outlet. The total WARNING electrical load of equipment plugged into this set of outlets is not to exceed 840 watts. Close supervision is necessary when this furnishing is used by, or near, children, invalids or disabled persons.
-
Page 7: Grounding Instructions
WARNINGS & SAFETY INSTRUCTIONS (CONTINUED) GROUNDING INSTRUCTIONS WARNINGS & SAFETY INSTRUCTIONS To remove the accessories from the shelf: Turn the accessory controls to the off position and then disconnect the unit from the interior power CAUTION source by removing the plug from the outlet. When moving the table: Turn the accessory controls to their off posi- CAUTION tion, disconnect the table from the exterior power source by removing... -
Page 8: Product Description & Table Specs

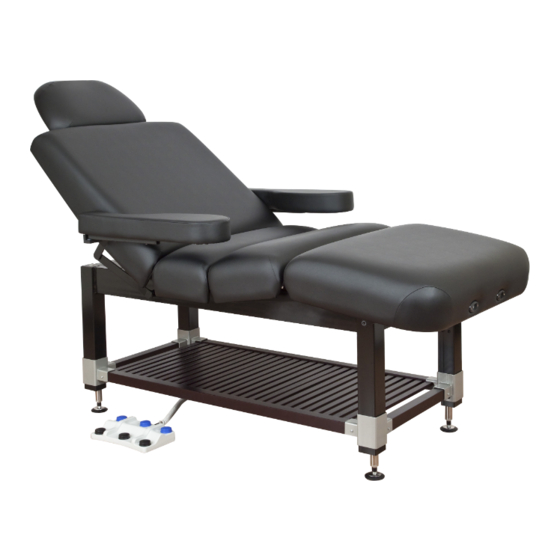

PRODUCT DESCRIPTION PRODUCT DESCRIPTION Flex top Powder Coated Steel Base Hydraulic Lift Columns (4) Accessory outlets (2) Storage shelf TABLE SPECIFICATIONS • Height Range: 25” - 35” (64-89 cm) • Width: 29” or 31” (74 cm or 79 cm) • Length: 73”... -
Page 9: Installation & Leveling Instructions
INSTALLATION ASSEMBLY & INSTALLATION INSTALLATION INSTALLATION The table comes completely assembled and ready to use. Plug the cord into When operating the table’s controls be sure to observe a functioning outlet that is rated for the table. all cautions and warnings given in the manual to pre- Arrange the power cord and foot switch so that they will not create a tripping vent injury to both operator... -
Page 10: Directions For Use
DIRECTIONS FOR USE ADJUSTING HEIGHT OF THE TABLE DIRECTIONS FOR USE The O Leo™ comes complete with a multi-functional hand control that ® AKWORKS operates the backrest and leg rest positioning functions as well as a foot control that operated the height with ease. CAUTION Foot Control When operating the... -
Page 11: Adjusting The Top
DIRECTIONS FOR USE ADJUSTING THE TOP Hand Control - 4 Positioning Buttons The hand control operates all the positioning of the backrest, seat and leg rest of the top. When operating the table’s controls be sure to observe all cautions and warnings given in the manual to pre- vent injury to both operator and client. -
Page 12: Important Safety Note
DIRECTIONS FOR USE IMPORTANT SAFETY NOTE The cabinet hood area under the backrest top is not designed for stor- age or as an area to hold accessories while with a client. DO NOT use this area for holding anything. Damage can occur to the table, especially when commands that are accessed by the hand control are activated. -
Page 13: Side Armrests
DIRECTIONS FOR USE SIDE ARMRESTS: Though the arm rests adjust automatically to remain parallel to the floor in any position, there will still be times when you will need to move an arm rest out of the way or remove them altogether. We recommend that you raise the arm rest out of the way to allow a client to CAUTION get on or off the table. - Page 14 DIRECTIONS FOR USE DIRECTIONS FOR USE • Side Arm Rests SIDE ARM RESTS: C O N T (cont.) To remove one or both arm rests just take hold of the base of the arm rest at the metal frame and somewhere on the cushion. Holding securely, rotate the arm rest while at the same time pulling slightly away from the table.
-
Page 15: Quicklock Face Rest
DIRECTIONS FOR USE QUICKLOCK™ FACE REST & HEAD REST DIRECTIONS FOR USE QUICKLOCK™ FACE REST: Be sure to use either the face rest or head rest for all treatments that require your client Be sure to read all to lay flat. Double articulating action provides nearly limitless positioning options with cautions, warnings and instructions given the QuickLock™... -
Page 16: Moving Your Table
DIRECTIONS FOR USE MOVING THE LEO™ DIRECTIONS FOR USE CAUTION The table weighs as much Grasp as 200 lbs. DO NOT lift or at base move the unit without using at low height range corner proper safety procedures or equipment. DO NOT turn the table on its side for any The Leo™... -
Page 17: Care & Cleaning
CARE & CLEANING HOW TO CARE FOR YOUR TABLE CARE & CLEANING In order to maintain the quality and ensure the life of the table, here are • Upholstery some preventative steps that can be taken to protect the upholstery on the chair and accessories. -
Page 18: Power Lead Plugs
PRODUCT POWER LEAD PLUGS IDENTIFICATION POWER LEAD PLUGS IMPORTANT Part #: Voltage (AC) Power Cord Plug AKWORK 7791 120v 60 Hz 3 prong grounded these parts are for North America identification only; they are not field serviceable items. 7791-03 220v 50 Hz Continental Plug;... -
Page 19: Electrical Specifications
Pressure: no limitations known Storage & Transport During transport, DO NOT stack containers. WARRANTY For full warranty details, please visit www.oakworks.com All warranties are limited to factory-provided replacement parts, factory repair or replacement, at the discretion of O ® AKWORKS All warranties exclude damage caused by improper set-up, accident, abuse, misuse, neglect, use for other than intended purpose or reasonable wear such as tears in the upholstery. -
Page 20: Contact Information
I N S T R U C T I O N M A N U A L CONTACT INFORMATION: Inc. ® AKWORKS 923 East Wellspring Road New Freedom, PA 17349 Toll Free (USA only): 800-916-4613 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com Manual Part Number MMMNST0015 Revision date: 04.23.09 Edition 1, English Printed in USA...
