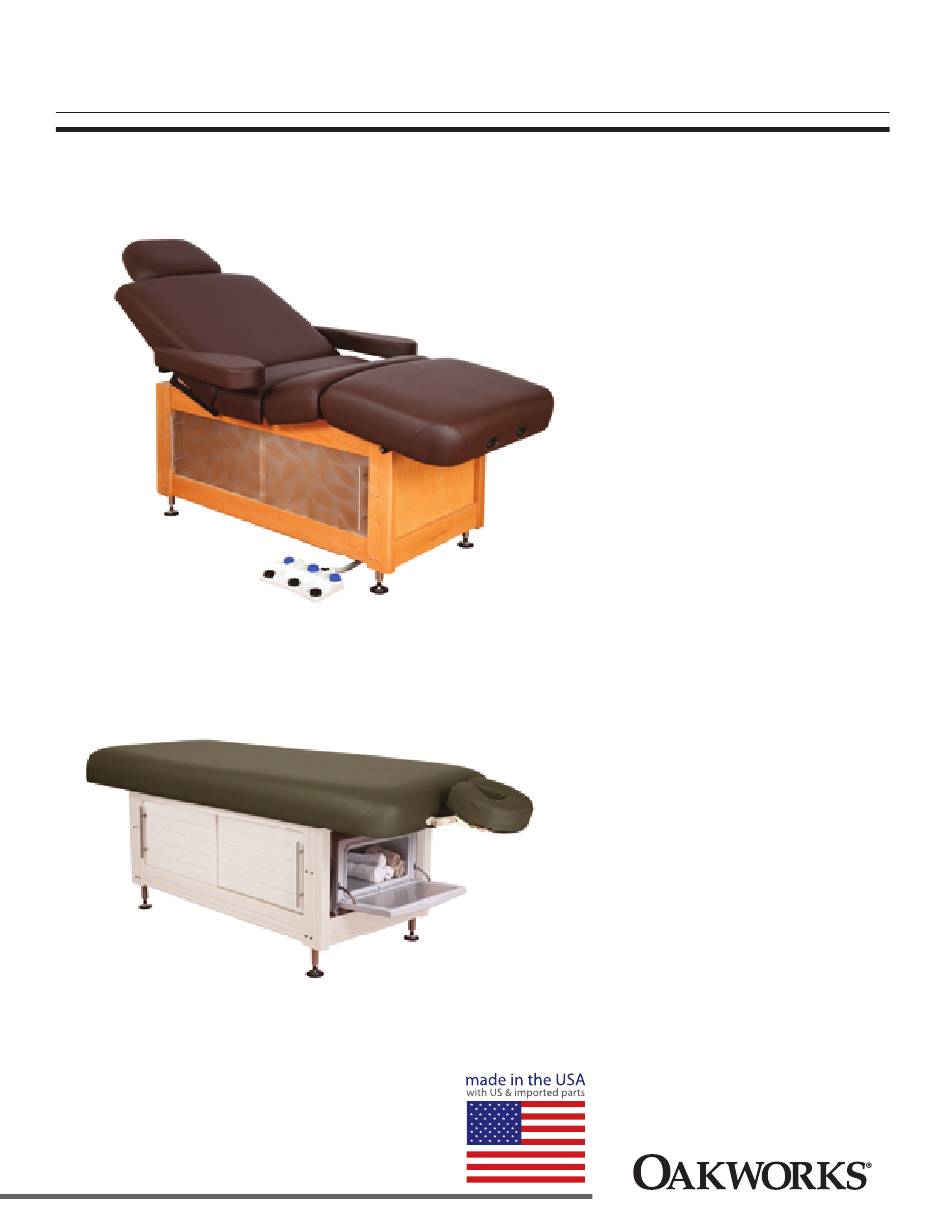

- Page 1 I N S T R U C T I O N M A N U A L Clinician Premiere Electric Salon Top Shown with optional Adjustable Side Arm Rests and Universal Table Extender Flat Top Shown with optional QuickLock™ Face Rest and Boiance™ Crescent and Hot Towel Cabi www.oakworks.com · 717.235.6807...
- Page 2 © 2012 O , Inc. ® akworks Notice The information contained in this document is subject to change All rights are reserved. No part without notice and should not of this document may be be construed as a commitment by photocopied, reproduced or , Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Symbol Identification ....................ii Warnings & Safety Instructions ................. iii Grounding Instructions ....................v Section I: Product Description Premiere Table Photo & Specifications ..........1 ™ Section II: Installation Leveling Instructions ................2 Section III: Directions for Use Daily Cycling For Continued Quiet Operation ........ -
Page 4: Symbol Identification
SYMBOL IDENTIFICATION SYMBOL IDENTIFICATION This symbol, when used in documentation on this product, represents a cau- tion. Be sure to read and comply with all precautions and warnings. This symbol, when used in documentation on this product, indicates danger and warns against an electrical shock hazard. Be sure to observe and comply with all warnings and instructions. -
Page 5: Warnings & Safety Instructions
WARNINGS & IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS Improper use of this device can cause injury. Be sure to read all operating instructions prior to use to prevent injury to operator or client. Electrical Shock Hazard. To reduce the risk of electric shock, always DANGER disconnect the table from the electrical outlet before moving the table or doing any maintenance or troubleshooting procedures. - Page 6 WARNINGS & IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS (CONT.) This product is equipped with an interior accessory outlet. The total WARNINGS electrical load of equipment plugged into this set of outlets is not to exceed 750 watts. Close supervision is necessary when this furnishing is used by, or near, children, invalids or disabled persons.
-
Page 7: Grounding Instructions
WARNINGS & IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS (CONT.) INSTRUCTIONS DO NOT store or place anything on the cabinet hood under the Back Rest as CAUTIONS this can cause damage to top and/or hood and will void the warranty. Maximum Working Load Rating (client and accessories): 500 lbs. - Page 8 PRODUCT DESCRIPTION Premiere ™ Self Adjusting Universal Removable Table Extender Arm Rests (2) (optional) (optional) Table shown here with optional Golden Oak stain and Signature One Piece Leaf Pattern Acrylic Doors. Accessory Outlets (2) Sliding Cabinet doors (access both sides) Vertical Hydraulic Foot...
-
Page 9: Leveling Instructions
INSTALLATION - LEVELING INSTRUCTIONS I N S T A LL A T I O N I NST R U C T I ON S : The Premiere comes completely assembled and ready to use. Plug the ™ When operating the cord into a functioning outlet that is rated for the table. -
Page 10: Section Iii: Directions For Use
DIRECTIONS FOR USE CAUTION DAILY CYCLING When operating the The O uses hydraulics and hydraulic fluids to adjust ® Premiere ™ controls and making akworks Premiere ™ the table height. Maintaining the quiet operation of your table requires any and all adjustments to the that you fully cycle your table (up &... -
Page 11: Under-Table Cabinet
DIRECTIONS FOR USE IMPORTANT SAFETY NOTE The cabinet hood area under the backrest top is not designed for storage or as an area to hold accessories while with a client. DO NOT use this area CAUTION for holding anything. Damage can occur to the table, especially when commands that are accessed by the foot or hand control are activated. - Page 12 DIRECTIONS FOR USE UNDER-TABLE CABINET (CONTINUED) DANGER To Access the Storage in the Under Table Cabinet: (cont) The cabinet doors will open until they meet the other side of the cabinet This product is equipped with an interior 120-volt 60Hz and stop.
- Page 13 DIRECTIONS FOR USE UNDER-TABLE CABINET (cont) Plug in the towel warmer and slide it inside being careful to move any excess cord inside the wooden cabinet. To access the interior plug for use with optional accessory appliances: For the times when an optional electrical appliance such as a facial massager is used the comes equipped with an opening to allow Premiere...
-
Page 14: Side Arm Rests
DIRECTIONS FOR USE ARM REST INSTALLATION AND ADJUSTMENT INSTRUCTIONS OPTIONAL ACCESSORY AVAILABLE ON SALON TOP ONLY CAUTION: Do not use the arm rest for customer weight support during the mounting or dismounting of the table. The arm rest is not designed to support the patient’s weight. -
Page 15: Face Rest
DIRECTIONS FOR USE QuickLock FACE REST: ™ * U.S. Patent #5,177,823 Double articulating action provides nearly limitless positioning options with the QuickLock Face Rest. The adjustable pad takes pressure off ™ sensitive facial areas while providing superb support. The QuickLock ™... - Page 16 DIRECTIONS FOR USE QuickLock FACE REST (CONTINUED): ™ Tips for Great Positioning using the QuickLock Face Rest: ™ • To use the face rest with your client supine, rotate the face rest pad so that the thick part of the pad supports your client’s cervical region. Adjusting the height and angle of the face rest gives your client perfectly comfortable support.
-
Page 17: Accessory Option: Quicklock Accessory Option: Table Extender
DIRECTIONS FOR USE Table Extender CAUTION Do not put excessive weight or pressure on the extender. Excessive pressure can cause premature failure of the Table Extender. Outlets The optional stationary Table Extender provides ultimate comfort for your tallest clients, quickly and easily. The Table Extender comes with two connecting arms that slide into the outlets at the foot end of the tabletop. -
Page 18: Section Iv: Troubleshooting
TROUBLESHOOTING IF THE TABLE WILL NOT CHANGE HEIGHT OR POSITION • Check that the keyswitch inside the table is in the “on” position. CAUTION • Check the outlet to be sure that it has power and that the power cable is plugged in. Try all Foot Control Buttons to see if any work. If any work, then possibly there is a loose connection or a faulty control- The table weighs as much as 200 lbs. -
Page 19: Section V: Care & Cleaning
CARE & CLEANING UPHOLSTERY In order to maintain your product’s quality and ensure the life of your upholstery, we have tested several preventative steps you can take to protect the upholstery fabric on your table and accessories. Here are a few suggestions in caring for your upholstery fabric: WARNINGS •... -
Page 20: Section Vi: Product Identification
PRODUCT IDENTIFICATION POWER LEAD PLUGS Part #: Voltage (ACE) Power Cord Plug ® akworks 7791 120v 60 Hz 3 prong grounded North America 7791-03 220v 50 Hz Continental Plug; Europe/Italy 7791-04 220v 50 Hz Swiss plug; Switzerland 7791-02 220v 50 Hz British plug;... -
Page 21: Section Vii: Table Specifications
SPECIFICATIONS Complies with: UL 962, CAN/CSA C22.2 No. 68-09, ETL listed EN60335-1, EN60335-2-32 North America Europe/Australia Designed For: Voltage/Current 220 VAC/ 1.6 amps 120 VAC/ 2.9 amps Service Available Input Frequency 50 Hz 60 Hz Current 12 amps max 6.5 amps max Consumption with internal Outlets 350 watts... -
Page 22: Section Viii: List Of Parts
LIST OF PARTS LIST OF PARTS Part No. Part No. Description 64649-110 Control Box - U.S. 64649-220 Control Box - European 64984 Lift Actuator 7009-3 Table Top Actuator 64973-1 Hydraulic Lift Unit 6 Button Foot Control 2083-5 US Power Strip Accessory Part No. -
Page 23: Section Ix: Warranty
WARRANTY STATEMENT WARRANTY STATEMENT For full warranty details, please visit www.oakworks.com All warranties are limited to factory-provided replacement parts, factory repair or replacement, at the discretion of O ® akworks All warranties exclude damage caused by improper set-up, accident, abuse, misuse, neglect, use for other than intended purpose or reasonable wear such as tears in the upholstery. -
Page 24: Contact Information
CONTACT INFORMATION: Inc. ® akworks 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com European Authorized Representative: Emergo Europe Molenstraat 15 The Hague, 2513 BH Netherlands Complies with: UL 962 CAN/CSA C22.2 No. 68-09 EN60335-1 3034177...
