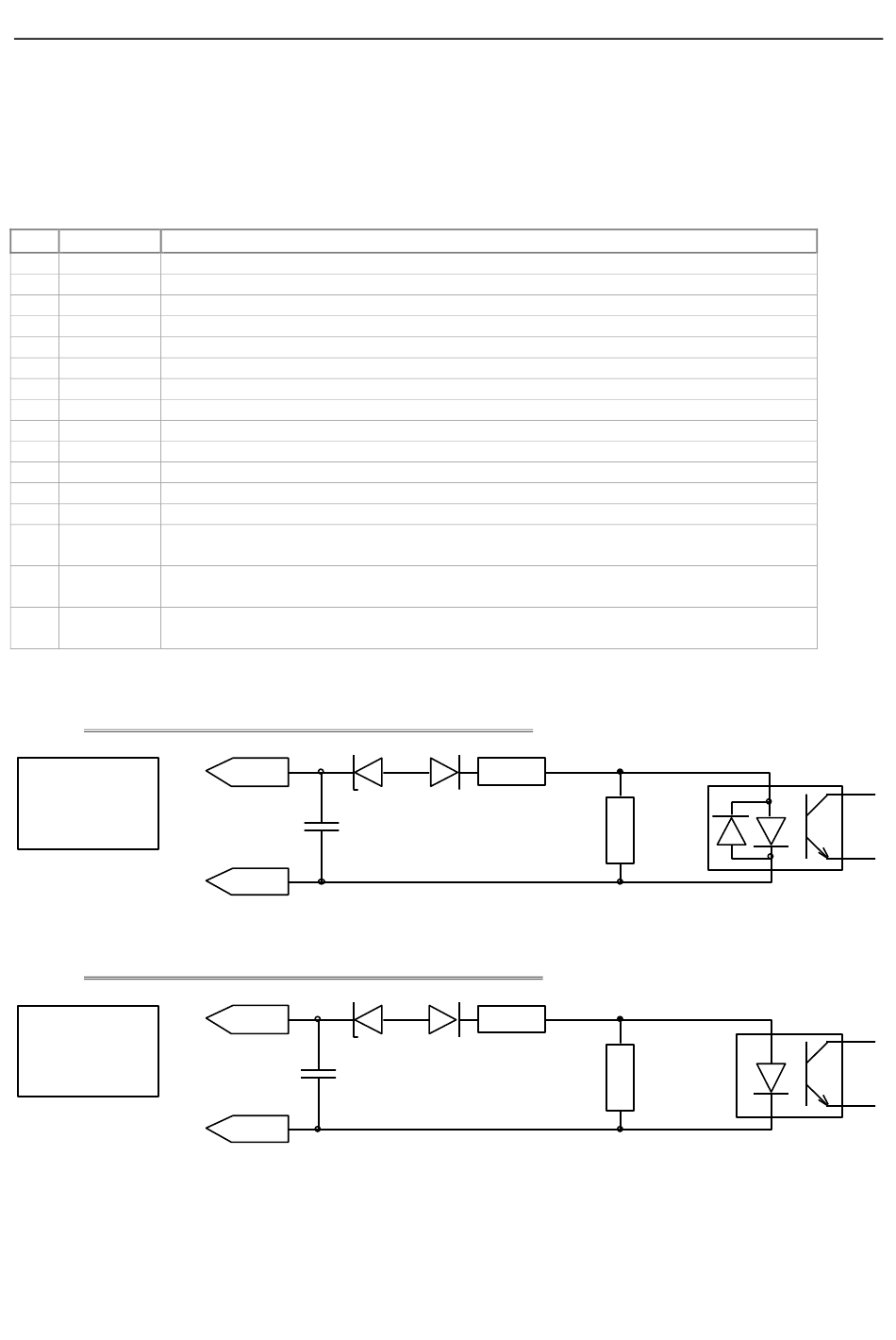

5.2.7 Pin assignment connector X1, Digital inputs (APCI-8001 / APCI-8008)

The basic wiring diagram of the digital inputs I1..I13 listed below are printed in [section 5.2.7.1] and inputs
I14...I16 are printed in [section 5.2.7.2].
Pin Name Function
9 I1 Digital input 1
10 I2 Digital input 2
11 I3 Digital input 3
12 I4 Digital input 4
13 I5 Digital input 5
14 I6 Digital input 6
15 I7 Digital input 7
16 I8 Digital input 8
42 I9 Digital input 9
43 I10 Digital input 10
44 I11 Digital input 11
45 I12 Digital input 12
46 I13 Digital input 13
47 I14 Digital input 14 and faster hardware latch input to save the actual position of axis
channel 1
48 I15 Digital input 15 and faster hardware latch input to save the actual position of axis
channel 2
49 I16 Digital input 16 and faster hardware latch input to save the actual position of axis
channel 3
5.2.7.1 Basic wiring diagram of xPCI-800x digital inputs I1 ... I13
S C H E M A T I C
ADDIPOS
D i g i t a l I n p u t s
Type 1
5.2.7.2 Basic wiring diagram of xPCI-800x digital inputs I14 ... I16
S C H E M A T I C
ADDIPOS
D i g i t a l I n p u t s
Type II
ANUAL
X22, Ix
x = 1 . . 1 3
B Z V 5 5 C 1 2
1 0 0 n F
X22, 50
X22, Ix
x = 1 4 . . 1 6 B Z V 5 5 C 1 2
1 0 0 n F
X22, 50
1 k 2
L L 4 1 4 8
6 8 0 R
L L 4 1 4 8
1 k 2
T L P 1 2 0 G B
8 2 0
R
T L P 1 1 3
