ADSP-BF707 EZ-KIT Lite Hardware Reference

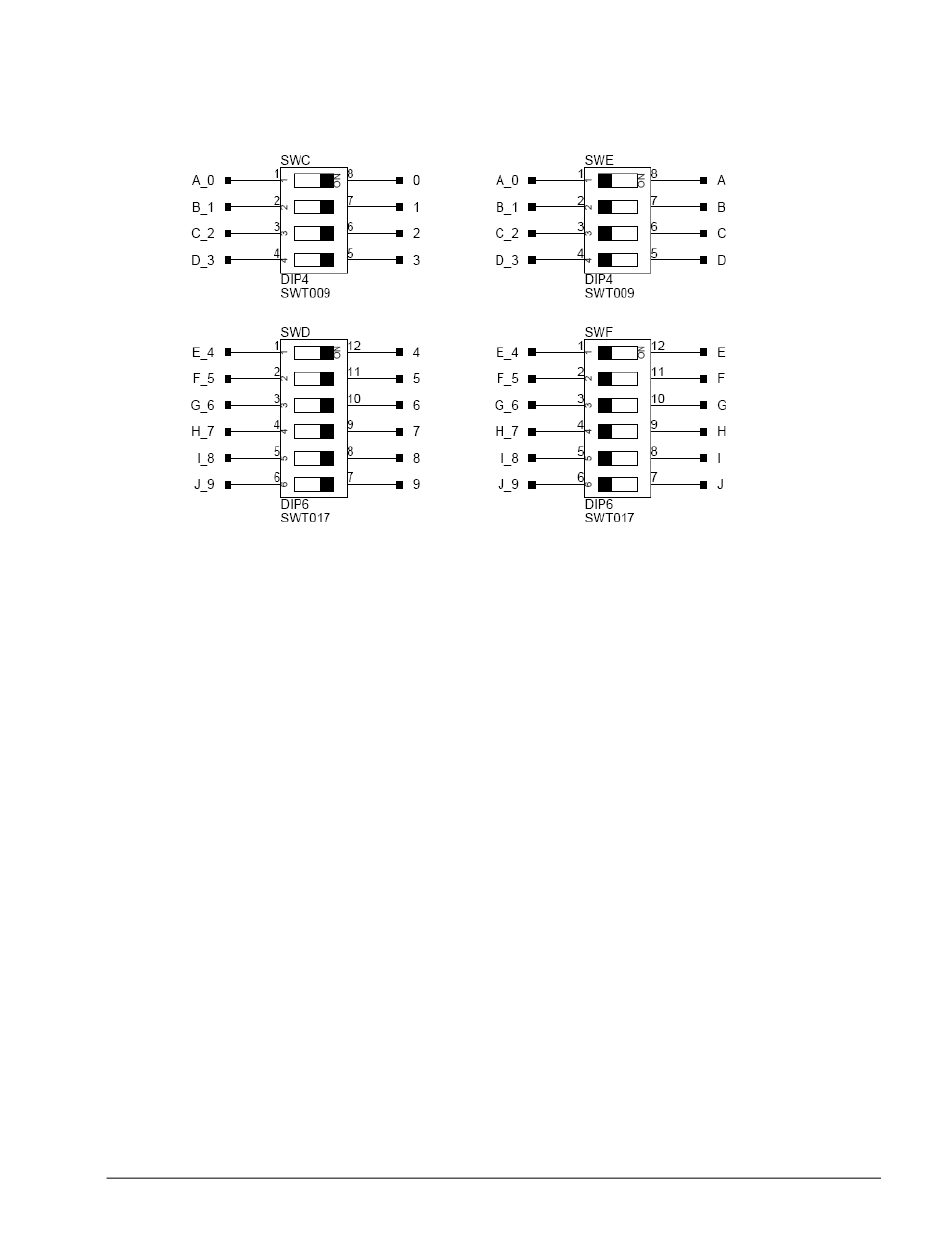

Figure 2-5. Example of Mechanical Switch Equivalent to

Figure 2-4

SoftConfig on the ADSP-BF707 EZ-KIT LITE

Two Microchip MCP23017 GPIO expanders provide control for individ-

ual electronic switches. The TWI0 interface of the processor

communicates with the Microchip devices.There are individual switches

with default settings that enable basic board functionality.

Table 2-1

lists the ADSP-BF707 processor and EZ-KIT Lite interfaces

that are available by default. Note that only interfaces affected by software

switches are listed in

Table

2-1.

ADSP-BF707 EZ-KIT Lite Evaluation System Manual

2-7
