60
C
4: U
HAPTER
SING THE
Upgrading the NJ220
Firmware
C
C
M
ENTRAL
ONFIGURATION
ANAGER
You can upgrade the firmware on your NJ220s over the network from the Central
Configuration Manager. To do so, follow these steps:
1 Select one or more IntelliJacks you want to upgrade. You can select groups of
IntelliJacks using one of the grouping options available to you in the drop-down
list at the top left corner of the main window.

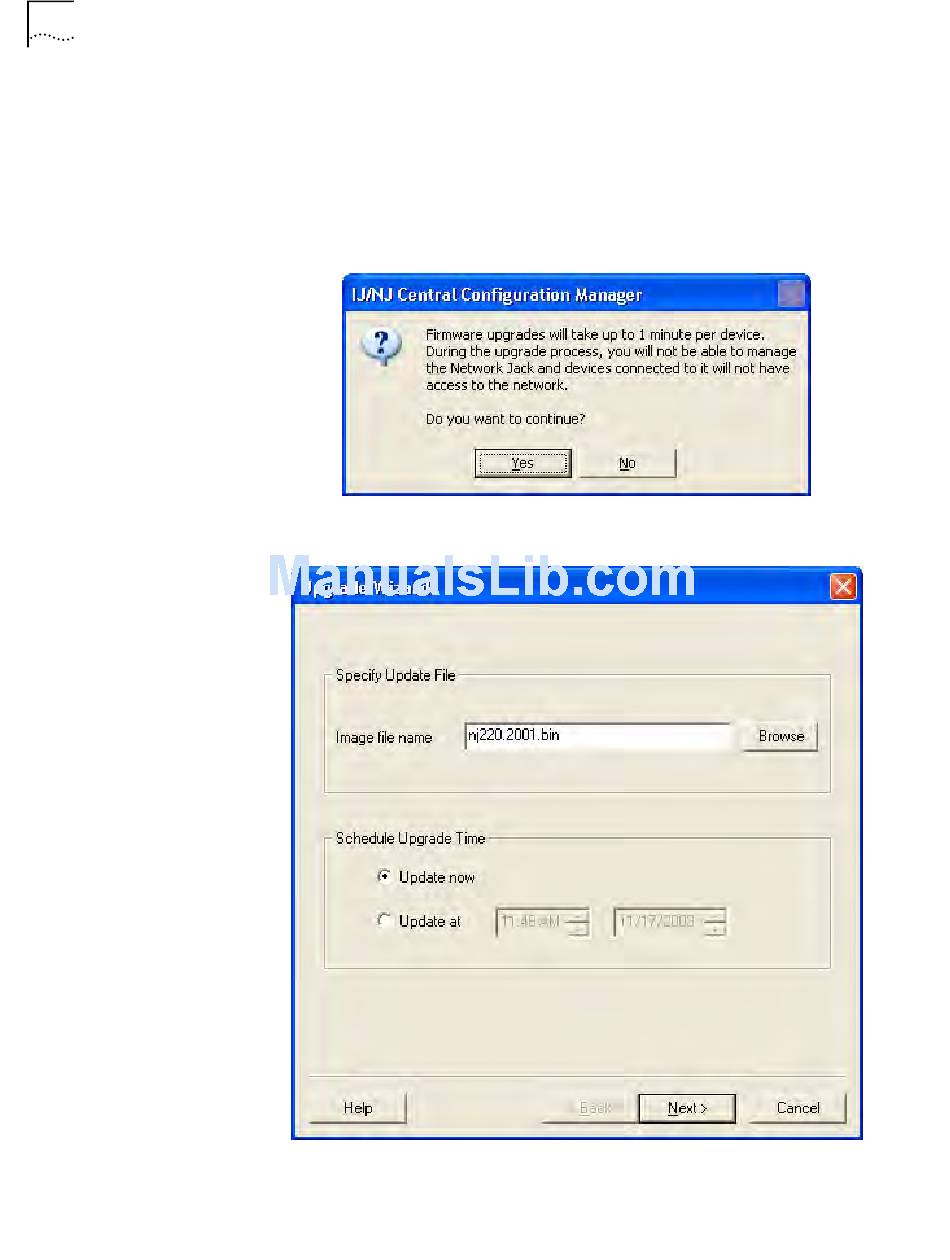

2 Select Upgrade from the devices menu. A window like this will appear:
3 Select Yes to continue the upgrade operation. A window like this will appear:
4 Select a valid firmware image by typing the path to the file or by using the Browse
button.
