36
C
4: U
HAPTER
SING THE
Hardware Settings
C
C
M
ENTRAL
ONFIGURATION
ANAGER

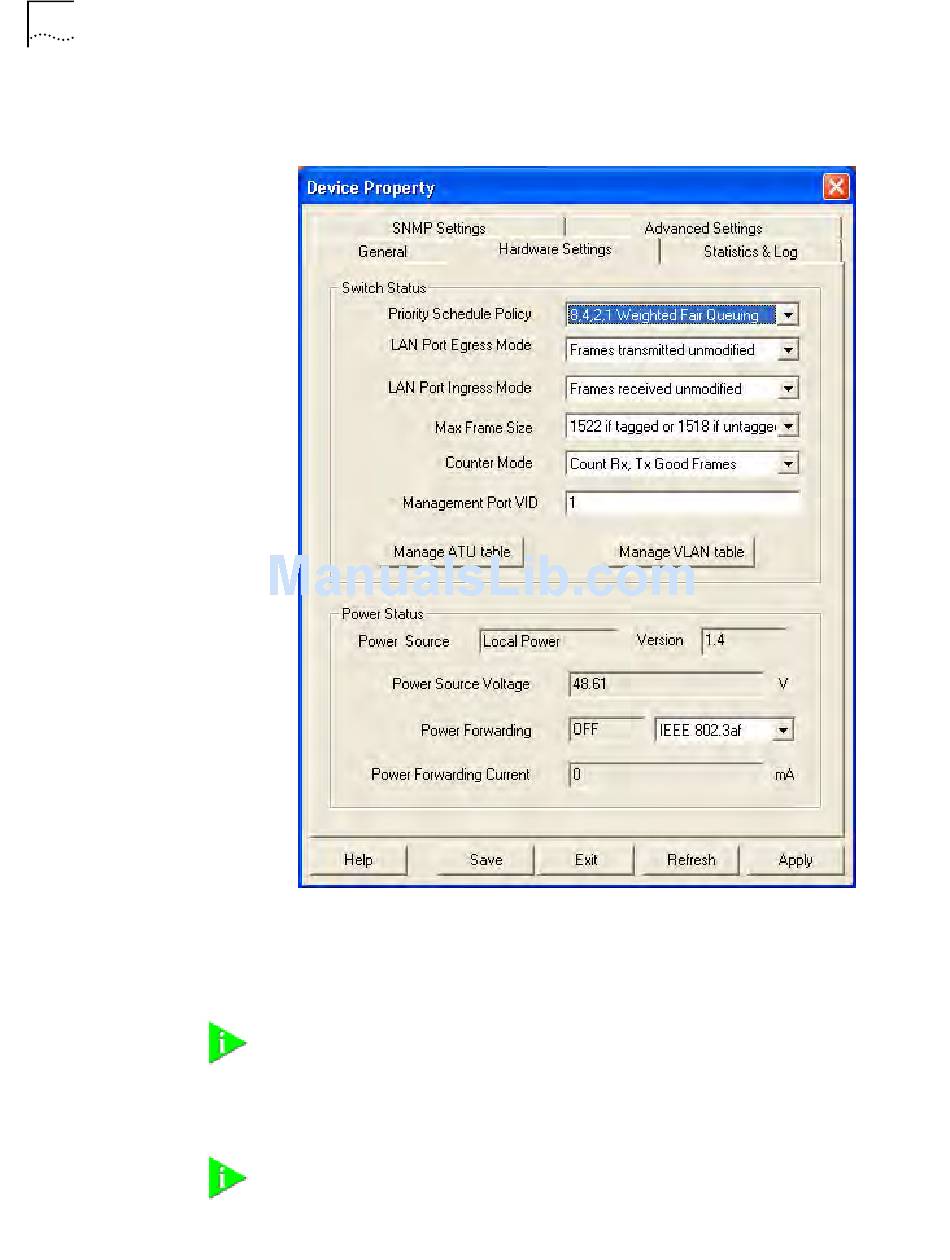

7 Click on the Hardware Settings tab to view status information about the switch.
Several fields in this window can be edited, a few cannot. You can change the
values of the fields with drop-down lists: Priority Schedule Policy, LAN Port Egress
Mode, LAN Port Ingress Mode, Max Frame Size, Counter Mode, and Power
Forwarding.
NOTE: For help determining the best configuration options for your system, see
the Changing Device Configuration section.
8 Simply select the value you wish to change from the drop-down list of options.
NOTE: You can click Apply at any time to save the changes you have made. But
be sure to click Apply after you have finished making all your changes.
