Cabling the ATM Module

The ATM module offers a single OC-3 interface,
providing a 155 Mbps connection over multimode
fiber.
To cable the ATM Module:
Plug the male SC connectors on the multimode fiber
1
cable into the port on the ATM module until they
click into place.
Attach the other end of the cable to the network
2
device you wish to connect.

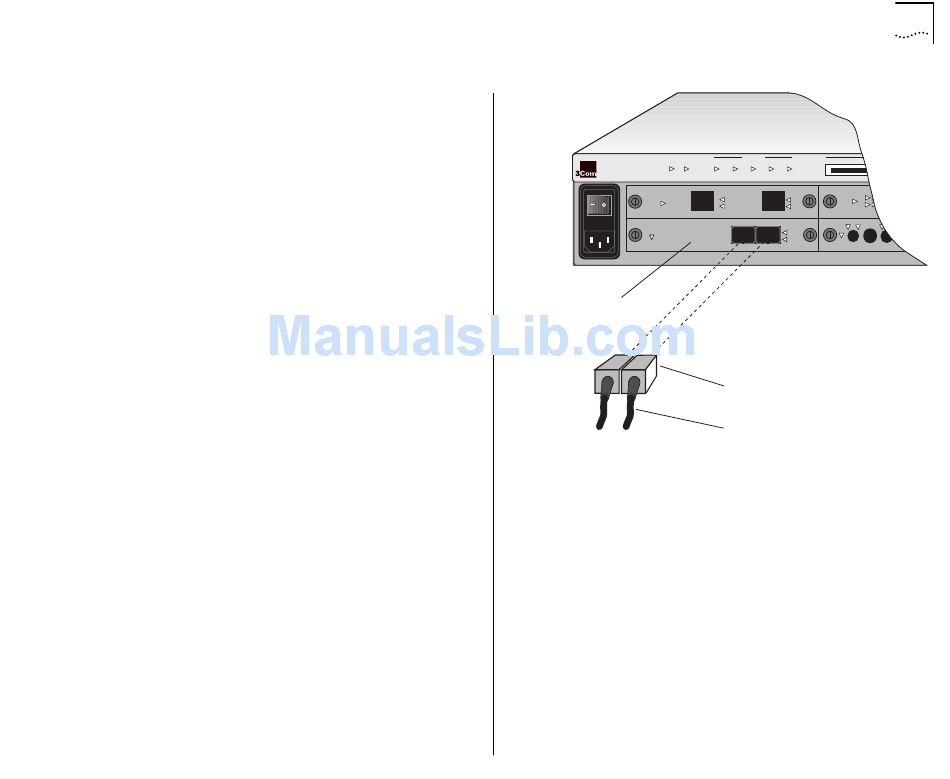

Figure 4-26 shows the cabling of the ATM module
with multimode fiber.
ERROR
™
CoreBuilder 2500
R
Power Run Processor Power
Green = Active
Yellow = Error
Active
Board
Error
Error
1
MM OC-3
Board
Error
RX
ATM module
ATM connectors
Multimode fiber
Figure 4-26 Cabling the ATM Module
