10BASE-5 (AUI) Module

This section contains information on common
10BASE-5 (AUI) configurations and how to cable the
10BASE-5 (AUI) media option.
10BASE-5 (AUI) Configuration

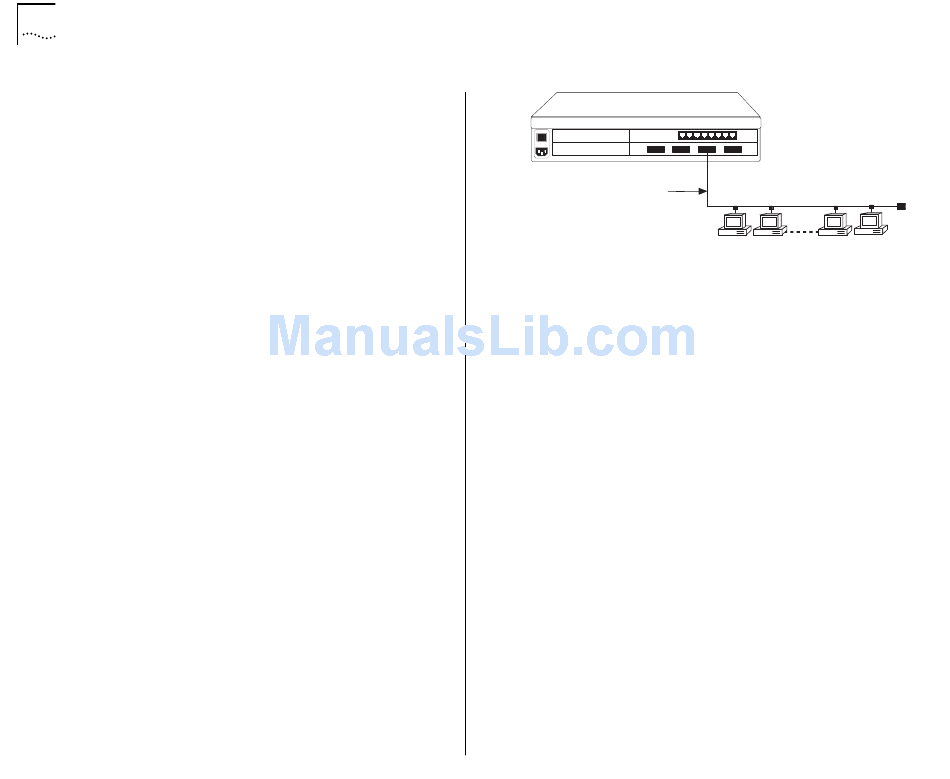

A sample 10BASE-5 (AUI) configuration is illustrated
in Figure 4-9. Your configuration may have different
quantities or types of devices than pictured in this
example.
Figure 4-9 shows an Ethernet module with
10BASE-5 (AUI) connectors attached to a coaxial
cabling segment. In this example, network segments
are using cable that conforms to the IEEE 802.3
Type 10BASE-5 specification.
.
10BASE-5 cable
Figure 4-9 Sample Ethernet Configuration Using the
10BASE-5 (AUI) Module
You can also attach the module to other types of
Ethernet/IEEE 802.3 wiring and cabling using
different transceivers.
Each of the four AUI ports may connect to a
different type of Ethernet cabling segment.
PCs
