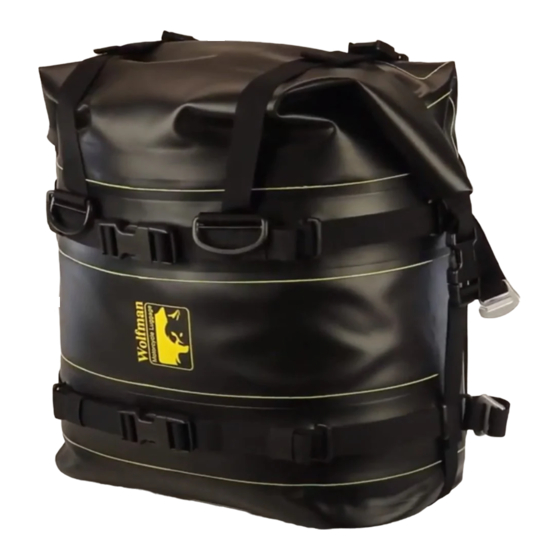

Mounting instructions: Rocky Mountain-EXP Saddle Bags #SB-1
*READ THROUGHLY BEFORE ATTACHING BAGS TO RACKS*
*For best results take a test ride before putting your Rocky Mountain-EXP Saddle Bags to use*
*Helpful hint: Before you begin stuff each bag with a sleeping bag or quilt to give it body*

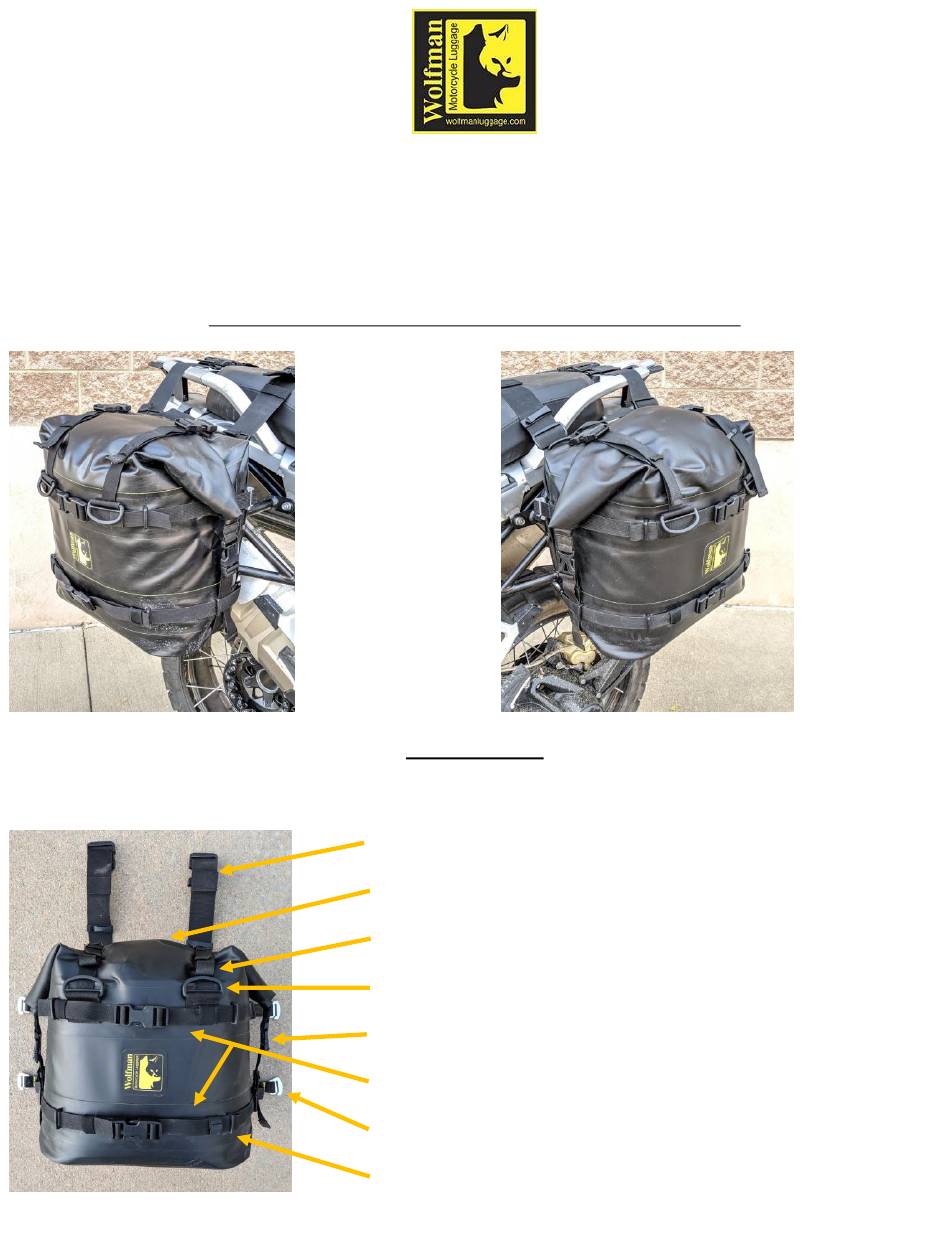

FIG1 Right Side
*Please note the various parts of the saddlebag. Since the left and right bags are identical only one is shown.
Thank you for purchasing the Rocky Mountain-EXP Saddle Bags
*The mounting is the same for both left and right bags*
A properly mounted pair of Rocky Mountain-EXP Saddle Bags.
FIG3
Seat Straps
Handle
Top Straps
2" D-Rings- 2 at front, 2 at rear
Roll Top Buckles- at Each Side
Front 1" Buckles- Top and Bottom
G-Hooks – 4 per Bag
Bottle Holster/Rolie Bag Mounting Loops- 4 per Side
FIG2 Left Side
Bag orientation
1
Advertisement
Table of Contents
Related Manuals for Wolfman Rocky Mountain-EXP SB-1
Summary of Contents for Wolfman Rocky Mountain-EXP SB-1
- Page 1 Mounting instructions: Rocky Mountain-EXP Saddle Bags #SB-1 Thank you for purchasing the Rocky Mountain-EXP Saddle Bags *READ THROUGHLY BEFORE ATTACHING BAGS TO RACKS* *For best results take a test ride before putting your Rocky Mountain-EXP Saddle Bags to use* *Helpful hint: Before you begin stuff each bag with a sleeping bag or quilt to give it body* *The mounting is the same for both left and right bags* A properly mounted pair of Rocky Mountain-EXP Saddle Bags.
- Page 2 ATTACHING ROCKY MOUNTAIN-EXP SADDLE BAGS TO VIRTUALLY ANY MOTORCYCLE SIDE RACK 1- Pinch to unfasten the 1” buckles on the upper and lower mounting patches to quickly loosen the 1” side mounting straps. FIG4 Pinch to Unfasten 1” Buckles 2- Place bags over the seat and/or rear rack. Depending on the width of your motorcycle, you may need to adjust the height of each bag.
- Page 3 ATTACHING THE BAGS TO THE SIDE RACK WITH THE G-HOOKS 3- Thread the 1” webbing from the inside of the side rack hoop around the tube to the outside. FIG6 4- Slide the Slot on the G-Hook over the outer most webbing (Single Layer of Webbing) as shown in FIG7-8-9 FIG6 FIG7 FIG8...
- Page 4 5-Properly Fastened G-Hook FIG10-11-12 FIG10 Side View FIG11 Top View FIG12 Correctly Fastened G-Hoop Top and Bottom 6-Repeat steps 6-9 for all saddle bag straps (4 per bag). 7- Tighten the 1” side mounting straps threaded through each cam buckle on front of each bag. FIG13...
- Page 5 Tighten straps to secure and compress bag to the rack (pull side mounting straps away from the cam buckles in the direction of the arrows). FIG13 9- Thread excess webbing through elastic loops, repeat this for all excess webbing. FIG14 FIG14 10- Tighten the 2”...
- Page 6 On the exhaust side, be careful not to touch the exhaust as you can be burned! 16- Use the handles to remove the bags away from the side racks. Note: All of the mounting straps on the Wolfman Rocky Mountain-EXP Saddle Bags are removable and replaceable. Extra mounting kits can be purchased from us.
- Page 7 The Rocky Mountain-EXP Saddle Bags have 4- two-inch D-rings incorporated into the top and front of the bags. FIG3 These are for attaching additional Wolfman products such as a small or medium Rolie Bag or our Bottle Holster for additional fuel or water. The four, one-inch plastic loops on the side of each bag that are for mounting our Bottle Holster to hold either a fuel or water bottle.
