Wolfman Enduro Mounting Instructions

4 point harness tank bags

4 Point harness mounting instructions for all 2020 Wolfman Enduro (TB-2) and

Blackhawk (TB-3) Tank Bags. Thank you for your Purchase

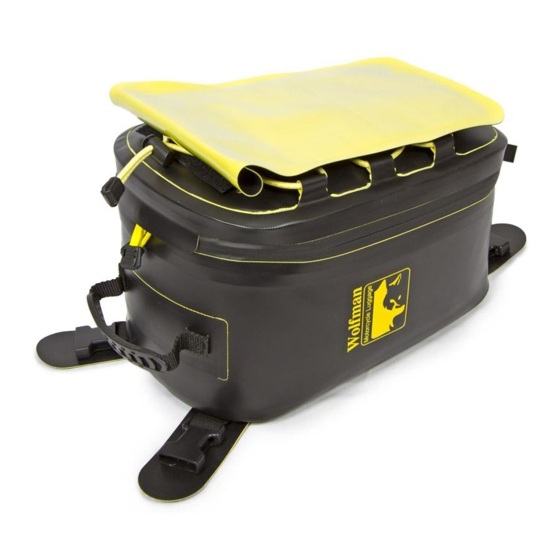

FIG1 Enduro Tank Bag

FIG2 Blackhawk Tank Bag

All the bags mentioned use the same method to attach to your motorcycle.

**Before you begin, make sure your gas tank and bag are free of dirt and grime. If you have a painted tank, we

recommend you wash and wax. Also clean the frame tubes, and underside of frame behind the steering tube. **

1-Front Harness

The front harness: 1-long 1" webbing strap, 1-short elastic keeper, 2-1" male buckles. FIG3

FIG3

2- Separate one, 1" buckle from the mounting strap and pull the webbing through the elastic keeper. Thread the

long 1" mounting strap under the frame, behind the steering tube, behind any wires and hoses at the sides (see

arrow), thread through the elastic keeper and the 1" male buckle.

FIG4 Side view

FIG5 Top view

Table of Contents

Do you have a question about the Enduro and is the answer not in the manual?

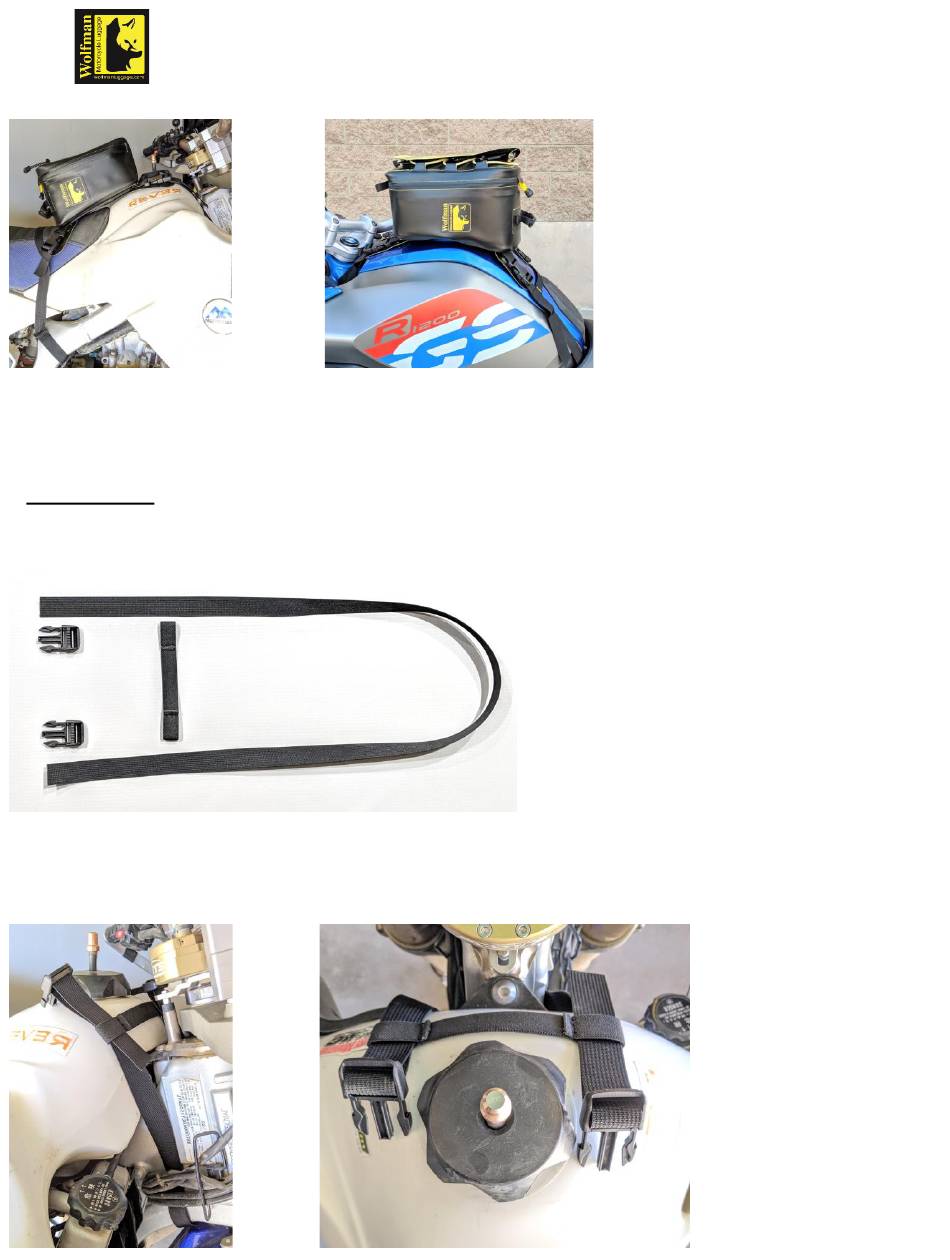

Page 1 4 Point harness mounting instructions for all 2020 Wolfman Enduro (TB-2) and Blackhawk (TB-3) Tank Bags. Thank you for your Purchase FIG1 Enduro Tank Bag FIG2 Blackhawk Tank Bag All the bags mentioned use the same method to attach to your motorcycle.
Page 2 FIG7 FIG8 Top view Front and Rear Mounting Harnesses Use the elastic keepers! (On most Enduro/dual sport bikes when removing the bag from the bike the keeper will keep the mounting straps from melting on the exhaust header pipe). ** Hint (For a really clean look, you can place the keeper between the seat and the gas tank, however, you may have to remove the seat to do this).

Blackhawk
