Wolfman Mounting guidelines for the Small, and Medium, Rolie Bag to Saddle
Bag mount. You can now use your Rolie bags as Saddle bags. The kit does not need a
KTM EXC/XCW Models
rack.
Complete Rolie Saddle Bag Kit on a KTM 530 XCW.
You will need:

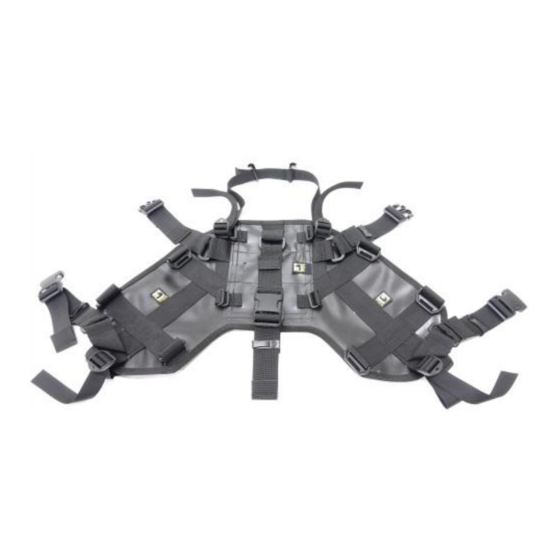

Saddle Bag Mount:
Small Rolie
Medium Rolie
Small and Medium Rolie Bag of your choice:
You can configure your set up like so (with capacities):
2 Small Rolie Bags= 9 liters or 550 cu.in.
3 Small Rolie Bags= 13.5 liters or 825 cu.in
2 Medium Rolie Bags=17 liters or 1036 cu.in.
3 Medium Rolie Bags=25.5 liters or 1554 cu.in.
2 Small Rolie Bags and one Medium=17.5 liters or 1068 cu.in.
2 Medium Rolie Bags and one Small=21.5 liters or 1311 cu.in.
****Please read and understand these instructions before touching your bike, rack or wrench.****
1
Advertisement
Table of Contents
Related Manuals for Wolfman Saddle Bag Mount
Summary of Contents for Wolfman Saddle Bag Mount
- Page 1 Wolfman Mounting guidelines for the Small, and Medium, Rolie Bag to Saddle Bag mount. You can now use your Rolie bags as Saddle bags. The kit does not need a KTM EXC/XCW Models rack. Complete Rolie Saddle Bag Kit on a KTM 530 XCW.
- Page 2 ************************************************************************************* Installing the Rolie Saddle Bag Mount. 1. Place Saddle Bag Mount across the seat and rear fender of your bike. Center the top patch patch on the bike. Fig.1 **Make sure the Saddle Bag Mount does not over hang the Side panel, Especially on Exhaust Side**...
- Page 3 Fig.1 2. The rear Strap goes the rear fender between the Underside of the rear fender and "KTM Description- Number Plate Carrier." You will need to losen the two 8mm bolts to thread the webbing through. Fig. 5 Fig.5 Under Fender View Top View 6.
- Page 4 7. Tighten all straps Snug. Now to Attach the Rolie Bags. 8. There are two rectangle buckles on the top front of the Saddle Bag Mount. You will use the BOTTOM Rectangle Buckle to make saddle bags. Fig. 10 Fig. 10...
- Page 5 10. Attach the Wide strap across the outside of the Rolie Bag. Thread through the Handle Loop. Secure the excess web to the Flappy Strap Keepers. Fig.13 Fig.13 11. Repeat Steps 8 through 10 for the other side. 12. Attaching the Center Rolie Bag. 13.
- Page 6 16. Tighten All Webbing Securely. 17. All the Excess webbing can get tucked under the bag itself. Fig.17 Fig.17 18. The Correctly Mounted Kit should look like the Complete Rolie Saddle Bag Kit on Page 1. **HINT****************************************************************************** For Best Results use the Ratchet Method of Tightening webbing. Most of us just grab and pull webbing to tighten it.
