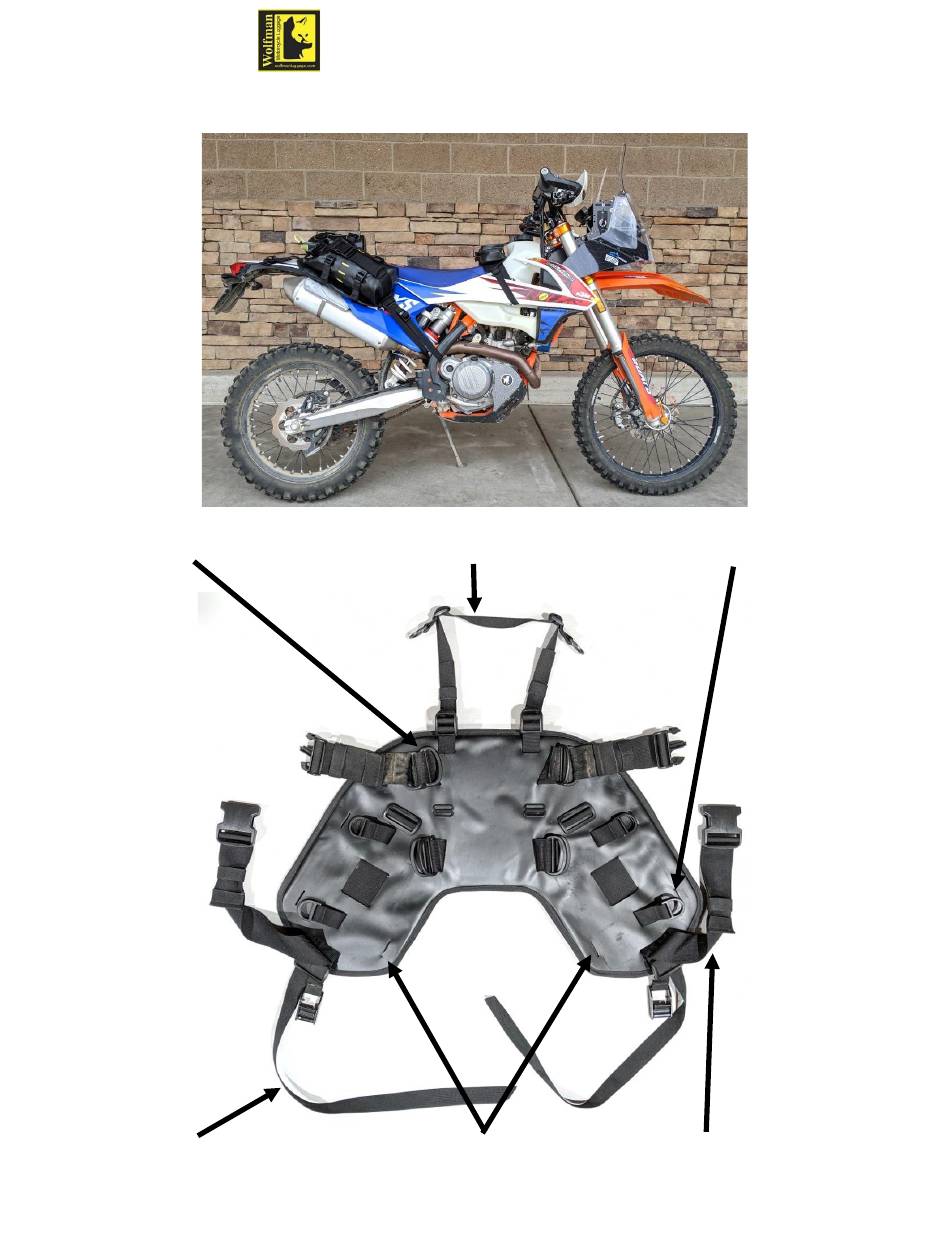

2020 E-Base SB-4 Mounting Instructions
****Please read and understand these instructions before touching your bike, rack or wrench. ****
Instructions for Complete UnRack /E-Base Kit. Thank You for your purchase!

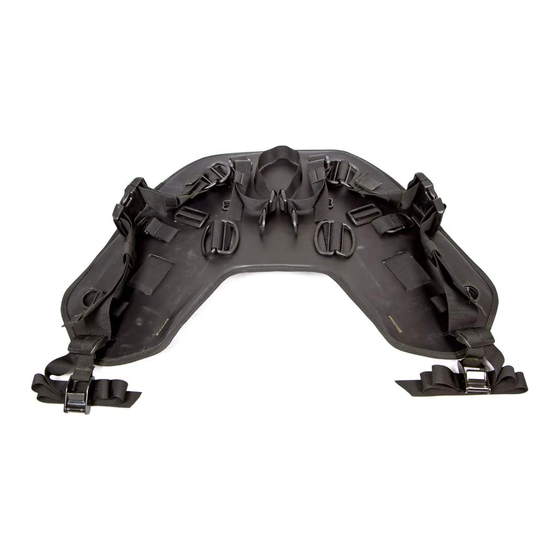

The E-Base Parts FIG1
Center 2" D-Rings (4)
1" D-Rings (For Mounting Bottle Holster)
Rear Mounting Strap
Front Mounting Straps
Rolie Bag Slots (3per leg)
Center Mounting Straps
1
Advertisement
Table of Contents
Related Manuals for Wolfman E-Base SB-4 2020
Summary of Contents for Wolfman E-Base SB-4 2020
- Page 1 2020 E-Base SB-4 Mounting Instructions ****Please read and understand these instructions before touching your bike, rack or wrench. **** Instructions for Complete UnRack /E-Base Kit. Thank You for your purchase! The E-Base Parts FIG1 Center 2” D-Rings (4) 1” D-Rings (For Mounting Bottle Holster) Rear Mounting Strap Front Mounting Straps Rolie Bag Slots (3per leg)
- Page 2 I. Installing the E-Base. A Kiowa Heat Shield (HS402) is a MUST. As Wolfman Does not Warranty Heat Melt. There are three methods of mounting the E-Base on your bike, depending on how your bike is set up. A. Tension-O-Matic rear Strap. **No Rack or space above tail light on bike. ** 1-Place E-Base across the seat and rear fender of your bike.
- Page 3 B. Single Rear Strap. This method uses the Space Between the tail light and rear fender. 1-Place E-Base across the seat and rear fender of your bike. FIG5 FIG5 FIG6 2-Slide Rear Strap in the space between Taillight and Fender, towards seat until it stops. FIG6 3- Tighten rear Strap to set seat position.
- Page 4 II. Mounting the Front Straps to your motorcycle- Two methods. D. Using Wolfy Strap Mounts -A1017. Install the Wolfy strap mounts. 1. Thread the Front Mounting strap through the slot and back to the buckle. FIG8 FIG8 2.Repeat for the other side. Fig.13 Tighten both sides evenly to secure. Cut off any excess webbing and melt end with a lighter to avoid unraveling.
- Page 5 D-Prepare the Rolie Bags. There are two methods to prepare the Rolie bags. 1-Thread the 1” Mounting straps through the slot under the Buckles on the Top/Front of the Rolie Bag.FIG11 This is the most universal method. ***Use this method to attach a Rolie Bag to the Center 2” D-Rings FIG1 FIG11 2-BEST METHOD- “HI-LO”...
- Page 6 III. Attaching Rolie Bags. All Rolie Bags attach to the same 2” D-Ring and 3 Slots on each leg. 1-Thread the 1” Mounting strap through the Front Outside 2” D-Ring on the E-Base. FIG11 FIG12 FIG11 Front-Outside 2” D-Ring FIG12 1” Webbing through Lower Slot on Back Patch and E-Base Slots 2-Thread the remainder of 1”...
- Page 7 F. Attaching Center Bag. 1. Thread the straps of the center bag through the 2” D-Rings on the Top of the E-Base. FIG16 FIG16 G. Ideas and Tips FIG17 2. If you want to attach a 303 Long Rolie, 303 Duffle, or want more seat room. Use the 2 rear 2” D-Rings and the adjustable 1”...
