*READ THROUGHLY BEFORE MOUNTING BAGS TO MOTORCYCLE
*Helpful hint: Stuff each bag with a sleeping bag or quilt to give it body.
*For best results take a test ride before putting your E-12 Saddle Bags to use.
*Mounting is the same for both sides.
USE our HS402 Kiowa Heat /Shield (Not included) as Wolfman Does Not Warranty Heat Damage
If applicable Use our A1017 Wolfy Strap Mounts

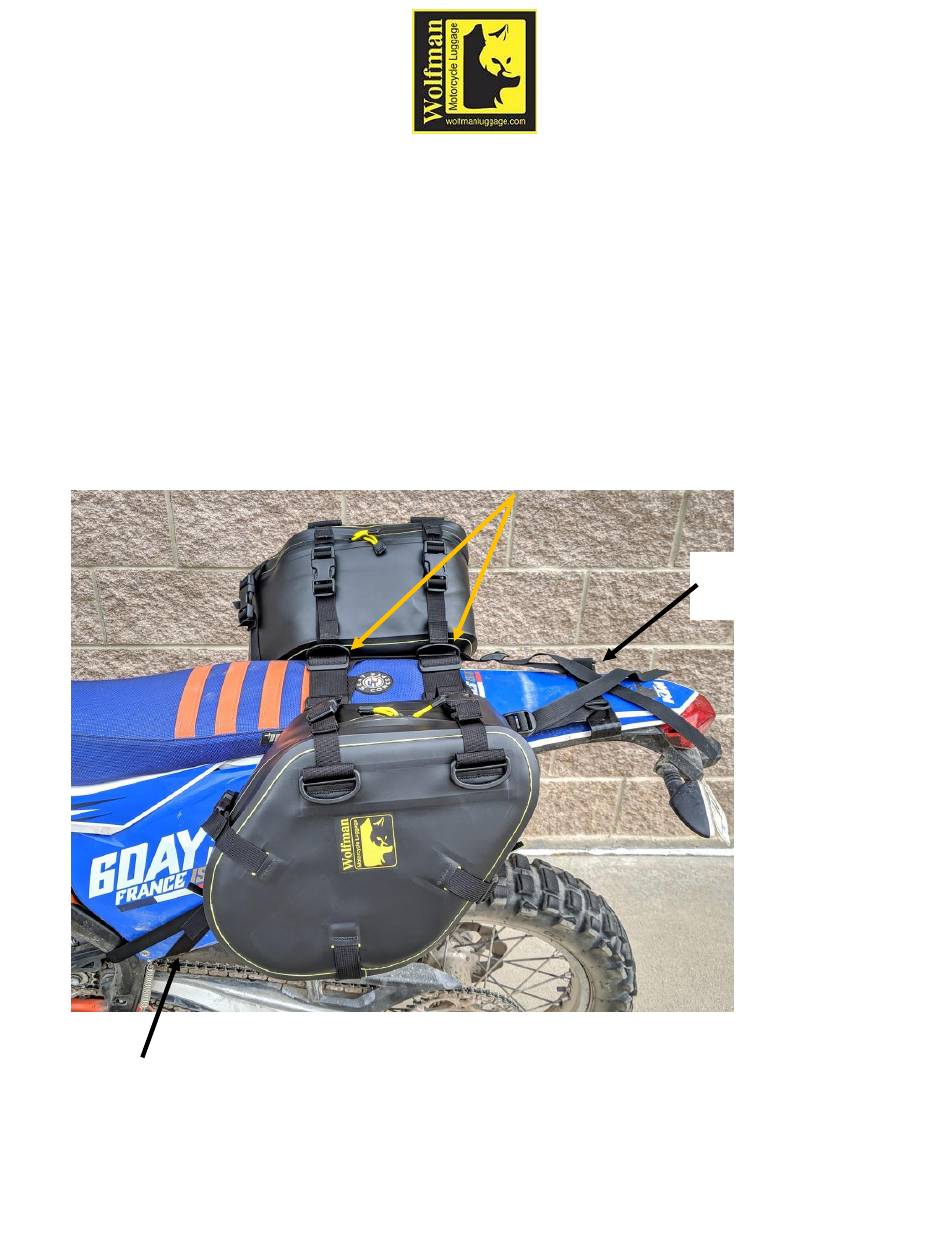

Pictured is a properly mounted pair of E-12 Saddle Bags. FIG1
FIG1
Mounting instructions: Wolfman E-12 Saddle Bags #SB-2
Including our "Tension-O-Matic" rear mounting system
2" Seat Straps
1
Tension-O-Matic
rear mounting
