This kit contains the following:
Quantity Description
1
Top rack
2
8mm x 1.25 x 20mm Socket head bolt
2
8mm x 1.25 x 35mm Socket head bolt
2
3/4 x 7/8 Aluminum spacer
4
8mm Washer (small)
Tools required:
BLUE Loctite or a medium strength thread locker
6mm Hex wrench
Read and understand these instructions prior to installation!

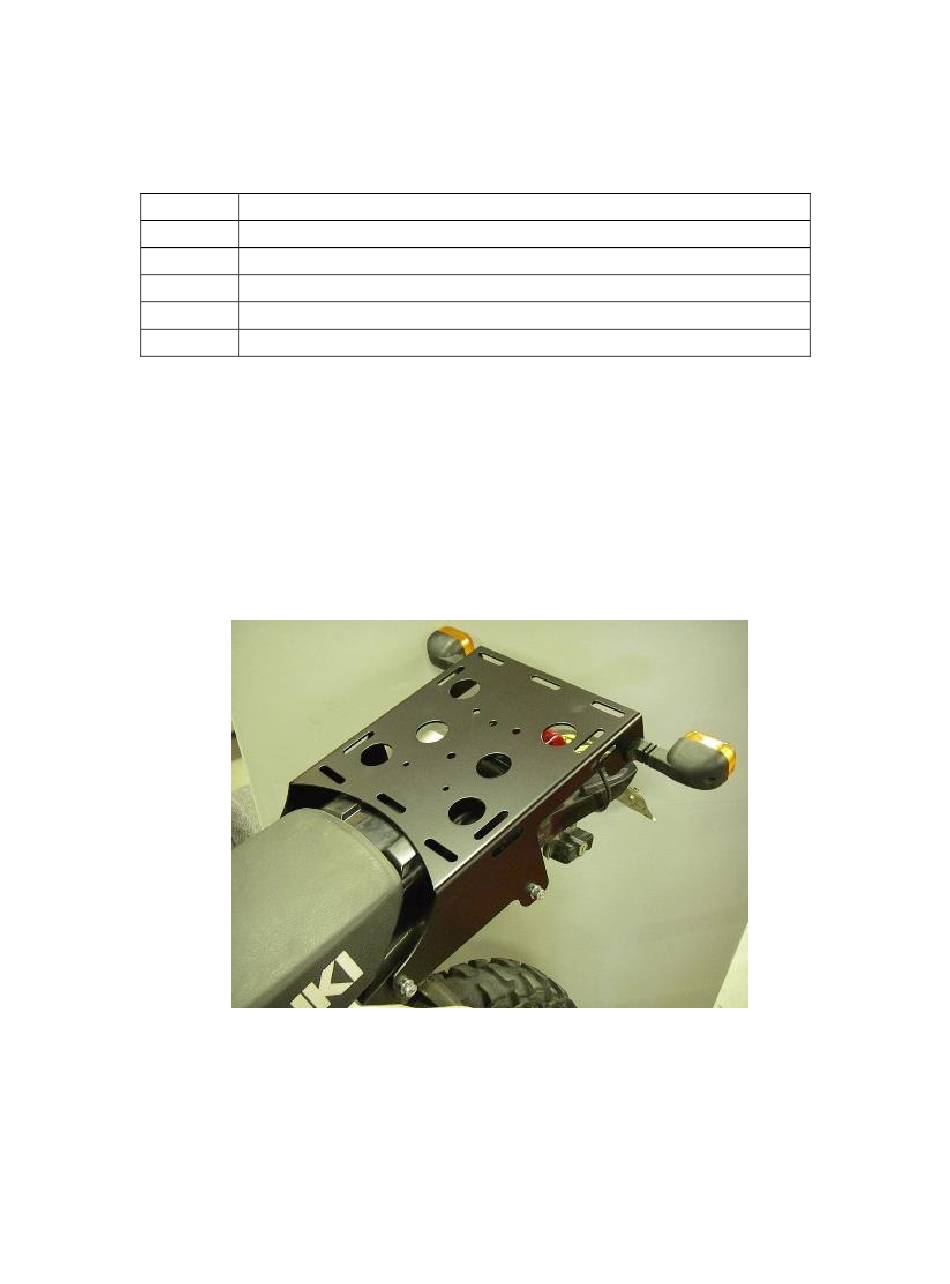

Correctly Mounted Wolfman top rack on a DR650
Remove the OEM grab handles and turn signals, and set aside. (Turn signals
connect/disconnect underneath the seat, and route underneath along side of the rear
fender plastic.)
Mounting instructions for Wolfman
DR650 Top rack
Part # RTR4
Be sure to thread lock all bolts
FIG 1
Advertisement
Table of Contents
Related Manuals for Wolfman RTR4
Summary of Contents for Wolfman RTR4
- Page 1 6mm Hex wrench Read and understand these instructions prior to installation! Be sure to thread lock all bolts Correctly Mounted Wolfman top rack on a DR650 FIG 1 Remove the OEM grab handles and turn signals, and set aside. (Turn signals connect/disconnect underneath the seat, and route underneath along side of the rear fender plastic.)
- Page 2 Wolfman Top Rack 1. Place top rack into position on motorcycle. FIG 1 2. Install two 8mm washer onto both 8mm x 1.25 x 20mm socket head bolts with thread lock, and run each of them through the front top rack mount holes, into the threaded sub-frame mount holes (same holes as used on the grab handles) (don’t tighten).
- Page 3 FIG 3 Re-install the turn signals onto the Wolfman top rack. (See FIG 1 for location.) The turn signals mount into the rectangular-shaped holes to the rear of the rack on each side. Now that the top rack is on the DR650, the Bolt Tightening sequence: Rear rack mounts.
