Power Supply
Features
S 4005 P
WITCH
This chapter describes how to install and remove power supplies from the
Switch 4005 chassis. The sections are titled as follows:

Power Supply Features

I
Installing a Power Supply
I
Removing a Power Supply
I
Troubleshooting a Power Supply
I
The Switch 4005 can contain two 300-Watt, modular AC power supplies (Model
Number 3C16822), but only one is required for normal operation of a fully loaded
chassis. The power supplies provide power to the management modules, interface
modules, fans, and backplane.
Power supplies are installed from the rear of the Switch 4005 chassis, as shown in
Figure 9.

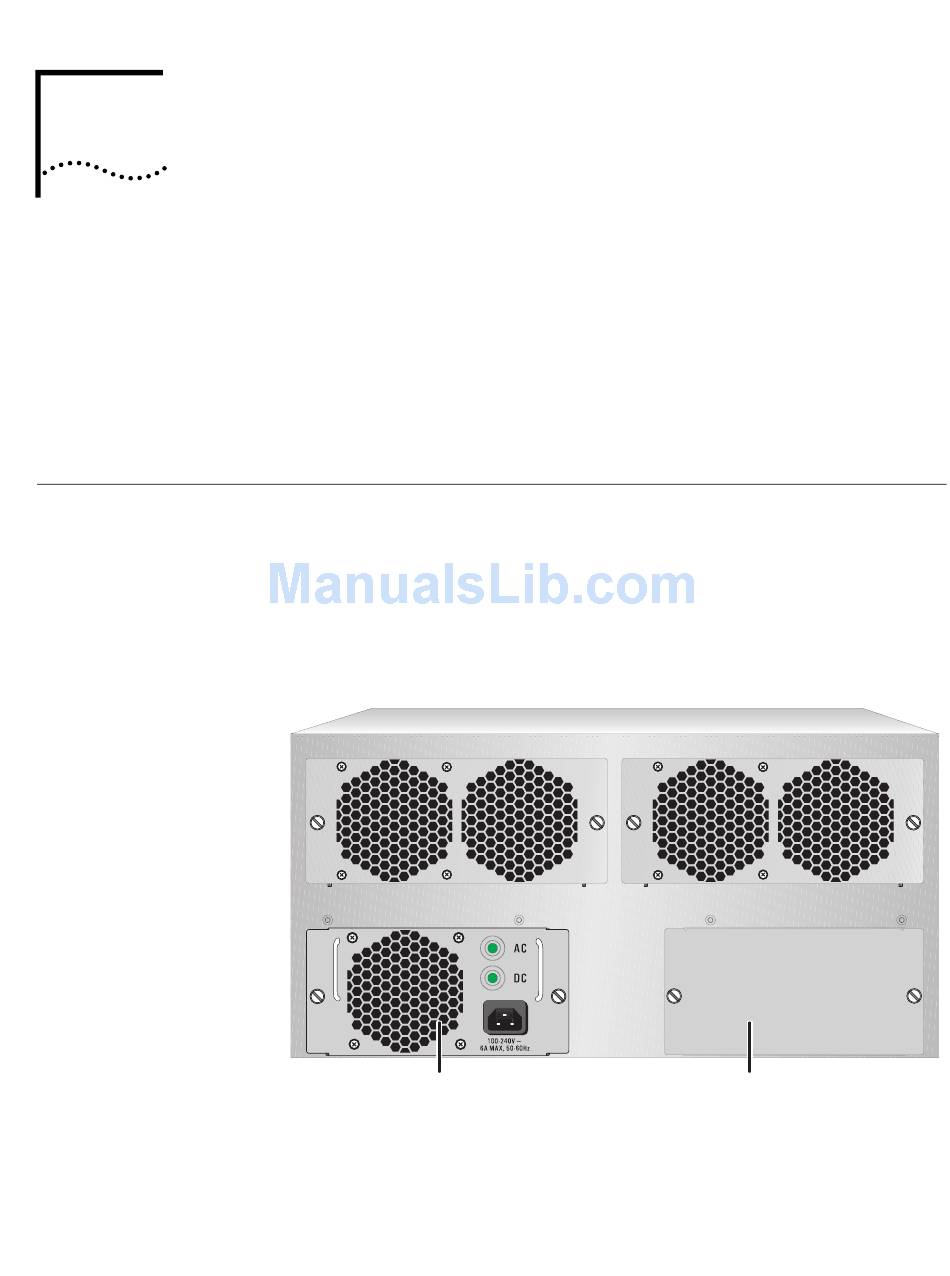

Figure 9 Switch 4005 with Minimum Rear Configuration — 2 Fans and 1 Power Supply
Power
supply
(in slot 1)
S
OWER UPPLIES
Power
supply
slot 2
