Table or Shelf
Installation
HASSIS
To install the chassis on a table or shelf, follow these steps:
1 Read the section titled "Preinstallation Guidelines" in this chapter as well as all
sections titled "Safety Information".
2 Using two people, lift the chassis onto the table or shelf.
3 Remove the four rubber feet from the hardware kit.
4 Position the chassis on its side so that you can access the bottom of the chassis.
5 Remove the protective covering from the adhesive on the rubber feet, and attach
one foot at each corner within the scribed squares. See Figure 7.

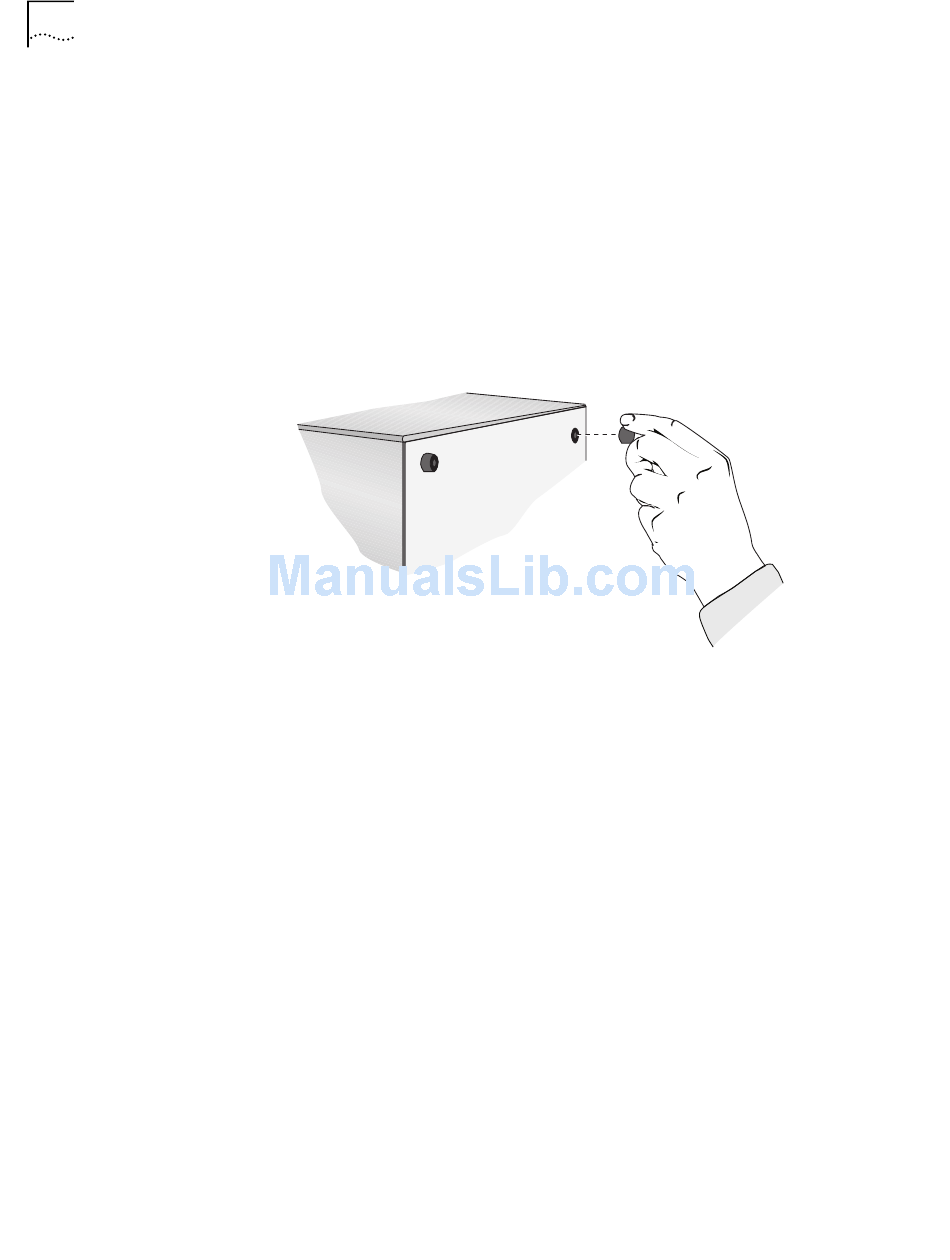

Figure 7 Attaching Rubber Feet to the Switch 4005 Chassis
6 Position the chassis so that it rests upright and level on its rubber feet.
7 Ensure that the front, sides, and the rear of the chassis are unobstructed and that
they are in compliance with ventilation requirements.
