Building a System

Servicing a System

Figure 2 shows the rear view of a standard Switch 4005 chassis in the minimum
configuration.

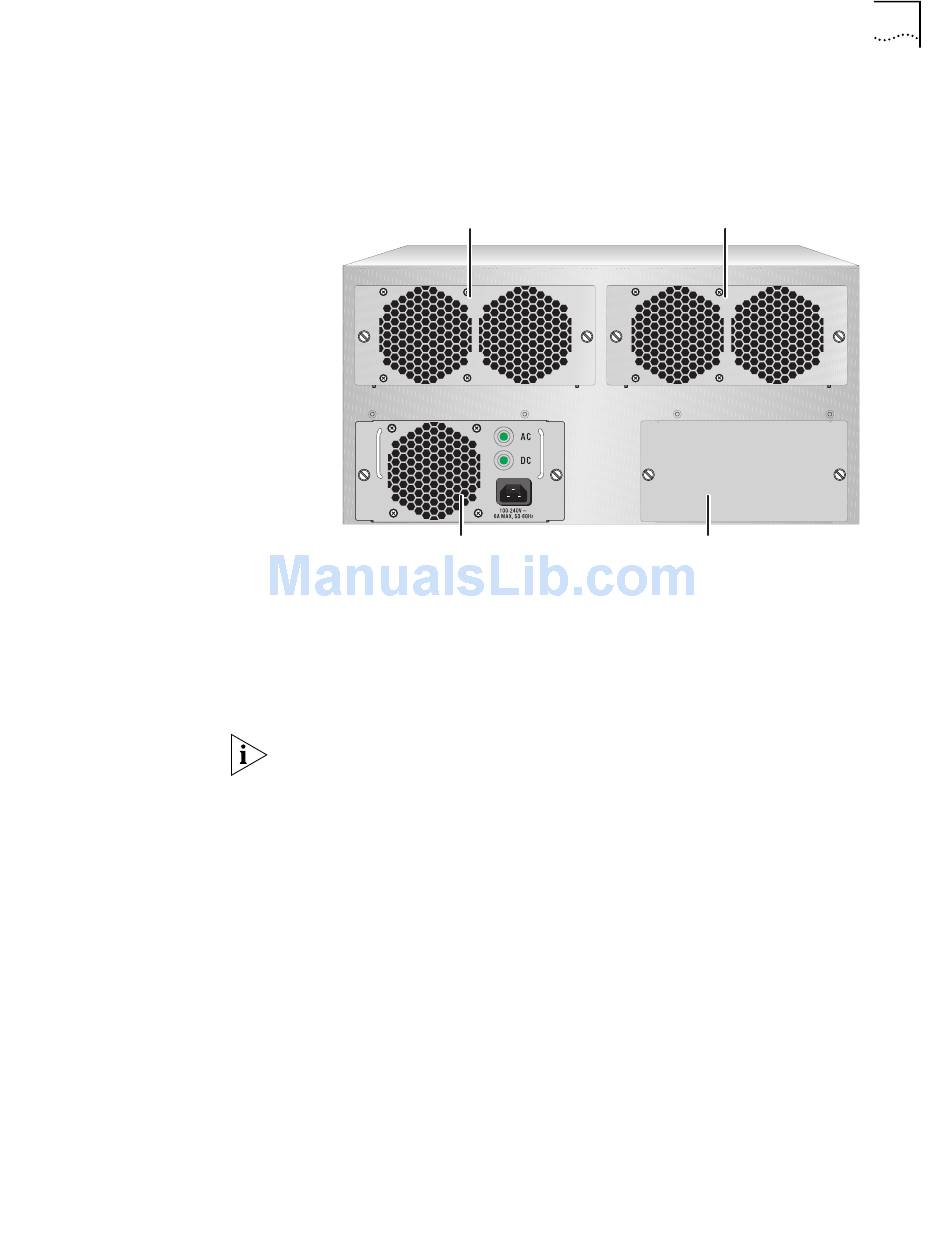

Figure 2 Rear View of a standard Switch 4005 Chassis
Fan tray
(in slot 1)
Power
supply
(in slot 1)
You can build a complete system from component items that are ordered
separately, or you can simplify your installation by purchasing a preconfigured
starter kit and adding components to it as necessary.
A starter kit consists of a standard chassis (two fan trays, one power supply, one
SFMM) and a variety of preinstalled Fast Ethernet or Gigabit Ethernet Interface
Modules to which you can add additional interface modules of your choice. Starter
kits are designed to reduce installation time. For details on the available starter kit
configurations, see your 3Com network supplier.
For service spares purposes, all component items such as fan trays, power supplies,
and modules can be purchased separately at any time. Check with your network
supplier to see if they stock spare components, provide service, or resell 3Com
service agreements.
Product Overview
Fan tray
(in slot 2)
Power
supply
slot 2
