Workstation Configuration Using DHCP Smart Mode
If you have chosen DHCP Smart Mode, you need to
configure some parameters on your workstation.
Set up the workstations on the OCR 812 LAN to
automatically obtain their IP address. This is the default
setting in Windows 95.
If you have configured IP addresses manually on your LAN,
you should use the following procedure on each
workstation to allow them to automatically learn the new
addresses instead.
The following is an example of this procedure as it runs on
Windows 95.
1 Open the Control Panel. Select Network > Configuration
> TCP/IP to access the TCP/IP Properties Menu.

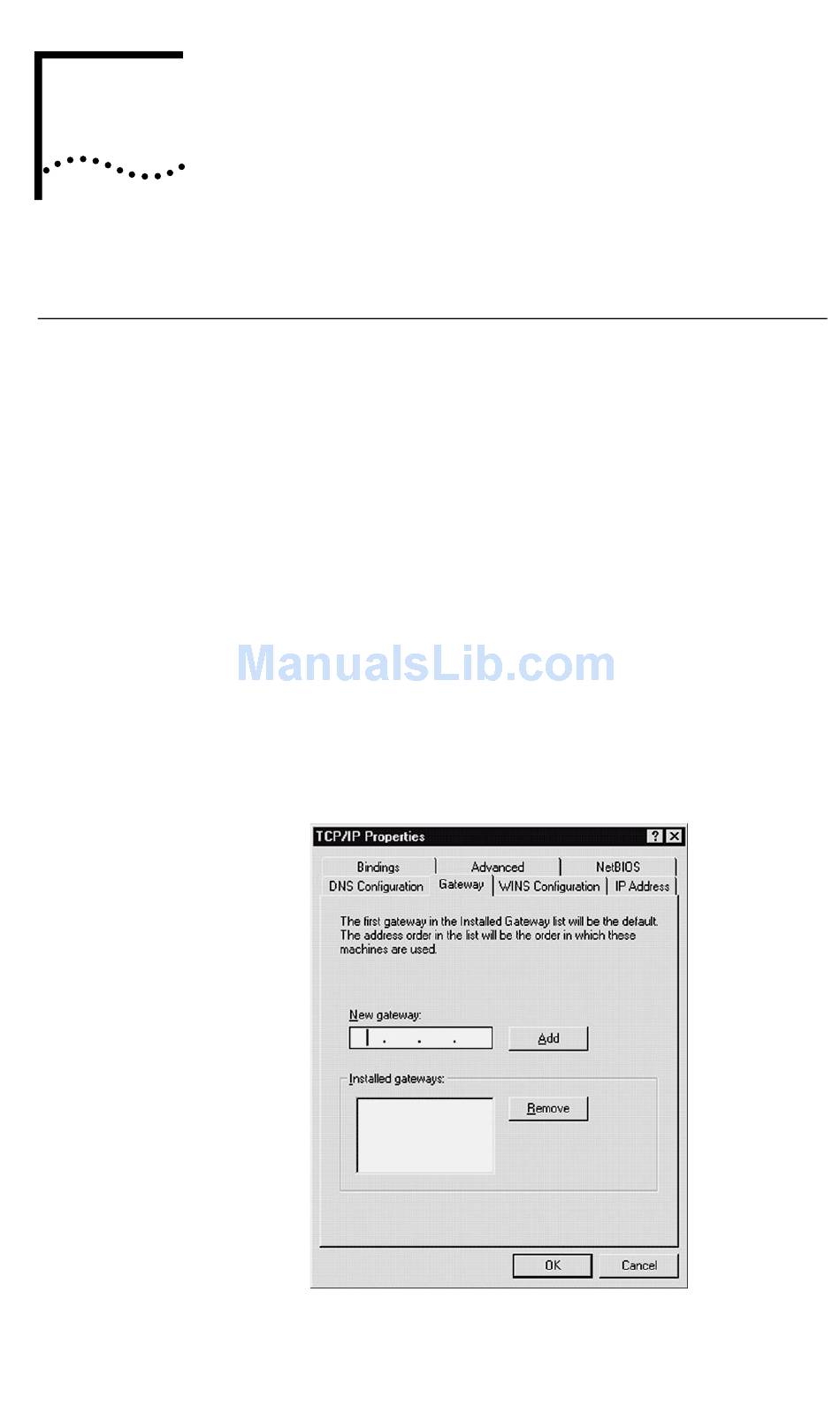

2 Select the Gateway tab. Remove any IP addresses in the
Installed Gateways field.
