Mod Tea Philter Troubleshooting Supplement

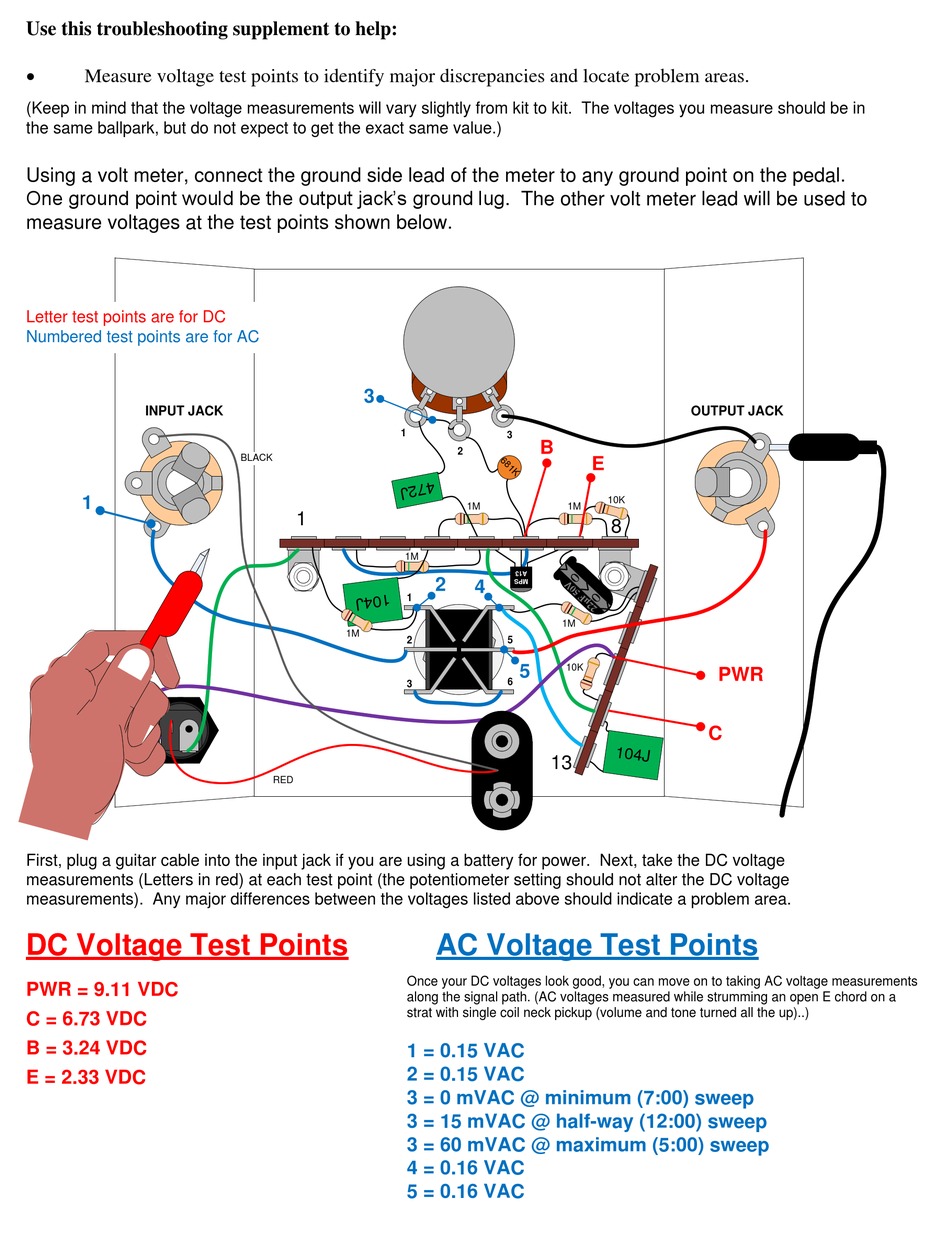

Use this troubleshooting supplement to help:

Measure voltage test points to identify major discrepancies and locate problem areas.
(Keep in mind that the voltage measurements will vary slightly from kit to kit. The voltages you measure should be in
the same ballpark, but do not expect to get the exact same value.)
Using a volt meter, connect the ground side lead of the meter to any ground point on the pedal.
One ground point would be the output jack's ground lug. The other volt meter lead will be used to
measure voltages at the test points shown below.
Letter test points are for DC
Numbered test points are for AC
INPUT JACK
1
First, plug a guitar cable into the input jack if you are using a battery for power. Next, take the DC voltage
measurements (Letters in red) at each test point (the potentiometer setting should not alter the DC voltage
measurements). Any major differences between the voltages listed above should indicate a problem area.
DC Voltage Test Points
PWR = 9.11 VDC
C = 6.73 VDC
B = 3.24 VDC
E = 2.33 VDC
3
1
BLACK
1
1M
1
1M
2
3
RED
Once your DC voltages look good, you can move on to taking AC voltage measurements
along the signal path. (AC voltages measured while strumming an open E chord on a
strat with single coil neck pickup (volume and tone turned all the up)..)
1 = 0.15 VAC
2 = 0.15 VAC
3 = 0 mVAC @ minimum (7:00) sweep
3 = 15 mVAC @ half-way (12:00) sweep
3 = 60 mVAC @ maximum (5:00) sweep
4 = 0.16 VAC
5 = 0.16 VAC
3
B
2
E
10K
1M 1M
2
4
1M
5
5 10K
6
13
AC Voltage Test Points
OUTPUT JACK
8
PWR
C
