Use these instructions to learn:
How to build a tube preamp pedal

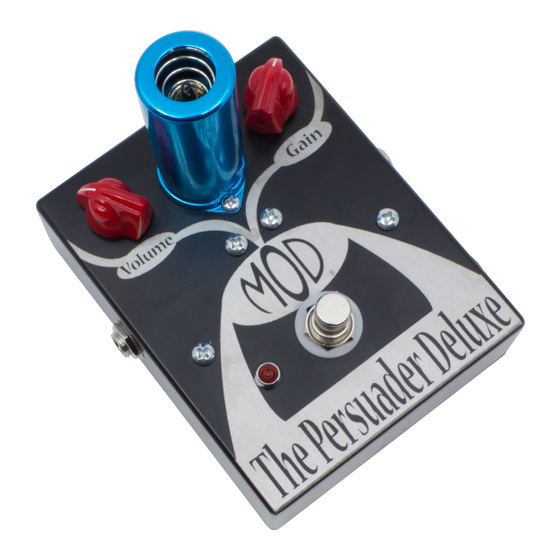

The Persuader Deluxe utilizes a Darlington preamp to push cascaded triodes into distortion. Four dual triode
tubes included with the kit provide a wide range of tones from just a hint of break up from the JJ 5751 to over
the top crunchy distortion using the NOS 12AT7. A boost switch provides an additional layer of flexibility
with added gain and a little extra bottom end. An LED indicator lights up when the Persuader Deluxe is
engaged and not in true bypass mode.
Warning: This circuit was designed for use with a 9 VDC power supply only.
THE PERSUADER DELUXE (K-980)
BOOST
1
Copyright © 2014 by modkitsdiy.com
Unplug when not in use
to save battery life.
Signal Input
(From Guitar)
9 VDC
CENTER (-)
ADAPTER
