TO
AMP
IN
Use these instructions to learn:
How to build an effects pedal for fixed wah tone.
Every guitar/wah combination has a certain sweet spot that's perfect for lead and chord work. The Tea
Philter lets you dial in everything from your favorite vocal midrange tone to thick lows and even that
"chicks for free" sound.
Warning: This circuit was designed for use with a 9 VDC power supply only.

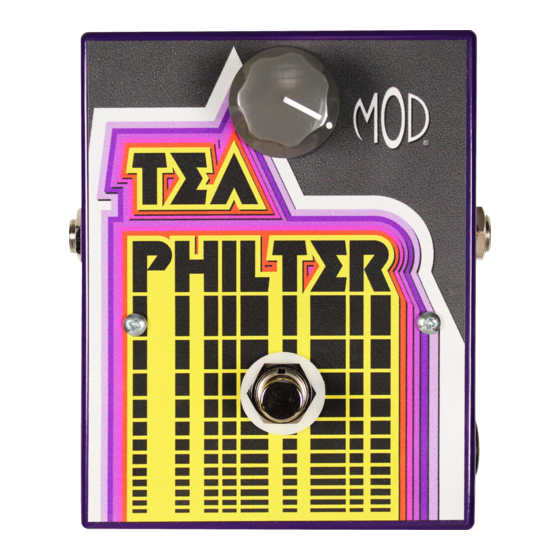

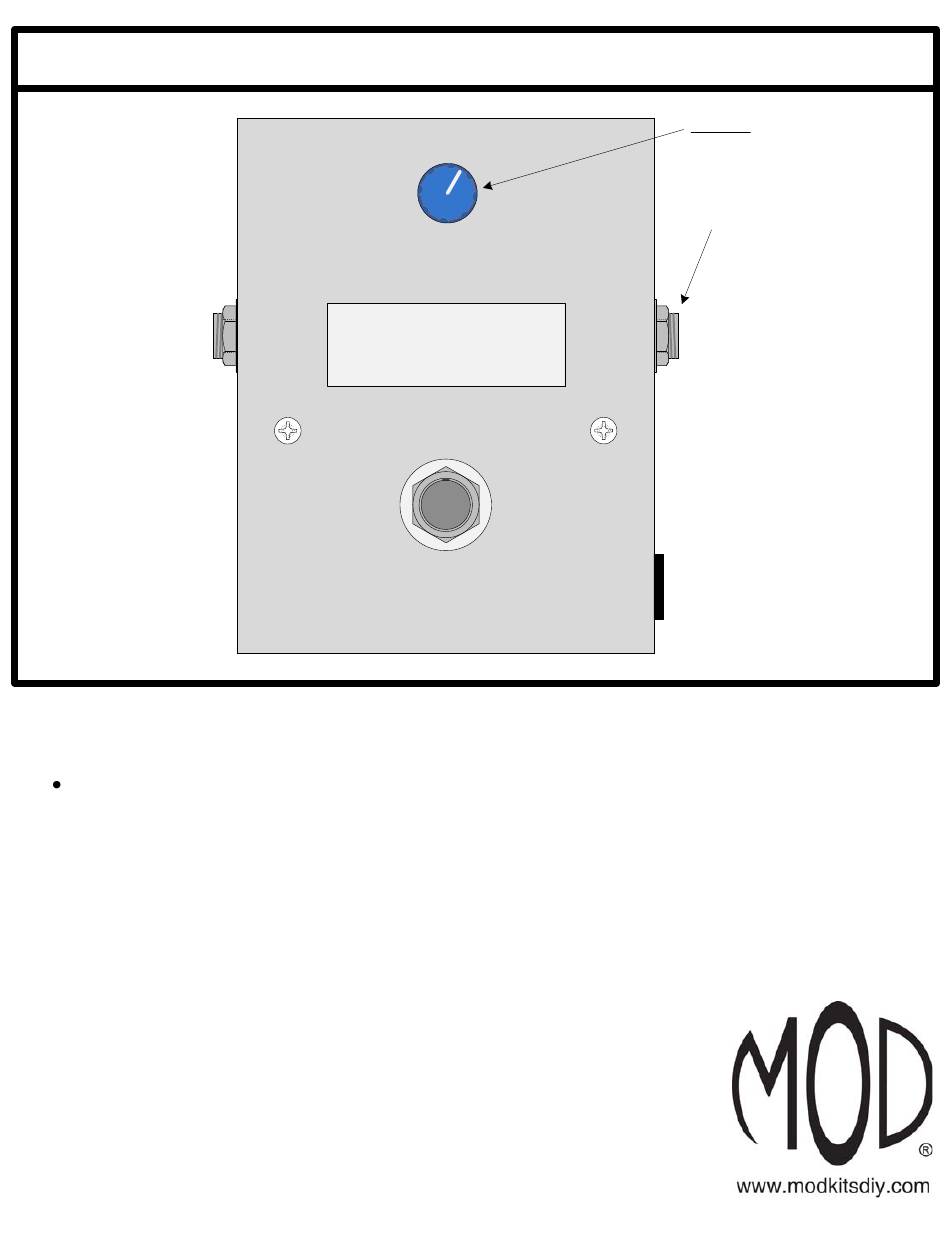

THE TEA PHILTER (K-970)
THE TEA PHILTER
Modkitsdiy.com
1
Copyright © 2012 by modkitsdiy.com
SWEEP
Counterclockwise: Toe Position (Thin)
Clockwise: Heel Position (Fat)
Unplug when not in use
to save battery life.
FROM
GUITAR
OUT
9 VDC
FROM
CENTER (-)
ADAPTER
Advertisement
Related Manuals for Mod TEA PHILTER
Summary of Contents for Mod TEA PHILTER
- Page 1 THE TEA PHILTER (K-970) SWEEP Counterclockwise: Toe Position (Thin) Clockwise: Heel Position (Fat) Unplug when not in use to save battery life. FROM THE TEA PHILTER GUITAR Modkitsdiy.com 9 VDC FROM CENTER (-) ADAPTER Use these instructions to learn: How to build an effects pedal for fixed wah tone.
-
Page 2: Table Of Contents
TABLE OF CONTENTS TOOL LIST …………………………………………………………………………...2 PARTS LIST DRAWINGS………………………………………………………….3, 4 SOLDERING TIPS …………………………………………………………………...5 STEP BY STEP ASSEMBLY INSTRUCTIONS …………………………………...6 Section 1 – Mount ¼” Jacks and Terminal Strip Components ……………...6 Section 2 – Wiring the Jack, Footswitch and Power Supply ………………….7 Section 3 –... -
Page 3: Parts List Drawings
PARTS LIST 1 Thin Stranded Wire (22 AWG) - Red DPDT Foot Switch K-PUL1569 (3 FT) P-H498 Enclosure P-H1590BBCE-GY 50kΩ Potentiometer with Audio Taper R-VA50KA Knob (Scalloped Edge) P-K801BU Terminal Strip with 8 Terminals Battery Clip P-0802H S-H155 Terminal Strips with 5 Terminals P-0501H01 Lug Common ¼”... - Page 4 PARTS LIST 2 DC Power Jack 1MΩ Resistor ½ W S-H750 R-A1M brown black green gold 0.1µF Capacitor 100V C-PEID1-100 10kΩ Resistor ½ W R-A10K brown black orange gold 0.0047µF Capacitor 100V C-PEID0047-100 680pF Capacitor 50V C-D680-50 681K 22µF Polarized Capacitor 50V C-ET22-50 22µF 50V...
-
Page 5: Soldering Tips
SOLDERING TIPS It is important to make a good solder joint at each connection point. A cold solder joint is a connection that may look connected but is actually disconnected or intermittently connected. (A cold solder joint can keep your project from working.) Follow these tips to make a good solder joint. -
Page 6: Step By Step Assembly Instructions
SECTION 1 – Mount ¼” Jacks and Terminal Strip Components Please refer to DRAWING 1 and DRAWING 2. Input Jack Orient box with single centered 5/16" hole on top and ½” hole nearest you. RING LUG GROUND LUG Mount input jack in 3/8" hole on left side of box with hardware provided. Washer goes under nut on outside of box. -
Page 7: Section 2 - Wiring The Jack, Footswitch And Power Supply
1) Mount two 1M resistors to the lower set of holes of the terminals listed below, but do not solder. Terminals #4 & 6: 1M resistor Terminals #6 & 8: 1M resistor 2) Mount a 2 ¼” piece of wire to the lower holes of terminals #2 and #6. -
Page 8: Section 3 - Finishing Up
Please refer to DRAWING 4. 1) Connect a 2 3/4” piece of wire to terminals #5 and #12. 2) Connect a 1 ½” piece of wire to footswitch lugs 3 and 6. (Bend this wire down so it rests flat against the back of the footswitch. This will keep the battery insulated from the footswitch terminals and prevent a possible short across the battery casing). -
Page 9: Assembly Drawings (4 Drawings)
DRAWING 1 5/16" INSIDE VIEW OF THE ENCLOSURE 3/8" 3/8" 9/64" 9/64" 1/2" 15/32" BOTTOM DRAWING 2 INPUT JACK OUTPUT JACK... - Page 10 DRAWING 3 INPUT JACK OUTPUT JACK DRAWING 4 INPUT JACK OUTPUT JACK BLACK...
