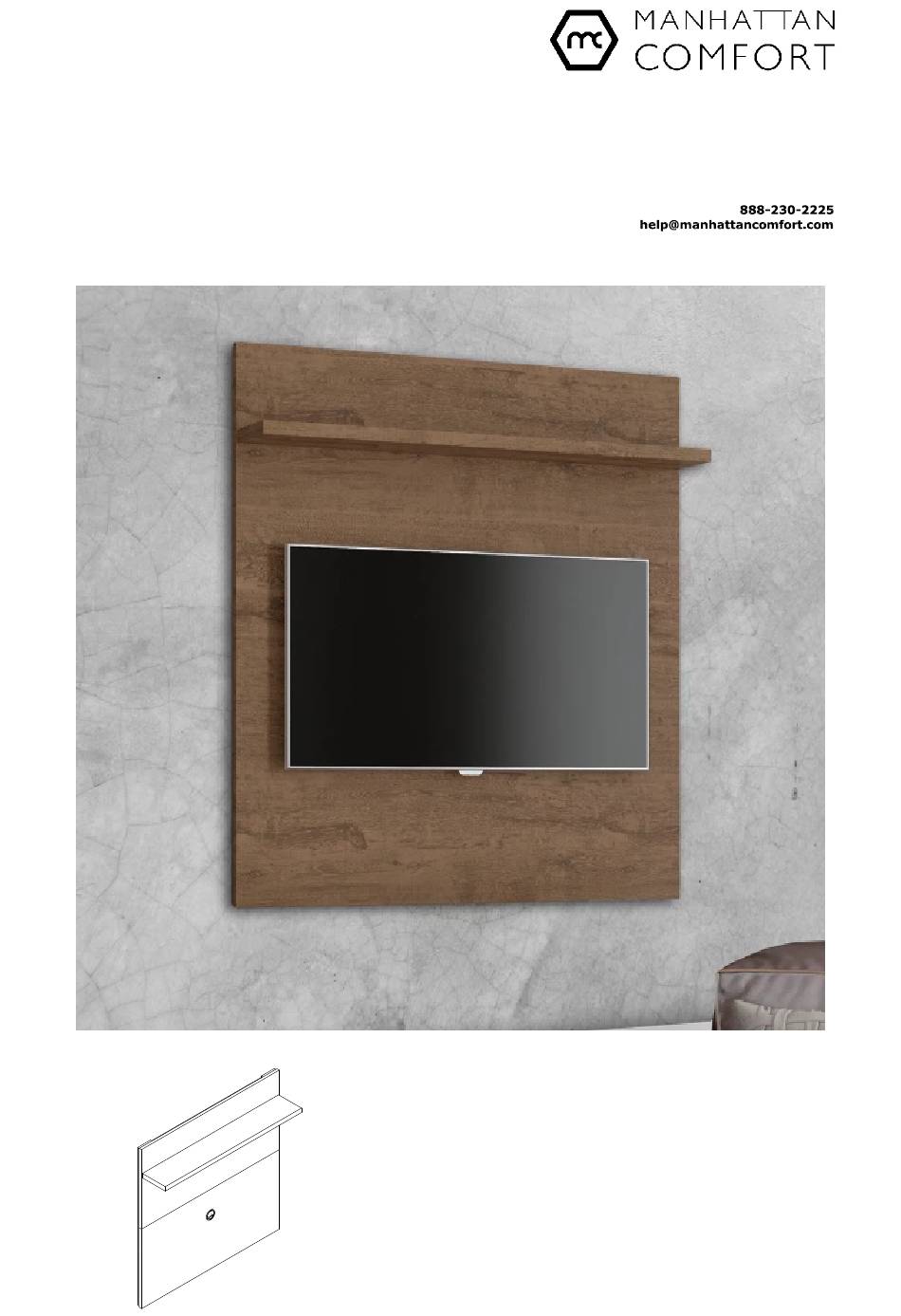

- Page 1 Tribeca TV Panel 35.43...
- Page 2 Before starting Prepare the room before starting the assembly, leaving it completely clean and the area in good condition to start the work. Use the cardboard of the packaging and the foam sheets protection to separate and support the parts removed from the boxes. Dimension: W: 35.43"...
- Page 3 FRONT VIEW REAR VIEW PART DESCRIPTION QUANTITY LOWER PANEL TOP PANEL PANEL SUPPORT BACK SUPPORT SHELF WALL SUPPORT HARDWARE...
- Page 4 STEP 1 C+4B - Insert hardware (H) into parts (01 and 02). - Join the panels (01 and 02) correctly aligning the edges, avoiding gaps between the parts and connect them with the steel plate (C) and bolts B. STEP 2 USE GLUE (E) ON THE FACE CONTACT OF THE PIECE (03) BEFORE FIXING AT THE PANEL (02).
- Page 5 STEP 4 - Connect the shelf (05) in the top panel (02) with the bolts (G) and dowels (H). - Insert the plastic part (D) in the panel (01). STEP 5 With a pencil and measuring tape mark the height to fasten the part (06) on the wall.
- Page 6 STEP 7 Toggle bolt screw Fasten the part (06) on the wall and keep the 45° degree cut to up side. STEP 8 - Verifying all the supports you are ready to hang your TV panel on the wall.
