5.3 PLAYFIELD ASSEMBLIES, TOP

9
7
14
2
1
4

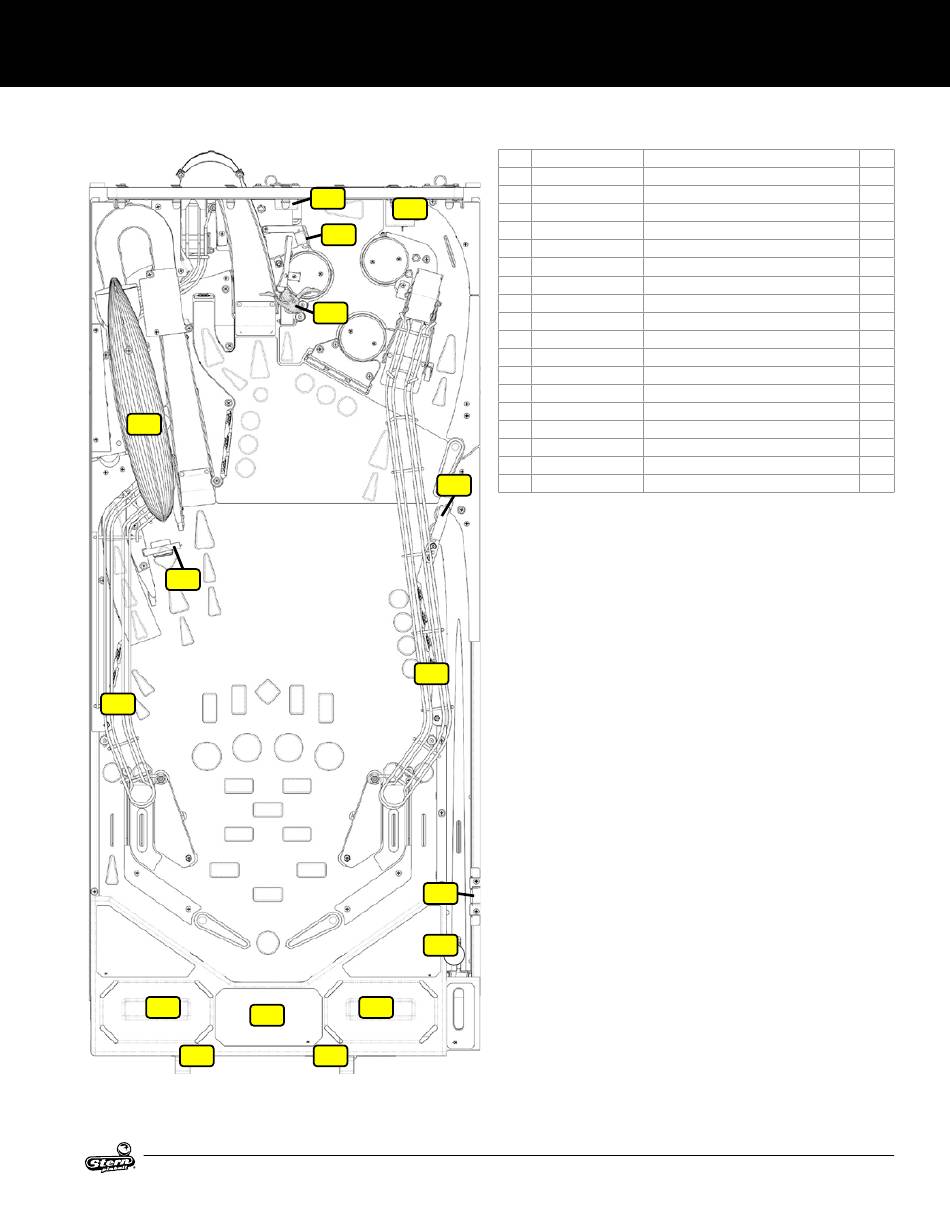

Figure 5.3.1. Major playfield assemblies, Top locations.
©2020 Mythgem, LTD.
12
13
11
10
8
15
6
5
3
4
LED ZEPPELIN PRO MANUAL 500-55R5-01
ID Part Number Description
1 500-2533-R5 Bottom Arch Assembly
2 755-51R5-12-Y Instruction Card
3 755-7665-00 SPI Card
4 535-8385-00 Welded Hanger Bracket
5 260-5000-00 Pinballs
6 500-6815-00 Bubble Level Assembly
7 535-1591-00 Spinner Bracket
515-7088-00 Spinner Target
8 535-2436-00 One Way Gate Bracket
535-2437-00 One Way Gate Wire
9 880-6250-00 Zeppelin
10 880-6249-00 Icarus
11 535-2335-00 One Way Gate Bracket
535-2336-00 One Way Gate Wire
12 550-5031-02 Red Mini Mars
13 511-2961-01 Electric Gate Assembly
14 515-2212-01 Left Wireform Ramp
15 515-2213-01 Right Wireform Ramp
PARTS REFERENCE
Qty
1
1
1
2
6
1
1
1
1
1
1
1
1
1
1
1
1
1
