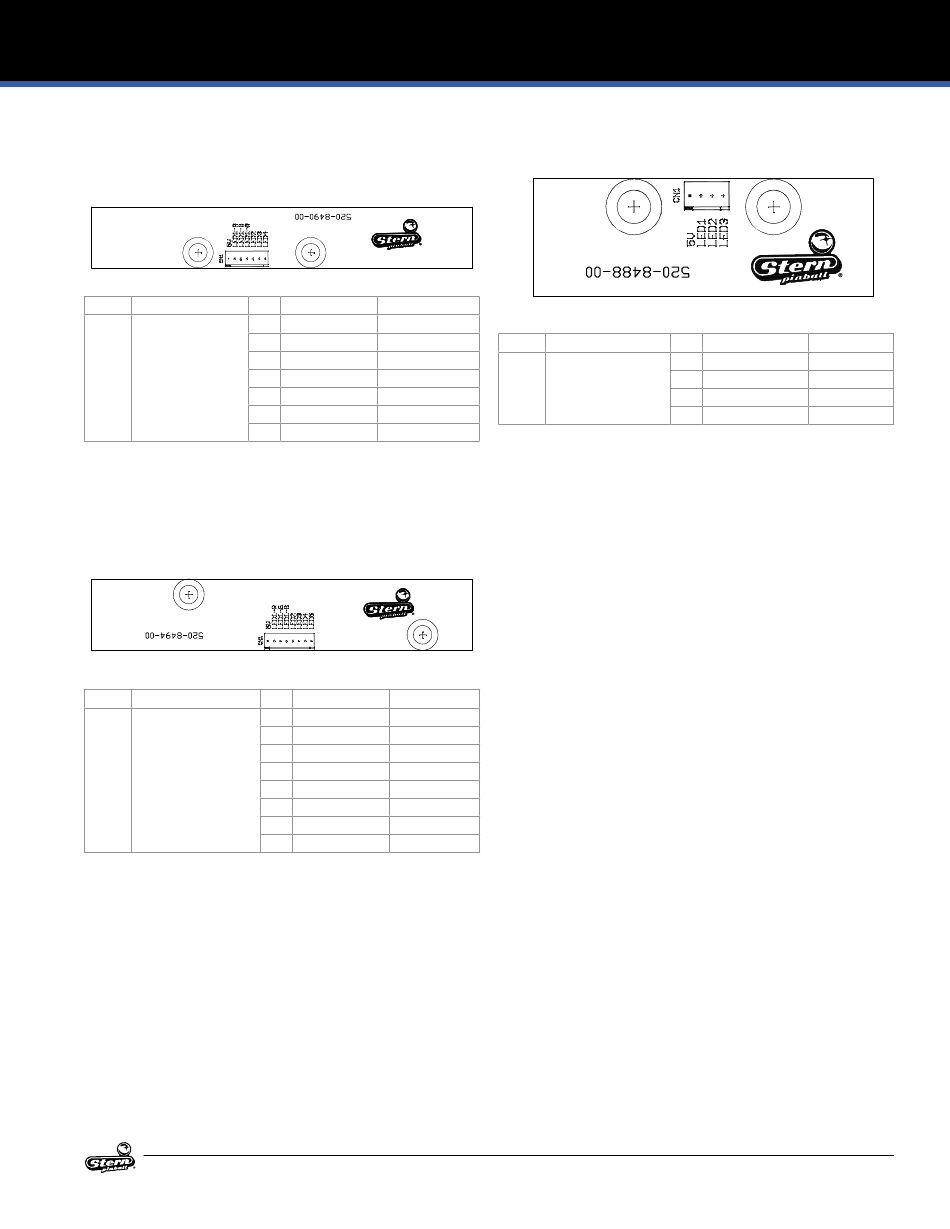

4.8 CENTER FAR LEFT LED
BOARD 9A1
520-8490-00
ID Type Pin
CN1 .100" 7-Pin Header 1
2
3
4
5
6
7

4.9 UPPER LEFT LED BOARD 9A2

520-8494-00
ID Type
CN1 .100" 8-Pin Header
©2020 Mythgem, LTD.
Description Wire Color
+5 VDC RED
LED 1-R RED-VIO
LED 1-G GRN-VIO
LED 1-B BLU-VIO
LED 2 GRN-WHT
LED 3 GRN
LED 4 GRN-RED
Pin Description Wire Color
1 +5 VDC RED
2 LED 1-R RED-YEL
3 LED 1-G GRN-YEL
4 LED 1-B BLU-YEL
5 LED 2 ORG-YEL
6 LED 3 ORG-GRN
7 LED 4 ORG-BLU
8 LED 5 ORG-VIO
LED ZEPPELIN PRO MANUAL 500-55R5-01
ELECTRONIC PINOUTS AND SCHEMATICS

4.10 CENTER LOWER LED BOARD 9A3

520-8488-00
ID Type Pin
CN1 .100" 4-Pin Header 1
2
3
4
Description Wire Color
+5 VDC RED
LED 1 BRN-ORG
LED 2 BRN-YEL
LED 3 BRN-GRN
