Center Left Led Board 9A - Stern Pinball LED ZEPPELIN PRO Service And Operation Manual

ELECTRONIC PINOUTS AND SCHEMATICS

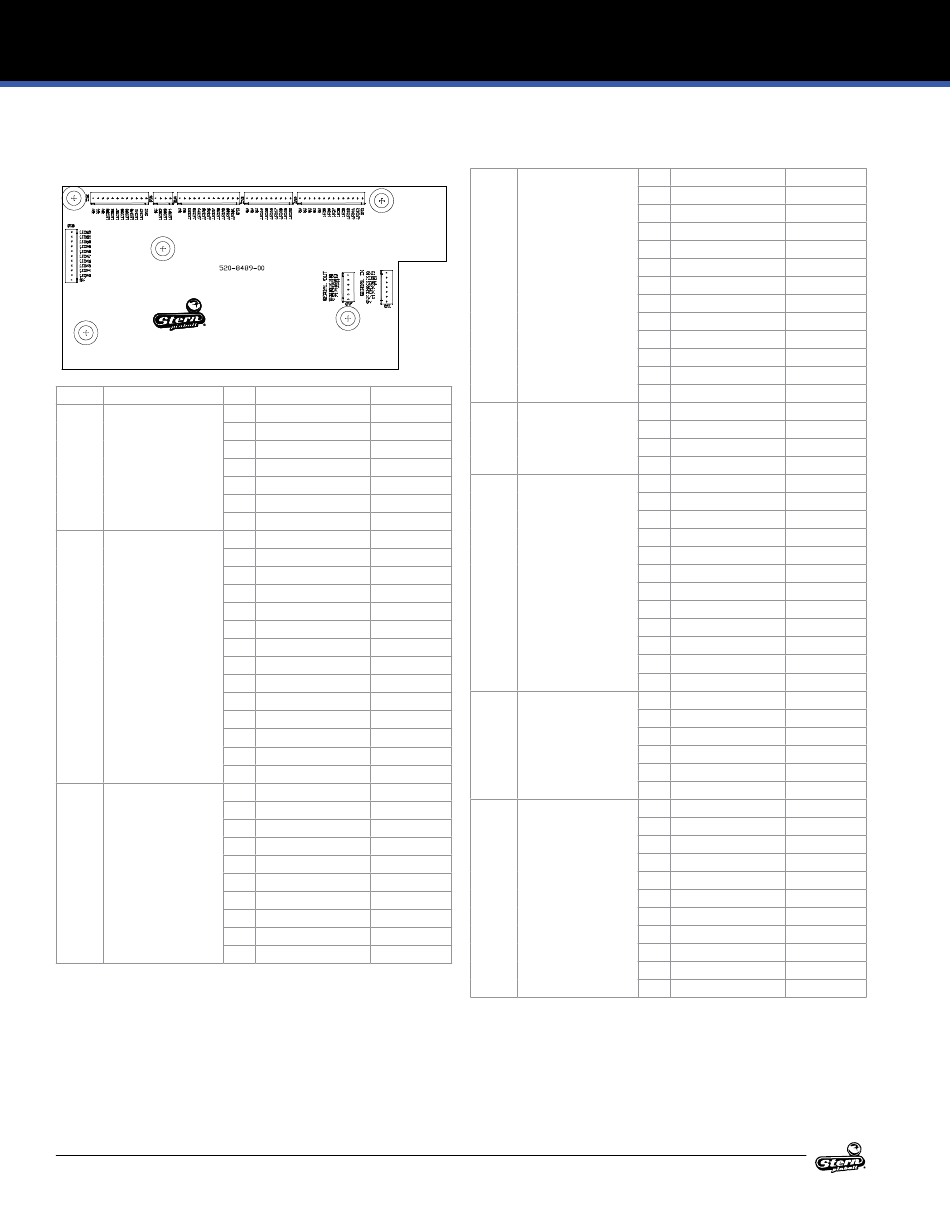

4.7 CENTER LEFT LED BOARD 9A

520-8489-00
ID Type Pin
CN1 .100" 7-Pin Header 1
2
3
4
5
6
7
CN2 .100" 14-Pin Header 1
2
3
4
5
6
7
8
9
10
11
12
13
14
CN3 .100" 10-Pin Header 1
2
3
4
5
6
7
8
9
10
38
Description Wire Color
Ground BLK
MISO Output Data VIO-BLK
MOSI Input Data VIO-BRN
SCK Serial Clock VIO-RED
RCK Register Clock VIO-ORG
NC -
+5 VDC IN RED
+5 VDC RED
+5 VDC RED
+5 VDC RED
+5 VDC -
+5 VDC -
LED 5 RED-BRN
LED 6 GRN-BRN
LED 7 BLU-BRN
LED 8 RED-ORG
LED 9 GRN-ORG
LED 10 BLU-ORG
LED 11 ORG-BRN
LED 12 ORG-RED
GND -
+5 VDC RED
+5 VDC -
+5 VDC -
LED 14 RED-YEL
LED 15 GRN-YEL
LED 16 BLU-YEL
LED 17 ORG-YEL
LED 18 ORG-GRN
LED 19 ORG-BLU
LED 20 ORG-VIO
LED ZEPPELIN PRO MANUAL 500-55R5-01
CN4 .100" 13-Pin Header 1
2
3
4
5
6
7
8
9
10
11
12
13
CN5 .100" 4-Pin Header 1
2
3
4
CN6 .100" 12-Pin Header 1
2
3
4
5
6
7
8
9
10
11
12
CN7 .100" 6-Pin Header 1
2
3
4
5
6
CN8 .100" 11-Pin Header 1
2
3
4
5
6
7
8
9
10
11
+5 VDC RED
+5 VDC -
LED 22 GRN-RED
LED 23 GRN
LED 24 GRN-WHT
LED 25 RED-VIO
LED 26 GRN-VIO
LED 27 BLU-VIO
LED 28 -
LED 29 -
LED 30 -
LED 31 -
GND -
+5 VDC RED
LED 32 BRN-ORG
LED 33 BRN-YEL
LED 34 BRN-GRN
+5 VDC RED
+5 VDC RED
+5 VDC RED
LED 35 RED-GRY
LED 36 GRN-GRY
LED 37 BLU-GRY
LED 38 BRN-BLU
LED 39 BRN-VIO
LED 40 BRN-BLK
LED 41 BRN
LED 42 BRN-RED
GND -
Ground -
MISO Output Data -
MOSI Input Data -
SCK Serial Clock -
RCK Register Clock -
V+ -
+5 VDC RED
LED 43 YEL-BRN
LED 44 YEL-RED
LED 45 YEL-ORG
LED 46 YEL-GRN
LED 47 YEL-BLU
LED 48 YEL-VIO
LED 49 YEL-GRY
LED 50 YEL-WHT
LED 51 YEL
LED 52 ORG-BLK
