PARTS REFERENCE

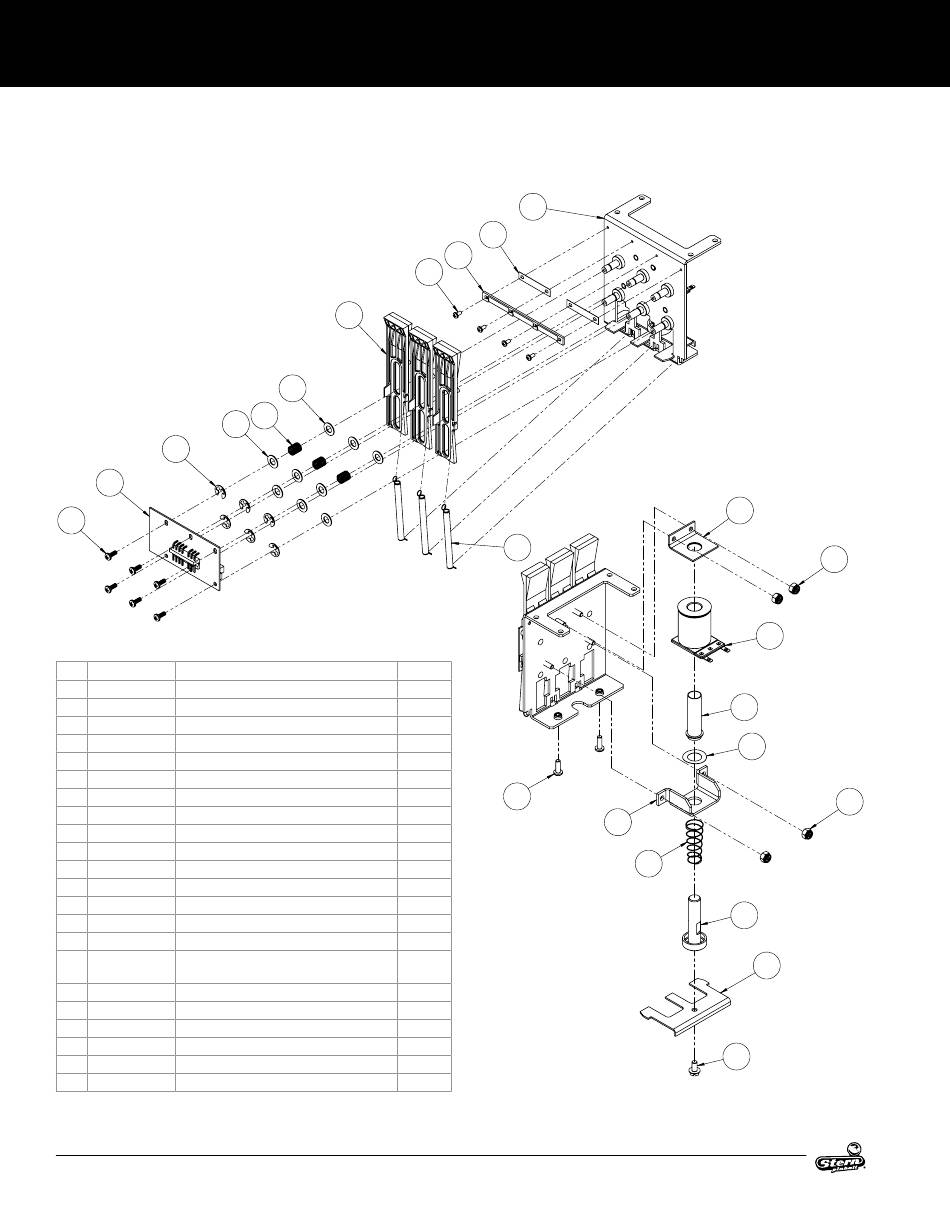

5.19 3-BANK DROP TARGET
ASSEMBLY
500-1110-03-XX
2
8
16
5
ID Part Number Description
1 545-6163-03 LEDGE, 3-BANK DROP TARGET
2 242-5091-00 WASHER, 1/2 X 17/64 X .03 - DT
3 266-5089-00 SPRING COMPRESSION - DT
4 545-6305-XX TARGET - ROLLOVER
5 237-5501-00 SCREW, 6-32 X 3/8" PPH MS ZINC
6 240-5102-00 8-32 NYLON LOCK NUT
7 269-5002-00 SPRING WASHER
8 270-5002-00 RETAINING RING - 1/4"
9 266-5020-00 COMPRESSION SPRING-CONICAL
10 265-5003-02 TARGET RESET SPRING
11 535-9959-00 STOP BRKT
12 237-5602-00 SCREW, 8-32 X 1/2" PPH MS ZINC
13 237-6169-00 SCREW, 4-40 X 1/4 PPH MS
14 530-5757-00 PLUNGER - D.T. ASSY.
15 545-5076-01 COIL SLEEVE
16 520-5252-13 3 BANK DROP TARGET PCB-OPTO, W/
RIGHT ANGLE CONN
17 090-5034-ND COIL 25-1240 - NO DIODE
18 515-9927-03 DROP TARGET FRAME ASSY - 3-BANK
19 535-9996-03 LIFT BRACKET - 3 BANK
20 535-9995-01 COIL BRACKET
21 237-5985-00 SCREW, 10-32 X 3/8" HWH SWAGE
22 545-6798-00 SHIM - FICHE PAPER - D.T. SINGLE
FULL SCALE
52
13
4
2
3
SCALE 1:2
Qty
1
9
3
3
6
ITEM # QTY PART #
4
1 1 545-6163-03 LEDGE, 3-BANK DROP TARGET
2 9 242-5091-00 WASHER, 1/2 X 17/64 X .03 - DT
1
3 3 266-5089-00 SPRING COMPRESSION - DT
6
4 3 545-6305-XX TARGET - ROLLOVER
1
5 6 237-5501-00 SCREW, 6-32 X 3/8" PPH MS ZINC
6 4 240-5102-00 8-32 NYLON LOCK NUT
3
7 1 269-5002-00 SPRING WASHER
1
8 6 270-5002-00 RETAINING RING - 1/4"
2
9 1 266-5020-00 COMPRESSION SPRING-CONICAL
10 3 265-5003-02 TARGET RESET SPRING
4
11 1 535-9959-00 STOP BRKT
1
12 2 237-5602-00 SCREW, 8-32 X 1/2" PPH MS ZINC
13 4 237-6169-00 SCREW, 4-40 X 1/4 PPH MS 1
14 1 530-5757-00 PLUNGER - D.T. ASSY.
1
15 1 545-5076-01 COIL SLEEVE
16 1 520-5252-13 3 BANK DROP TARGET PCB-OPTO, W/ RIGHT ANGLE CONN
1
17 1 090-5034-ND COIL 25-1240 - NO DIODE
18 1 515-9927-03 DROP TARGET FRAME ASSY - 3-BANK
1
19 1 535-9996-03 LIFT BRACKET - 3 BANK
1
20 1 535-9995-01 COIL BRACKET
21 1 237-5985-00 SCREW, 10-32 X 3/8" HWH SWAGE 1
22 2 545-6798-00 SHIM - FICHE PAPER - D.T. SINGLE
1
2
3 BANK DROP TARGET ASSEMBLY
LED ZEPPELIN PRO MANUAL 500-55R5-01
18
22
1
10
ASSEMBLY P/N TARGET P/N
500-1110-03-00 545-6305-00
500-1110-03-02 545-6305-02
500-1110-03-03 545-6305-03
500-1110-03-04 545-6305-04
500-1110-03-05 545-6305-05
500-1110-03-06 545-6305-06
500-1110-03-08 545-6305-08
NOTES:
1. -XX REFERS TO COLOR OF TARGET. SEE TABLE
FOR TARGET & ASSEMBLY PART NUMBERS.
DESCRIPTION
12
20
500-1110-03-XX
SCALE 1:2
11
TARGET COLOR
BLACK
RED
AMBER 17
GREEN
BLUE
YELLOW
WHITE
15
7
9
14
19
21
